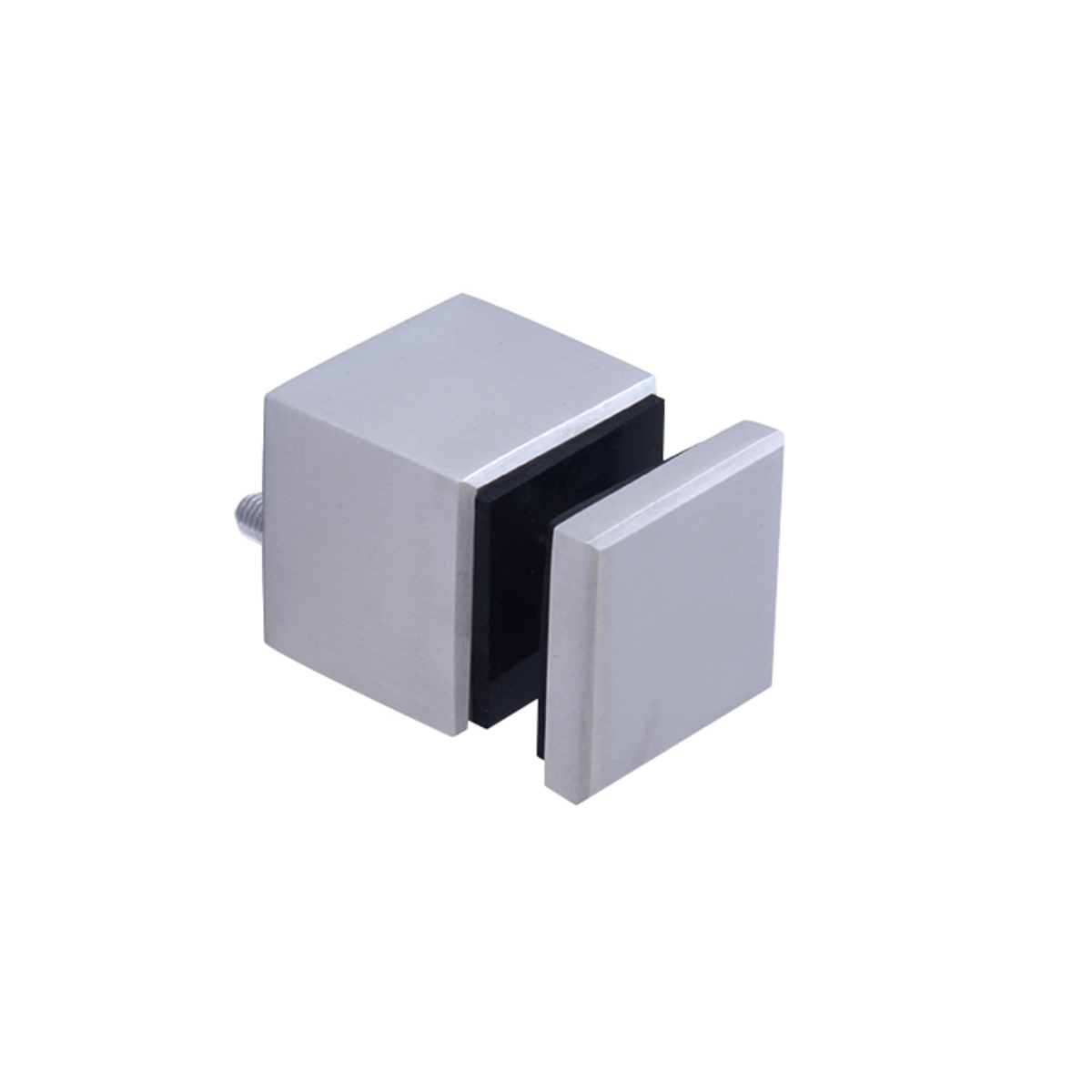

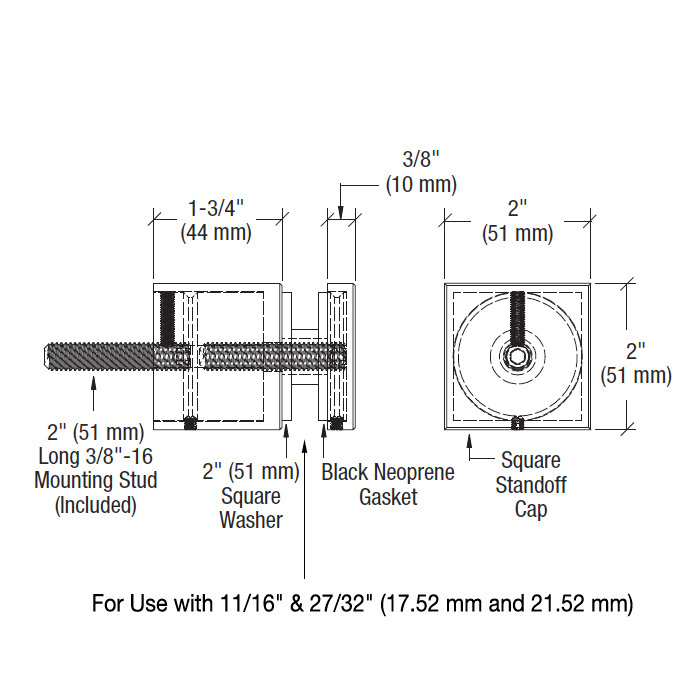

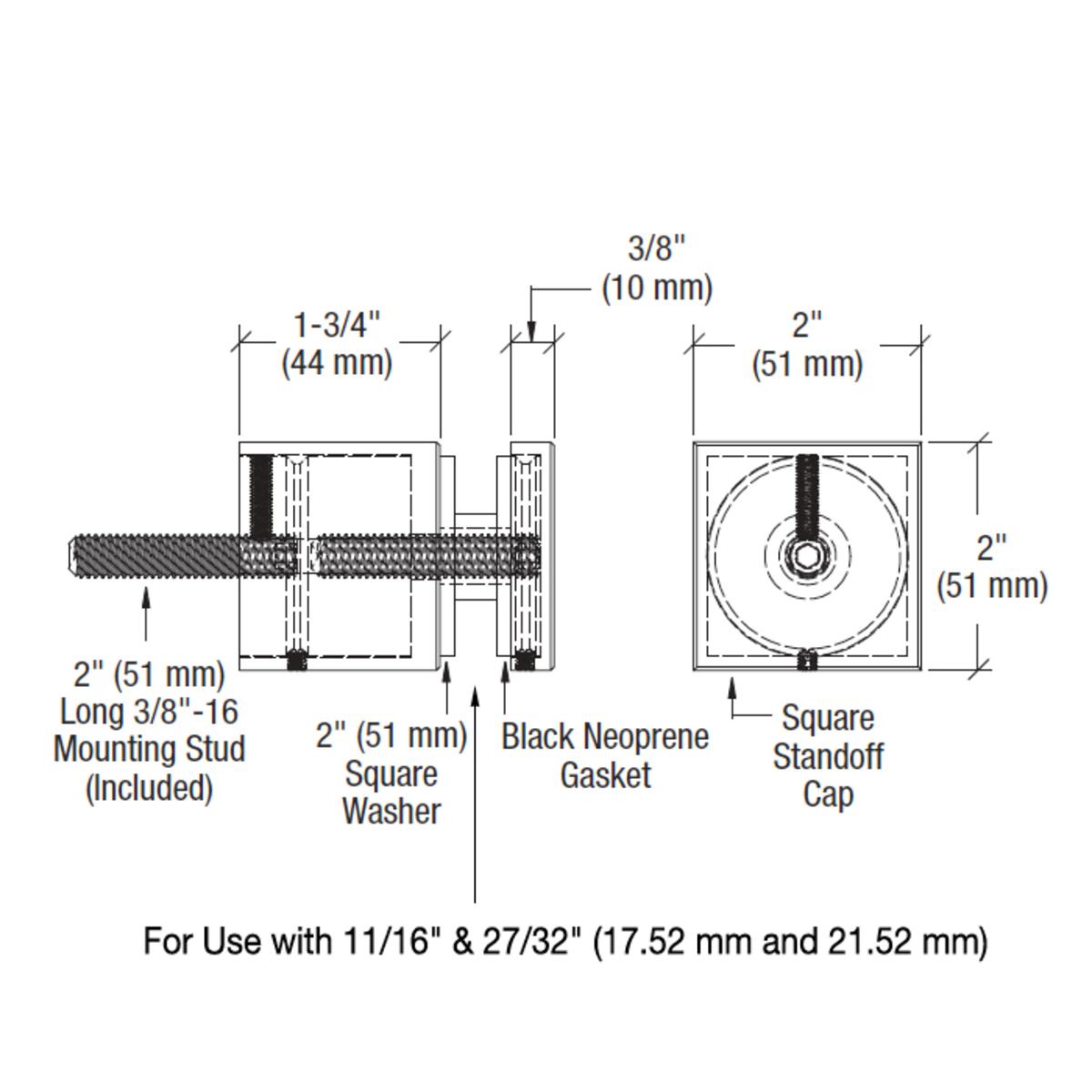

C.R. Laurence SS0B2134BS 316 Brushed Stainless Glass Rail Square Standoff Base and Cap offers a robust solution for your railing needs, combining functionality with sleek design. This standoff fitting measures 2" (51 mm) square and features a 1-3/4" (44.5 mm) base designed for mounting to steel, concrete, or wood substrates. Crafted from high-grade 316 stainless steel, it is available in a brushed finish, ensuring both durability and aesthetic appeal. This versatile standoff is compatible with both 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass, as well as laminated tempered glass with Kuraray SentryGlas® interlayer, ranging from 9/16" to 27/32" (13.52 to 21.52 mm) thicknesses. The installation process is straightforward, thanks to the included 3/8"-16 x 2" Allen stud and necessary gaskets and grommet. For optimal results, utilize the Cat. No. SSW12 Spanner Wrench to securely tighten the cap. When planning your installation, consider the minimum hole spacing of 4" (102 mm) between standoffs, and ensure compliance with the specified glass thickness requirements. Regular maintenance is recommended to preserve the stainless steel finish. This product is ideal for building professionals seeking reliable, high-quality railing solutions.
316 Brushed Stainless Glass Rail Square Standoff Base and Cap - 1-3/4" Projection
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Alloy: 316
Cap Height: 2 in. (51 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glass Included: No
Glazing Thickness: 1/2 in. & 3/4 in. (12 mm & 19 mm)
Length: 1-3/4 in. (44 mm)
Material: 316 Stainless Steel
Shipping Limitations: None
Width: 2 in. (51 mm)
