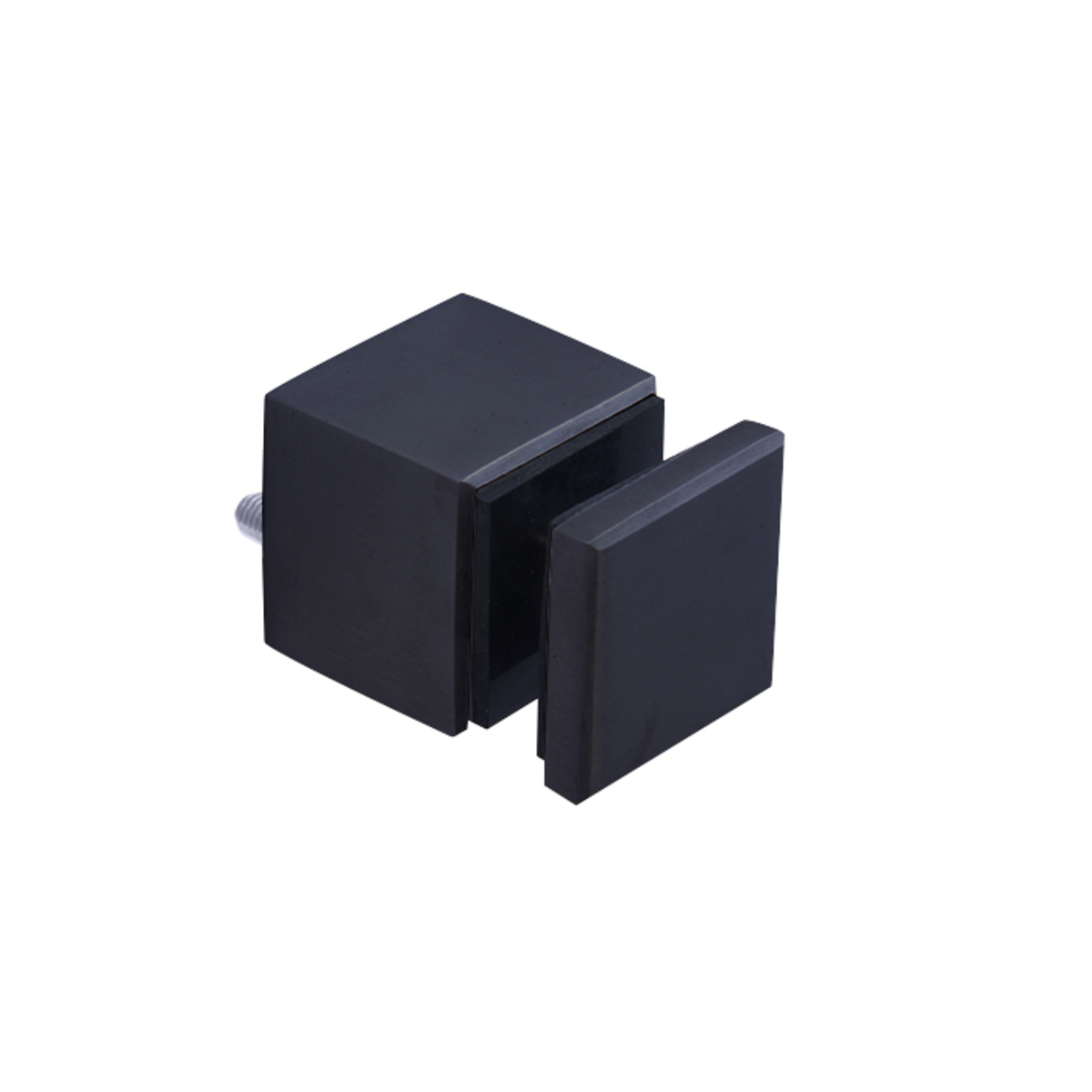

CRL SS0B2134MBL Matte Black Glass Rail Square Standoff Base Cap - 1.75" Projection

C.R. Laurence SS0B2134MBL Matte Black Glass Rail Square Standoff Base and Cap features a compact design that optimally supports hand and guard railings. With a robust 2" (51 mm) square structure and a 1-3/4" (44.5 mm) base, this standoff fitting is crafted from high-grade 316 stainless steel, ensuring long-lasting durability and resistance to corrosion. Ideal for various glass thicknesses, it accommodates 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or laminated glass, specifically when using the Kuraray SentryGlas® interlayer. Installation is straightforward, thanks to the included 3/8"-16 x 2" Allen stud, which enables secure mounting on steel, concrete, or wood substrates. The necessary gaskets and grommet are also included to ensure a seamless setup. For optimal tightening of the cap, use the CRL Cat. No. SSW12 Spanner Wrench. This standoff fitting not only enhances the aesthetic appeal of glass rail systems with its sleek matte black finish but also adheres to stringent safety requirements, making it a reliable choice for both residential and commercial applications. Please note that it should not be used with raw or annealed glass.

Matte Black Glass Rail Square Standoff Base and Cap - 1-3/4" Projection

• Compact Design with Base, Cap, and Mounting Stud for Mounting to Steel, Concrete, or Wood Substrate
• For Use With 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
• High Grade 316 Stainless Steel

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• SRS Glass Balustrade Engineering Report 03-24-2021
• SRS Standoff Railing System CAD Drawings.dwg
• SRS Standoff Railing System CAD Drawings.pdf
