CRL SS30 1-3/16" Stainless Steel StandoffC.R. Laurence SS30 1-3/16" Diameter Stainless Steel Standoff offers a sophisticated solution for mounting glass panels in architectural applications. This durable assembly is engineered to secure monolithic tempered glass to walls, brackets, or columns, creating a stunning frameless appearance that enhances any space. The standoff is crafted from 304 Grade Stainless Steel and features a high-tech brushed finish, ensuring both aesthetic appeal and longevity. Designed for panels ranging from 1/4" to 1/2" thick, the SS30 can accommodate a maximum panel size of 39" x 79" (990 mm x 2.01 m) with a weight limit of 55 lbs. (25 kg) per attachment point. Installation requires a 5/8" (16 mm) drilled hole, with the cap assembly secured to the standoff base using the Cat. No. SW30 Spanner Wrench. The assembly includes all essential components: a 1/4" thick cap, a 3/8" thick base, an M8 metric threaded Allen screw, two vinyl washers, and a vinyl sleeve. While the stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Note that the SS30 Standoff is not compatible with other CRL Standoff Systems, ensuring a tailored fit for your installation needs.
1-3/16" Diameter Stainless Steel Standoff
- Used to Mount Glass Panels to Walls, Brackets or Columns
- Durable High Tech Finish
- Use Monolithic Tempered Glass
This
CRL Stainless Steel Standoff Assembly is very popular in architectural applications to secure a lite of glass to a threaded metal bracket or column without the use of a frame. The glass is fabricated with the required holes, and then secured with the Standoff to create a frameless appearance. The Cat. No. SW30 Spanner Wrench is used to secure the Cap Assembly to the Standoff Base.
The 304 Grade Stainless Steel Standoff is designed to be used with panels ranging in thickness from 1/4" to 1/2" (6 to 12.7 mm). The maximum recommended panel size for 1/2" (12 mm) glass is 39" x 79" (990 mm x 2.01 m), with a maximum weight per attachment point of 55 lbs. (25 kg). A 5/8" (16 mm) drilled hole is required for installation.
NOTE: The SS30 Standoff is not compatible with other CRL Standoff Systems.

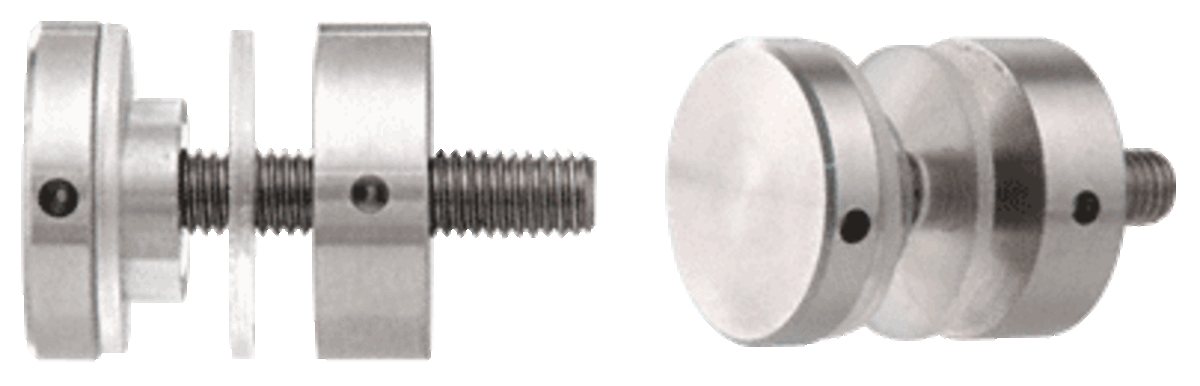

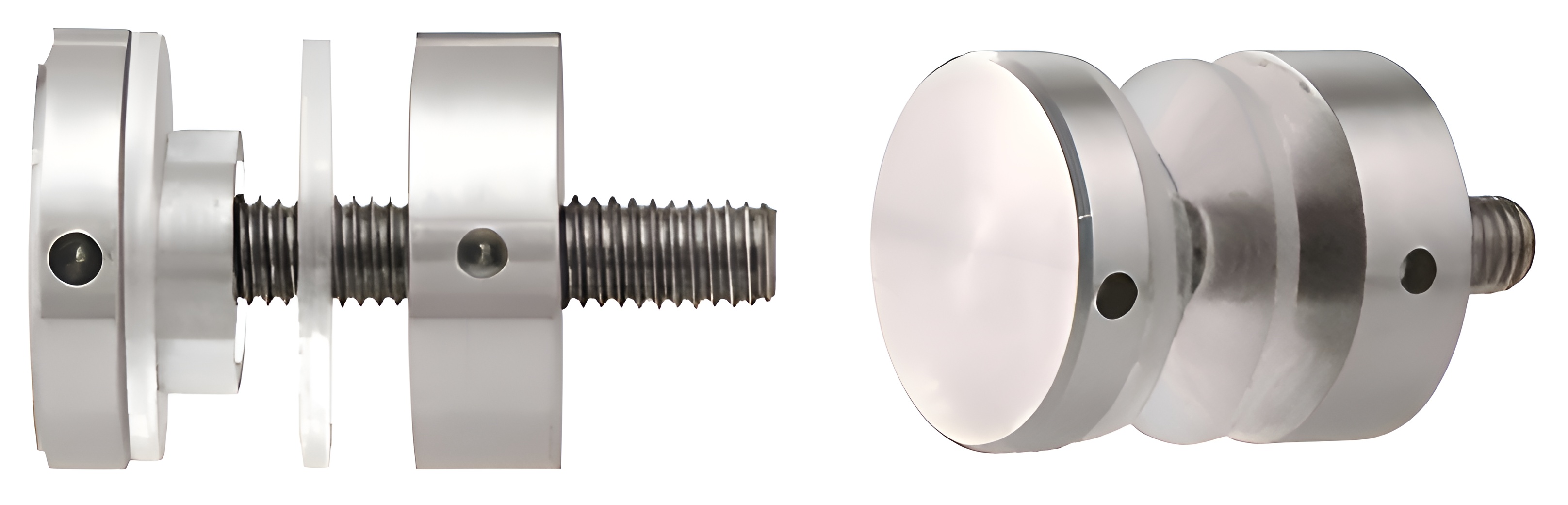

The SS30 Standoff Assembly Consists of:
1 Cap - 1/4" (6 mm) Thick
1 Base - 3/8" (10 mm) Thick
1 Allen Screw - M8 Metric Thread x 1-3/4" (44 mm) Long
2 Vinyl Washers - 1-3/16" (30 mm) Diameter
1 Vinyl Sleeve - 3/16" (5 mm) Long
Product Warning:
Subject to strength of attaching substrate and glass deflection. Use additional attachment points as required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-3/16 in. (30.2 mm)
Finish/ Color:: Brushed Stainless Steel
Material: Stainless Steel
Shipping Limitations: None
Thickness: 3/8 in. (9.5 mm)
