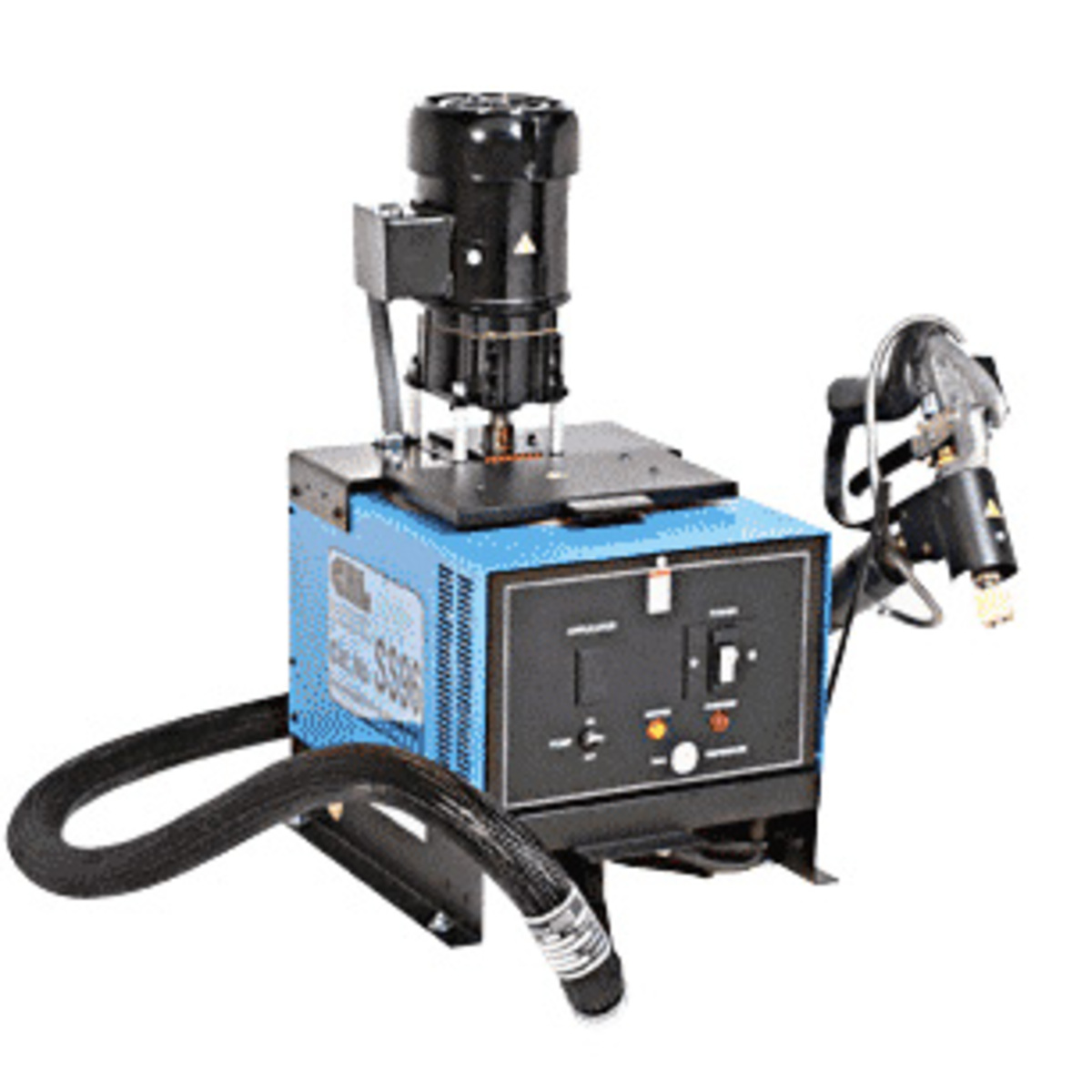

CRL SS96 Butyl Hot Melt Gunning SystemC.R. Laurence SS96 Hot Melt Butyl Gunning System is a compact and highly efficient machine designed specifically for insulating glass fabrication. This system dispenses CRL30703 Hot Melt Butyl cakes, ensuring a seamless application process. Featuring a robust 10 lbs. (4.53 kg) tank capacity, it operates effectively within a temperature range of 100°F to 425°F, allowing for versatile use. The SS96 model includes an 8-foot flexible hose with variable temperature control ranging from 350°F to 450°F, paired with a lightweight heated handgun that features swivel and trigger lock action for enhanced maneuverability. Notably, this unit operates quietly without the need for compressed air, leading to less downtime and low maintenance due to its minimal moving parts. With a melt rate of 8 lbs. (3.6 kg) per hour and a maximum pump output rate of 40 lbs. (18.1 kg) per hour, the SS96 is designed for high efficiency. It requires a warm-up time of 45 to 60 minutes and operates on 115 VAC, 60 Hz power with a wattage of 1265 Watts. Safety is paramount, so be sure to read the owner's manual and heed all warnings regarding the high temperatures involved during operation.
Hot Melt Butyl Gunning System
- An Efficient Machine for Insulating Glass Fabrication
- Dispenses CRL30703 Hot Melt Butyl Cakes
- Includes 8' (2.4 m) Flexible Hose and Handgun
- Our Most Popular Model
The
CRL Hot Melt Butyl Gunning System is compact and versatile. Its unique pumping action eliminates entrapped air in the sealant. The pump has a 10 lbs. (4.53 kg) tank capacity with a temperature range from 100°F to 425°F. CRL Hot Melt Butyl can be added while gunning. An Eight-Foot Flexible Hose with variable 350° to 450°F temperature control is coupled with a lightweight, heated, hand gun which features a swivel and trigger lock action. The Cat. No. SS96 does not use compressed air, and operates quietly. The mechanical and electrical systems contain few moving parts, resulting in less down time and low maintenance operation.
ELECTRICAL
Voltage - 115 VAC, 60 Hz with ground
240V Models Available on Special Order
Wattage - 1265 Watts
Motor Rating - 1/6 hp, gearbox
38 rpm output
Warm-Up Time - 45 to 60 minutes
FUNCTIONAL
Melt Rate - 8 lbs. (3.6 kg)/hour
Pump Output Rate (Maximum) - 40 lbs. (18.1 kg)/hour
Tank Temperature Range - 100-425°F(37-217°C)
Tank Capacity – 10 Lb. (4.5 kg)
Gun/Hose Temperature Range - 350-450°F (177-232°C)
Shipping Weight - 120 lbs. (54 kg)
Product Warning:
Read the owner's manual and all manufacturer's warnings before using this machine. The material that is dispensed from this unit can be in excess of 400°F and can easily cause burns to the skin and eyes. Failure to take these precautions can result in operator injury.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Height: 23 in. (584 mm)
Hold Capacity: 10 Pounds (Tank)
Hose Length: 96 in. (2438 mm)
Length: 14 in. (356 mm)
Shipping Crate: 36 in. X 21 in. X 30 in. (914 mm X 533 mm X 762 mm)
Shipping Limitations: No UPS - Common Carrier Only
Temperature Range: 100-425°F (Tank)
Voltage: 115 VAC, 60 Hz With Ground
Watts: 1265
Width: 11-1/2 in. (292 mm)
