CRL SUP10BL Black Frameless Shower Door Fixed Panel Wall-to-Glass Support Bar for 3/8"-1/2" Glass

Your Price: $154.77

Retail Price:$185.28

Your Savings:$30.51(16%)

Secure your frameless shower glass with the CRL Black Support Bar, designed for 3/8" to 1/2" thick glass panels.

Part Number : CRL_SUP10BL

Availability: 104 In Stock

Quantity

Description

CRL SUP10BL Black Frameless Shower Door Fixed Panel Wall-to-Glass Support Bar for 3/8"-1/2" Glass

C.R. Laurence SUP10BL Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar is an essential solution for stabilizing fixed glass panels in shower enclosures that don’t reach the ceiling. Designed for use with monolithic tempered glass, this support bar offers an effective alternative to header kits, enhancing both safety and aesthetics. Constructed from a 3/4" (19 mm) diameter tubular brass bar with a sleek gloss black finish, it includes solid brass fittings that ensure durability and reliability. The bar can accommodate glass thicknesses ranging from 1/4" to 1/2" (6 mm to 12 mm), with nylon-tipped set screws that secure the glass while preventing metal-to-glass contact. This feature not only improves safety but also maintains the integrity of the glass surface. Available in a convenient 39" (991 mm) length, the support bar can be easily cut to fit specific configurations, and installation is a breeze with no hole drilling required. The product includes all necessary mounting hardware, making it suitable for both professional builders and savvy homeowners. Whether you choose the wall-to-glass or glass-to-glass model, the C.R. Laurence SUP10BL delivers a perfect blend of functionality and style for modern shower designs.

Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Use Monolithic Tempered Glass
Wall-to-Glass and Glass-to-Glass Models Available
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required
51" (1.3m) Options Available

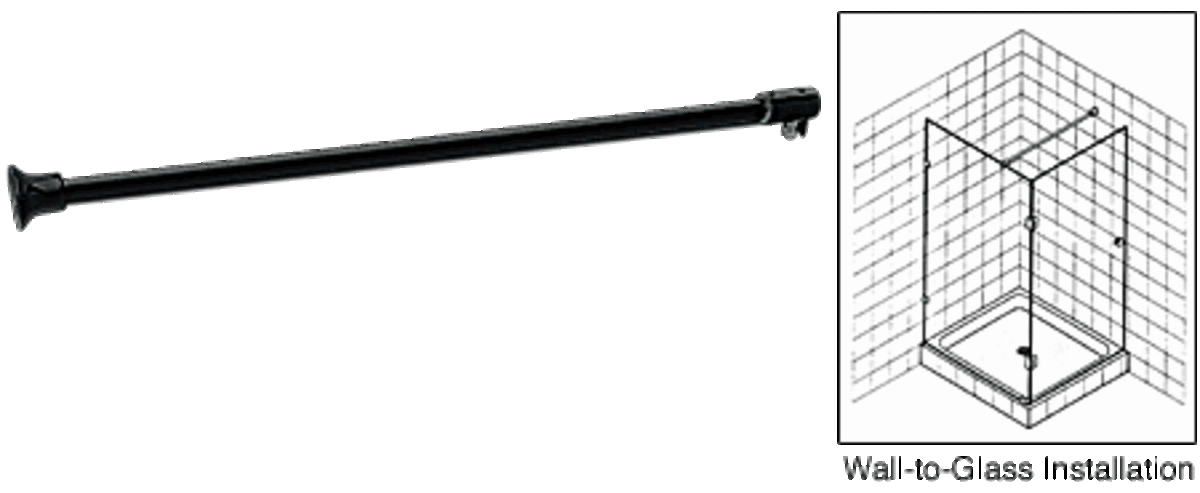

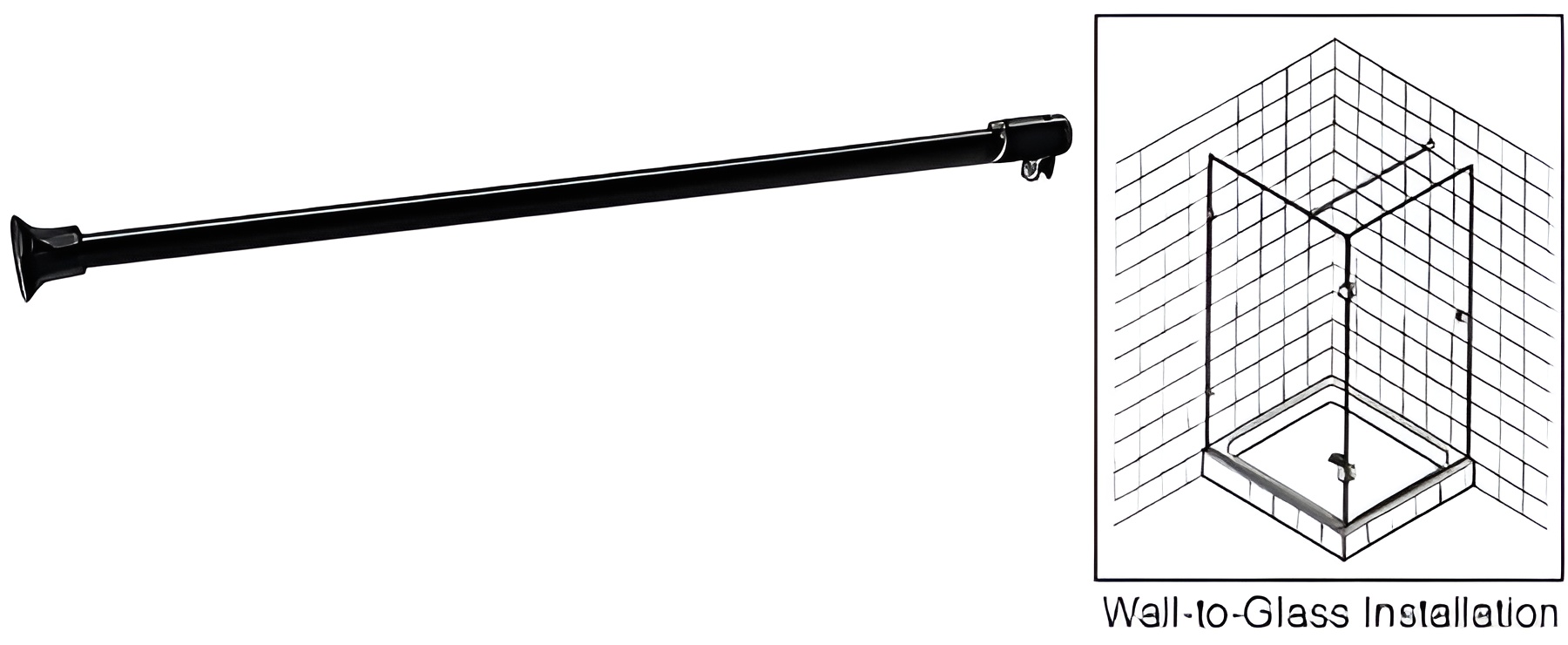

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.

SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
Bar Lengths: 39" (1 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All Required Mounting Hardware

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Construction: Tubular

Diameter: 3/4 in. (19 mm)

Finish/ Color:: Gloss Black

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Length: 39 in. (991 mm)

Material: Brass

Shipping Limitations: None
