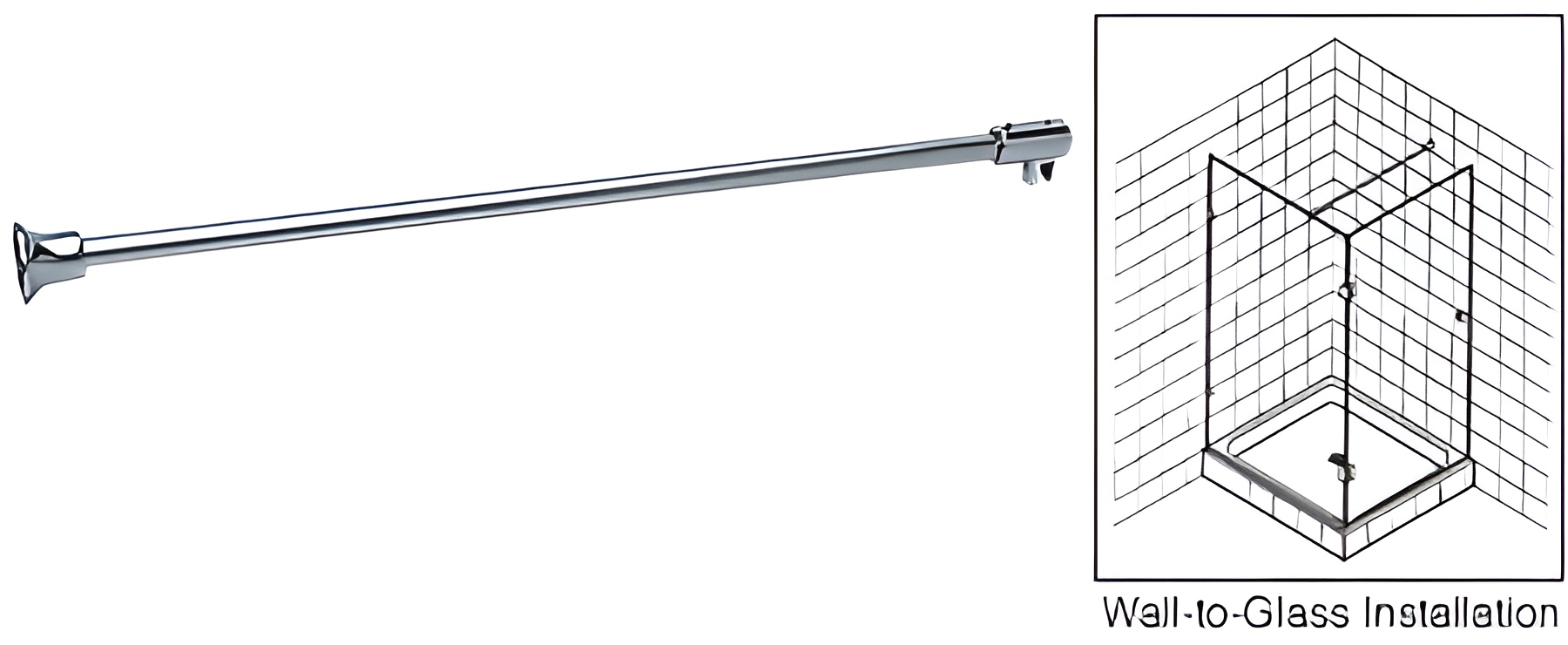

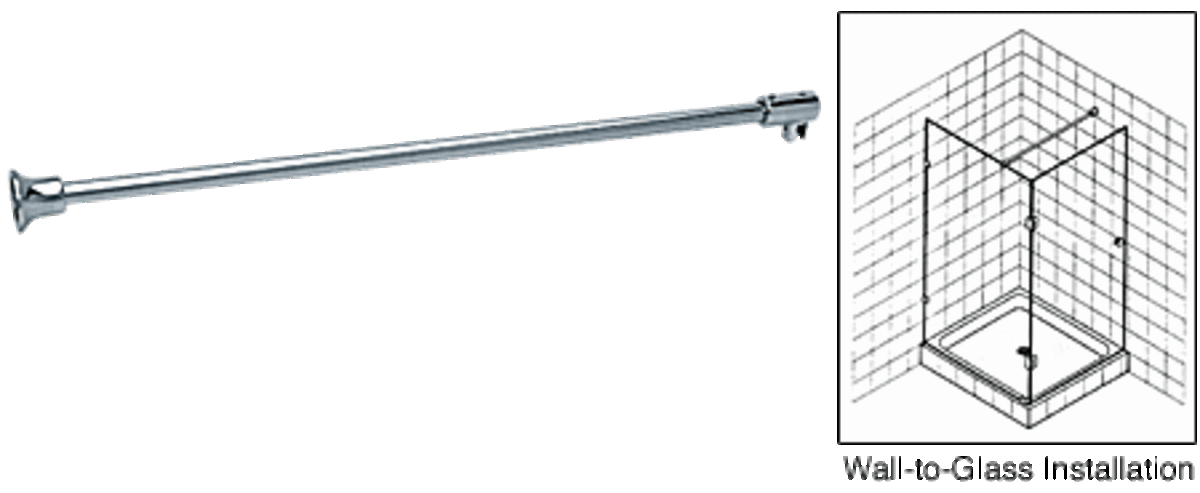

CRL SUP10CH Polished Chrome Frameless Shower Door Fixed Wall-to-Glass Support Bar

Your Price: $130.63

Retail Price:$156.38

Your Savings:$25.75(16%)

Secure your frameless shower glass with the CRL Polished Chrome Support Bar, designed for 3/8" to 1/2" thick glass.

Part Number : CRL_SUP10CH

Availability: 325 In Stock

Quantity

Description

CRL SUP10CH Polished Chrome Frameless Shower Door Fixed Wall-to-Glass Support Bar

C.R. Laurence SUP10CH Polished Chrome Frameless Shower Door Fixed Panel Wall-to-Glass Support Bar is an essential component for stabilizing fixed glass panels in frameless shower enclosures. Designed for use with monolithic tempered glass, this support bar offers a sleek and modern aesthetic while ensuring safety and stability without the need for header kits. Constructed from durable 3/4" (19 mm) diameter tubular brass, the support bar includes solid brass fittings that provide robust security for glass thicknesses ranging from 1/4" to 1/2" (6 to 12 mm). The wall-to-glass model features a bell-shaped clamping device on the wall side and a swiveling U-shaped receptacle to effectively secure the fixed glass panel. Notably, no hole drilling is required in the glass, simplifying installation and enhancing the integrity of your enclosure. Available in a convenient 39" (991 mm) length, the SUP10CH can be easily cut to accommodate specific configurations, making it a versatile solution for various installations. With a polished chrome finish, it effortlessly matches with C.R. Laurence hinges, knobs, and handles, ensuring a cohesive look throughout your design. Each unit includes all required mounting hardware for a hassle-free setup.

Polished Chrome Frameless Shower Door Fixed Panel Wall-to-Glass Support Bar for 3/8" to 1/2" Thick Glass

May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Use Monolithic Tempered Glass
Wall-to-Glass and Glass-to-Glass Models Available
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required
51" (1.3m) Options Available

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.

SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
Bar Lengths: 39" (1 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All Required Mounting Hardware

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Construction: Tubular

Diameter: 3/4 in. (19 mm)

Finish/ Color:: Polished Chrome

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Length: 39 in. (991 mm)

Material: Brass

Shipping Limitations: None
