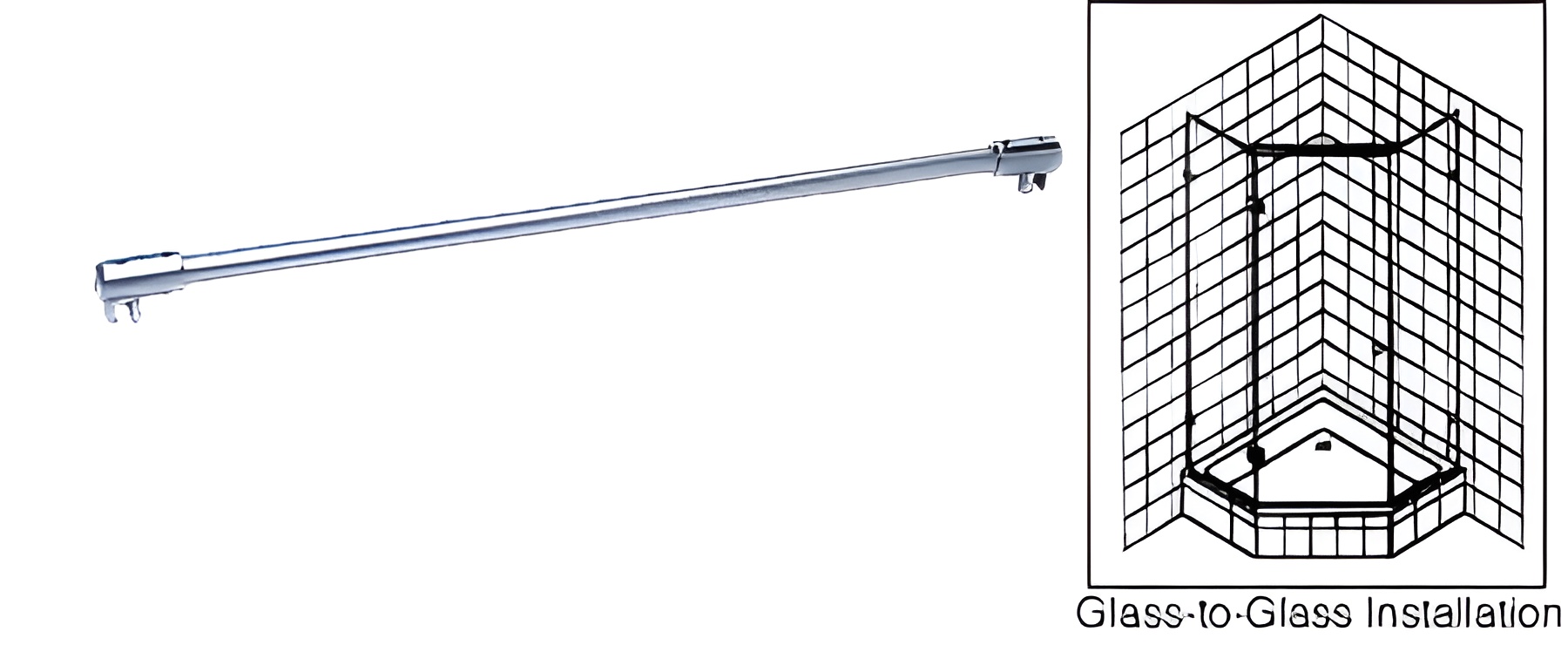

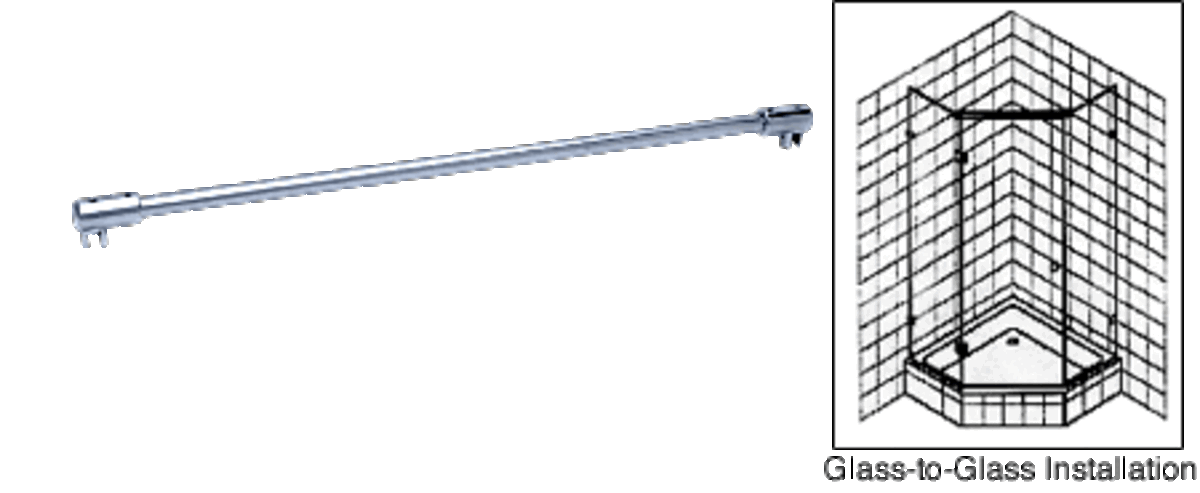

CRL SUP20CH Polished Chrome 39" Sleeve-Over Glass Support Bar for 3/8" to 1/2" Glass

C.R. Laurence SUP20CH Polished Chrome 39" Sleeve-Over Glass-To-Glass Support Bar is an essential solution for stabilizing fixed glass panels in enclosures that do not extend to the ceiling. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) thick monolithic tempered glass, this support bar serves as a reliable alternative to traditional header kits, enhancing safety and structural integrity. Constructed from a robust 3/4" (19 mm) diameter tubular brass, the SUP20CH features solid brass end caps with swiveling U-shaped receptacles that securely hold each fixed glass panel. It employs nylon-tipped set screws to prevent glass-to-metal contact, ensuring a safe and stable installation. The bar can be easily cut to size, eliminating the need for hole drilling in the glass, making it a versatile choice for various configurations. Available in lengths of 39" (1 m) and 51" (1.3 m), this support bar matches beautifully with other C.R. Laurence finishes, complementing hinges, knobs, and pull handles. Each package includes all necessary mounting hardware, simplifying the installation process. Elevate your glass enclosure projects with the dependable quality and sleek polished chrome finish of the C.R. Laurence SUP20CH.

Polished Chrome 39" Sleeve-Over Glass-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

• For 3/8" to 1/2" (10 to 12 mm) Glass
• May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
• Use Monolithic Tempered Glass
• Wall-to-Glass and Glass-to-Glass Models Available for 1/4" to 1/2" (6 to 12 mm) Glass
• Simply Cut to Size to Accommodate Individual Configurations
• No Hole Drilling Required

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.
