CRL TD91552L1 U.S. Aluminum White KYNAR 900 Terrace Door, Left Swing Hinged

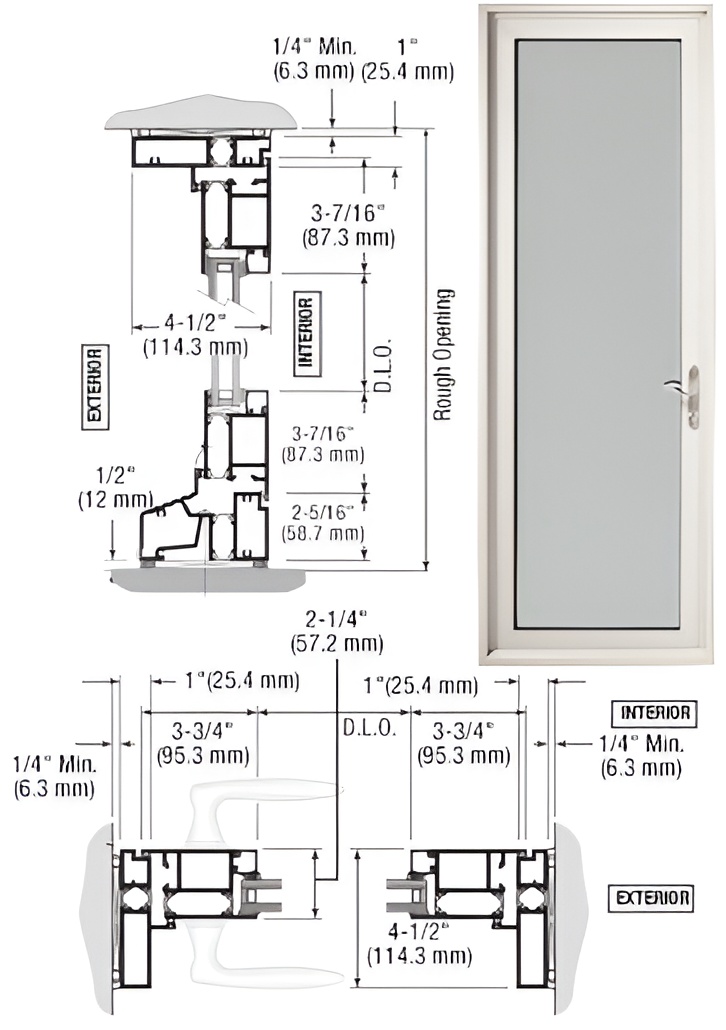

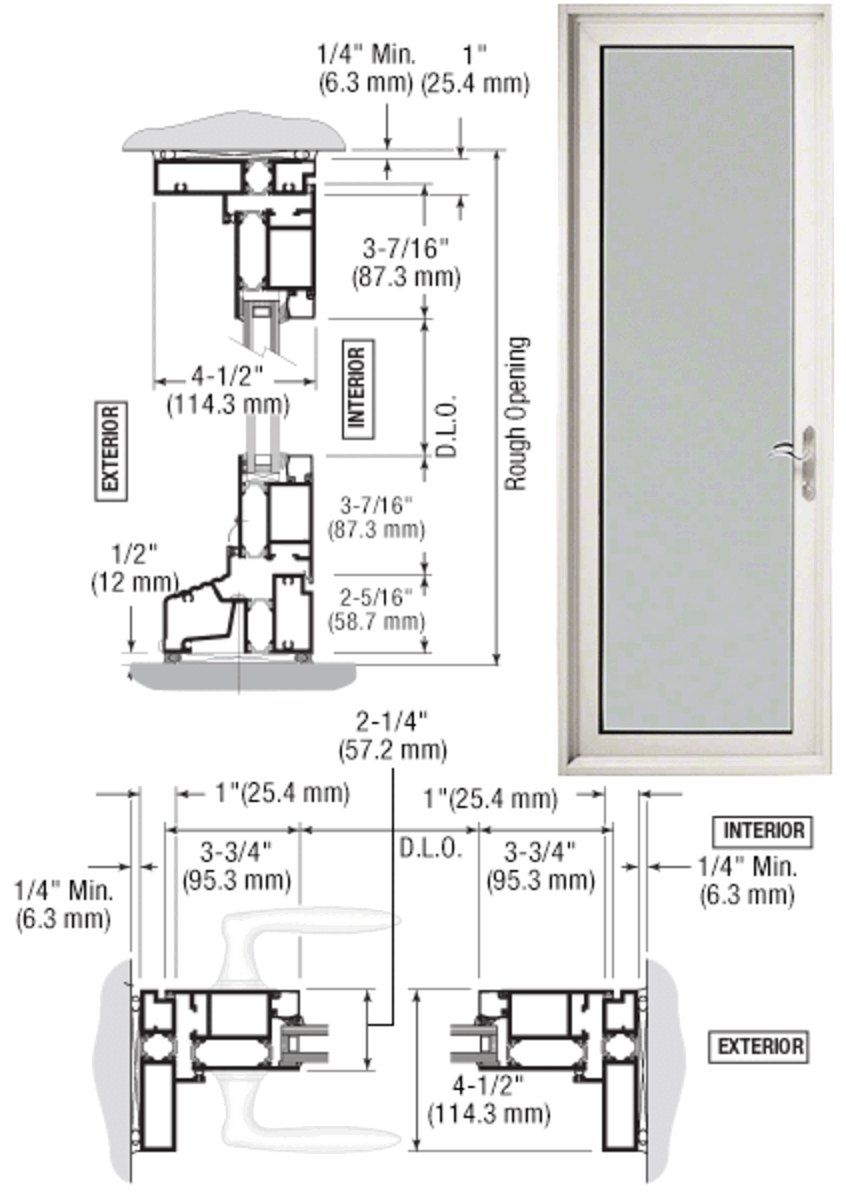

CRL TD91552L1 - U.S. Aluminum White KYNAR Paint Series 900 Terrace Door Hinged Left Swing In offers a robust and stylish entrance solution for your building needs. Designed with durability in mind, this terrace door features a 1" x 4-1/2" frame and a 2-1/4" thick door, ensuring stability and strength. The door is equipped with thumbturn interior locking and a blank exterior, allowing for a clean, modern look while providing security. Constructed to accommodate 1" insulated glass, the door includes glazing stops for easy installation of tempered glass. The five knuckle hinges, featuring non-removable pins, provide reliable functionality with three hinges per leaf, ensuring smooth operation and enhanced security. This door and frame are shipped assembled, streamlining the installation process. Finished in White Kynar, the door not only looks great but also offers weather resistance and longevity. Compliance considerations include a warning for reproductive harm, as noted on www.p65warnings.ca.gov. For shipping, please note that this product ships via common carrier only, as UPS is not an option. Elevate your entranceway with the exceptional quality and performance of the CRL TD91552L1 terrace door, designed for both professionals and discerning homeowners.

-U.S. Aluminum White KYNAR Paint Series 900 Terrace Door Hinged Left Swing In

• Thumbturn Interior - Blank Exterior
• Glazing Stops 1" Insulated Glass
• 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins
• Door and Frame Shipped Assembled
• Five Knuckle Hinges Three Per Leaf
