CRL TD92211P0 Custom Series 900 Class II Clear Anodized Swing-Out Terrace Door Pair

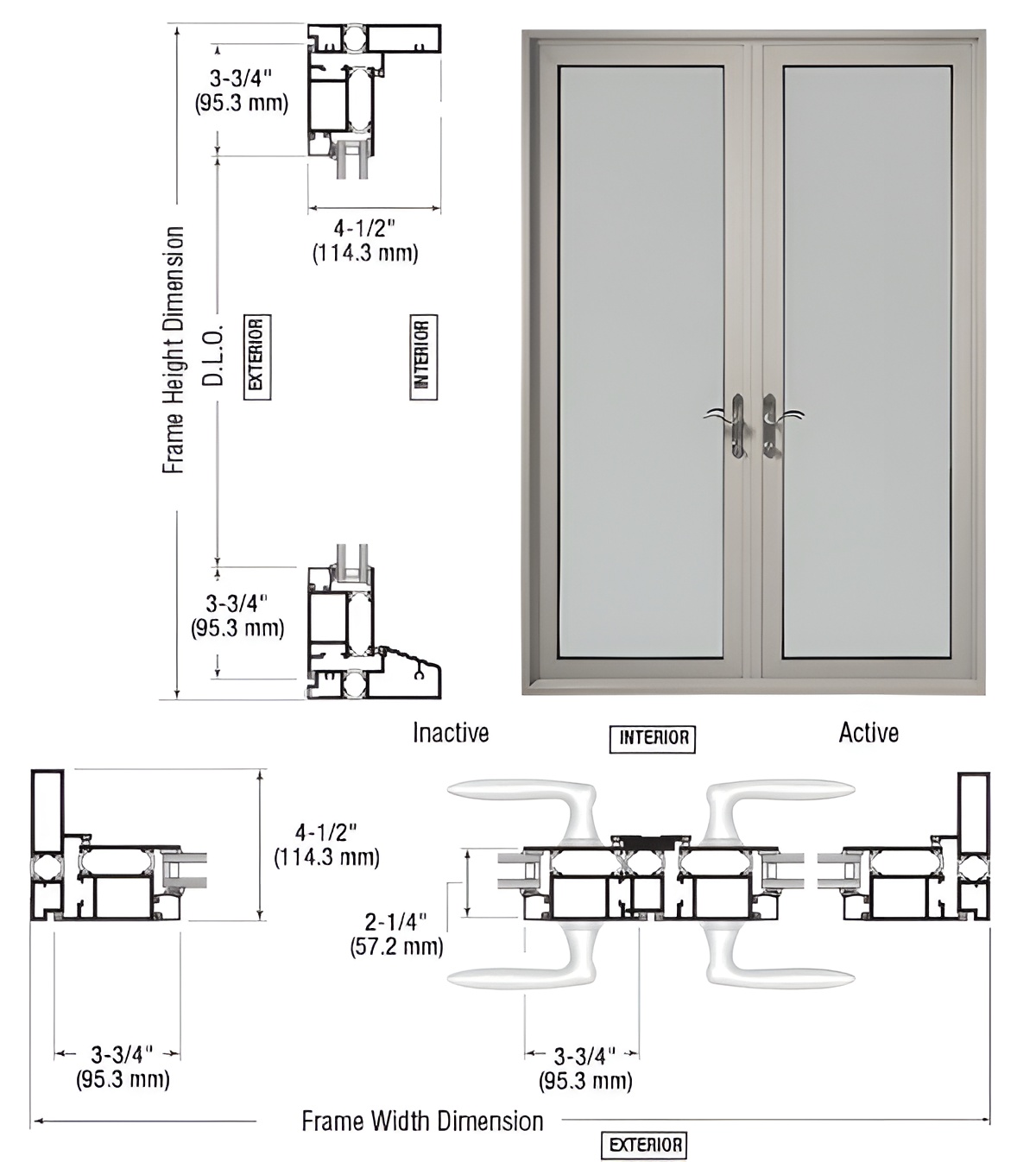

CRL TD92211P0 Custom Series 900 Class II Clear Anodized Swing Out Terrace Door Pair is designed to meet the demands of high-traffic environments while offering superior weather resistance. Constructed with a thermally broken 1" x 4-1/2" (25 x 114 mm) frame, this door features a robust medium stile at 2-1/4" (57 mm) thick and 3-3/4" (95 mm) stiles, ensuring durability and stability. This swing-out terrace door pair accommodates 1" (25 mm) insulating glass, enhancing thermal performance and energy efficiency. The adjustable pivot hinge allows for easy installation and operation, providing flexibility for in-swing or out-swing configurations. Withstanding heavy traffic and varying weather conditions, it is an ideal choice for both residential and commercial applications. Equipped with a five-point locking device, security and peace of mind are guaranteed. The standard matching finish aluminum threshold not only adds aesthetic appeal but also complements the door's clear anodized Class 1 finish. For those looking to expand their design options, matching sidelites and fixed lites are also available. Note that shipping is via common carrier only, and interested buyers should verify shipping costs with CRL Customer Service prior to ordering.

Custom Series 900 Class ll Clear Anodized Swing Out Terrace Door Pair with 3-3/4" Bottom Rail and Standard Threshold

• High Performance AW-PG 55-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Thermally Broken In-Swing or Out-Swing Pairs
• Adjustable Pivot Hinge
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available with Matching Sidelites and Fixed Lites
