CRL TD92211P1 U.S. Aluminum Clear Anodized Series 900 Terrace Doors - Pair Swing In

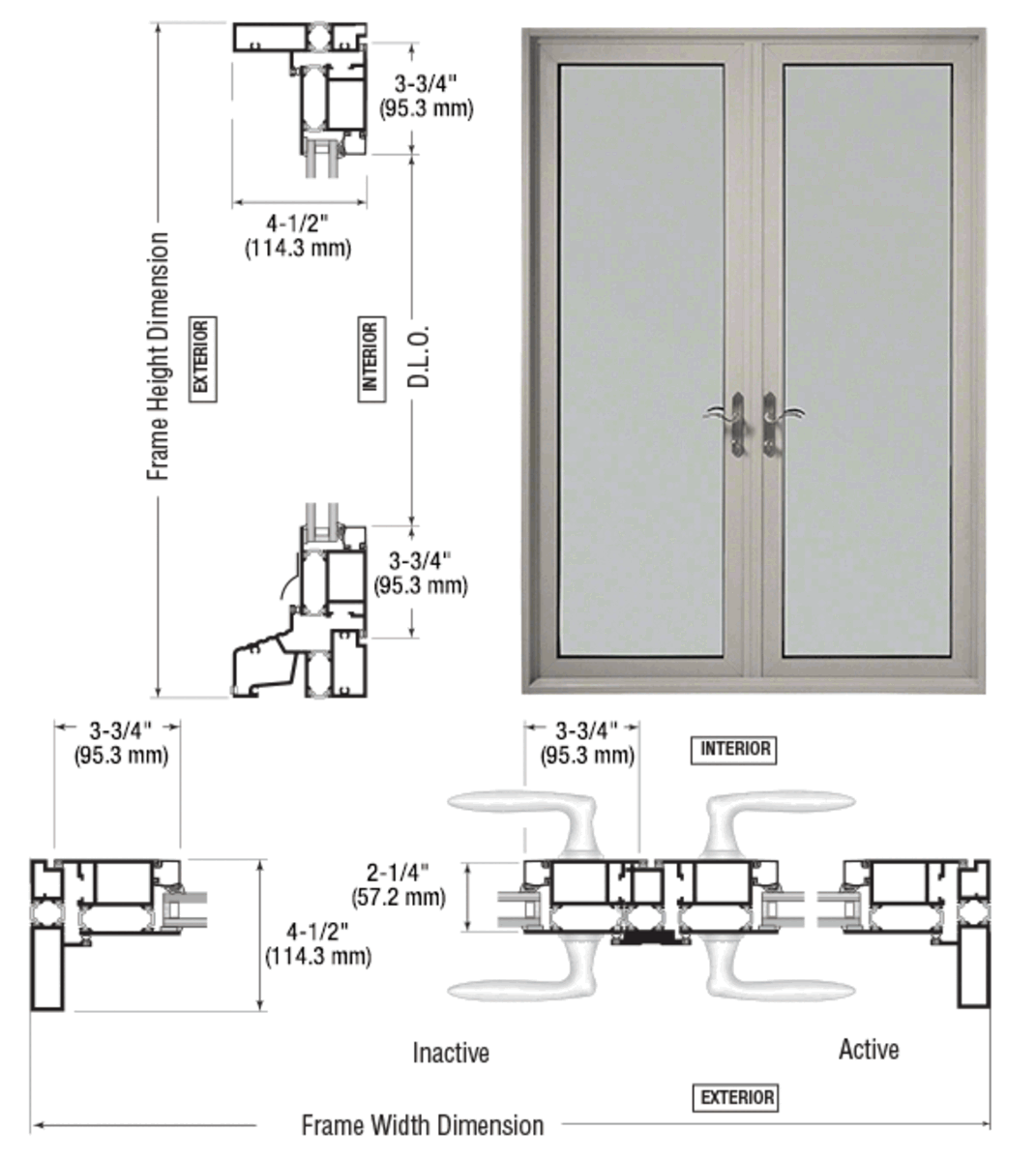

CRL TD92211P1 - U.S. Aluminum Clear Anodized Series 900 Terrace Doors deliver an exceptional combination of style and functionality for any modern entrance. Designed with a thermally broken construction, these doors accept 1" (25 mm) insulating glazing, ensuring superior thermal efficiency and comfort in your space. Rated AW-PG40 ATD for high performance, they are ideal for both residential and commercial applications. The robust design features a 1" x 4-1/2" x 85" (25 mm x 2133 mm x 3.05 m) up/over frame and a 2-1/4" (57 mm) thick door, complemented by elegant 3-3/4" (95 mm) medium stiles. The inclusion of adjustable pivot hinges allows for easy installation and ensures smooth operation, while the standard five-point locking device enhances security. A matching aluminum threshold adds a polished finishing touch. Available in a clear anodized Class 1 finish, these doors not only look great but are built to withstand the elements. Please note, shipping is via common carrier only, as these doors are too large for UPS. Elevate your space with the durability and style of the CRL U.S. Aluminum Series 900 Terrace Door.

-U.S. Aluminum Clear Anodized Series 900 Terrace Doors With Up/Over Frame, 3-3/4" Bottom Rail, and Standard Threshold - Pair Swing In

• Thermally Broken Accepts 1" (25 mm) Insulating Glazing
• High Performance AW-PG40 ATD Rated
• Adjustable Pivot Hinges
• Out Swing Options are Available
