CRL TD92222P1 U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Doors - Pair

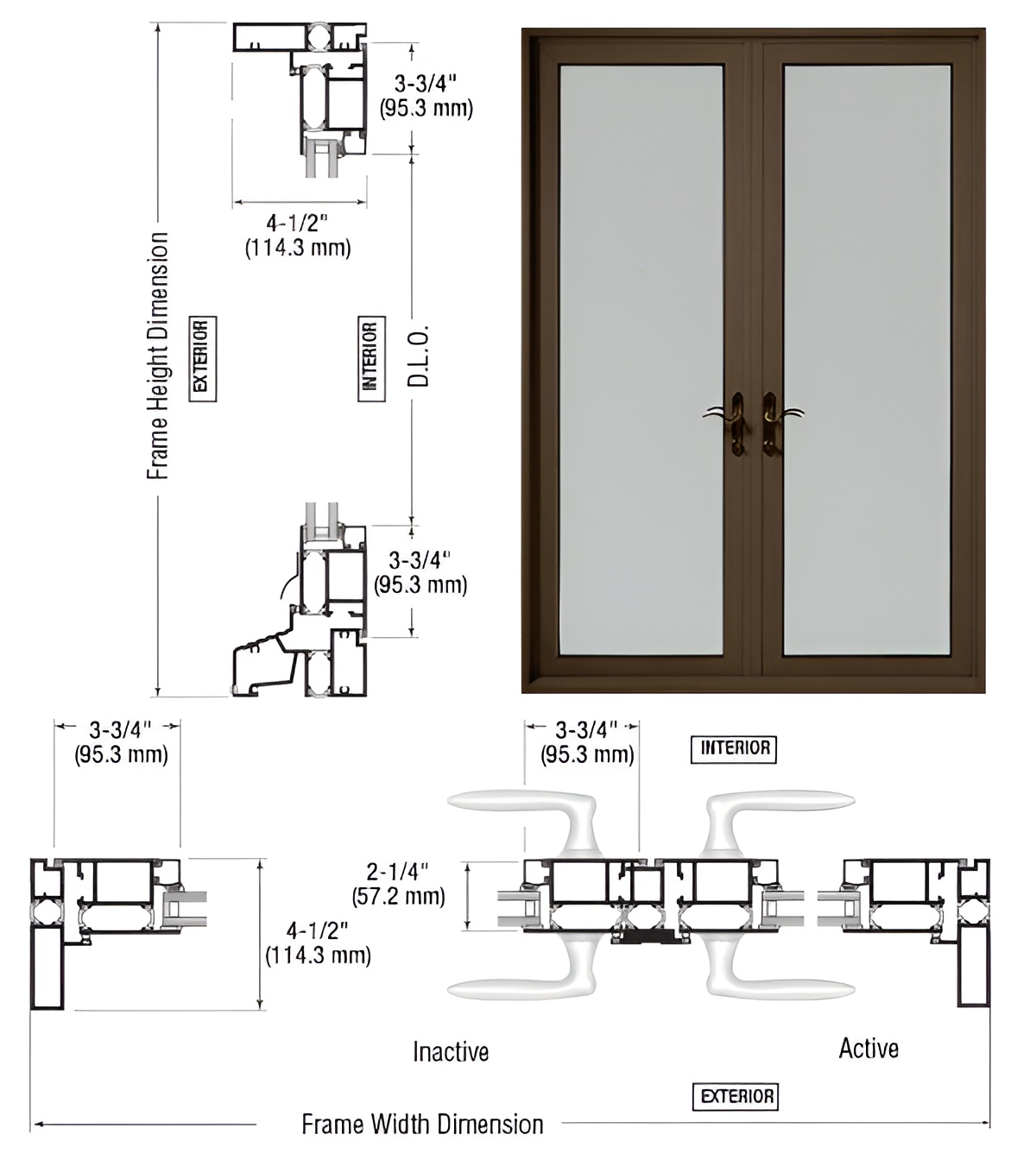

CRL TD92222P1 -U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Doors with Up/Over Frame offer a sophisticated and durable entrance solution for both residential and commercial applications. Designed with a thermally broken structure, these doors accept 1" (25 mm) insulating glazing, ensuring energy efficiency and comfort in any environment. The doors feature a robust 2-1/4" (57 mm) thick design with medium stiles measuring 3-3/4" (95 mm), providing both strength and style. Adjustable pivot hinges are included for easy installation and operation, while the 3-3/4" (95 mm) top and bottom rails enhance stability. With a high-performance AW-PG40 ATD rating, these terrace doors are engineered to withstand various weather conditions while maintaining their aesthetic appeal. Security is a priority with the inclusion of a five-point locking device, ensuring peace of mind. The standard threshold is finished in Black Bronze Anodized Class 1, seamlessly blending with modern architecture. Please note that these doors ship via common carrier only, and shipping weight estimates should be verified with customer service for accuracy. Upgrade your space with the CRL U.S. Aluminum Series 900 Terrace Doors, where functionality meets elegance.

-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Doors With Up/Over Frame, 3-3/4" Bottom Rail, and Standard Threshold - Pair Swing In

• Thermally Broken Accepts 1" (25 mm) Insulating Glazing
• Adjustable Pivot Hinges
• Out Swing Options are Available
• High Performance AW-PG40 ATD Rated

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
