CRL TD92252P0 Custom Series 900 White KYNAR Swing-Out Terrace Door Pair, 3-3/4" Rail

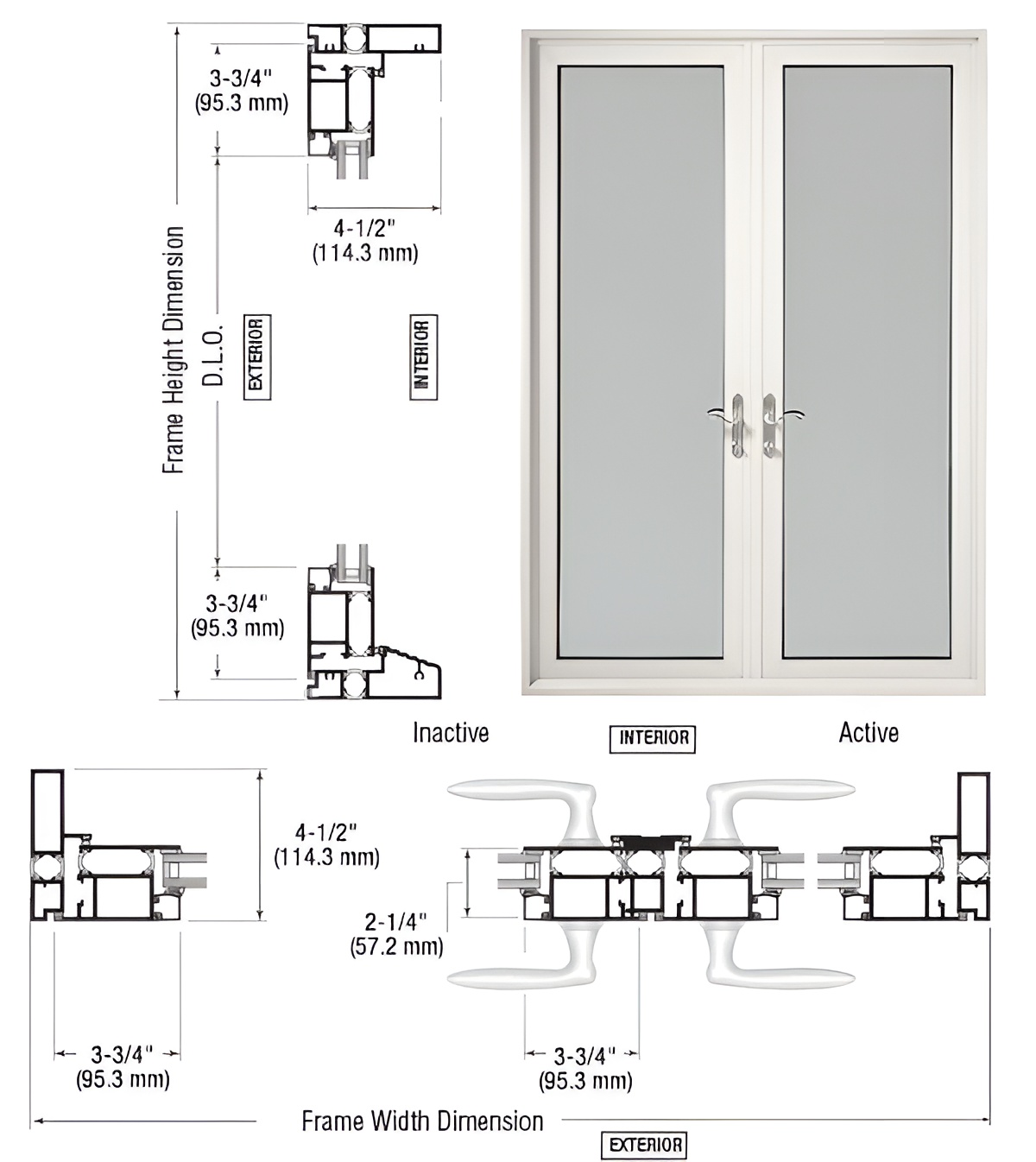

CRL TD92252P0 Custom Series 900 White KYNAR Paint Swing Out Terrace Door Pair is designed for durability and performance, making it an excellent choice for high-traffic areas. Constructed with a robust 1" x 4-1/2" (25 x 114 mm) frame, this door features a medium stile 2-1/4" (57 mm) thick construction, ensuring it can withstand heavy use and severe weather conditions. The door is thermally broken, available as either in-swing or out-swing pairs, which helps maintain energy efficiency. Equipped with adjustable pivot hinges and a five-point locking device, security and ease of use are prioritized. The standard matching aluminum threshold complements the aesthetic while also providing functionality. This model accepts 1" (25 mm) insulating glass, enhancing thermal performance. For added versatility, matching sidelites and fixed lites are also available, allowing for customized configurations to fit various architectural designs. The finish is a sleek White Kynar, ensuring long-lasting beauty and resistance to the elements. Please note that shipping is limited to common carrier only, and the product complies with safety standards. Choose the CRL TD92252P0 to elevate your space with style and resilience.

Custom Series 900 White KYNAR Paint Swing Out Terrace Door Pair with 3-3/4" Bottom Rail and Standard Threshold

• Adjustable Pivot Hinge
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available with Matching Sidelites and Fixed Lites
• High Performance AW-PG 55-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Thermally Broken In-Swing or Out-Swing Pairs

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
