CRL TD92271P0 Custom Series 900 KYNAR Swing Out Terrace Door Pair, 3-3/4" Rail

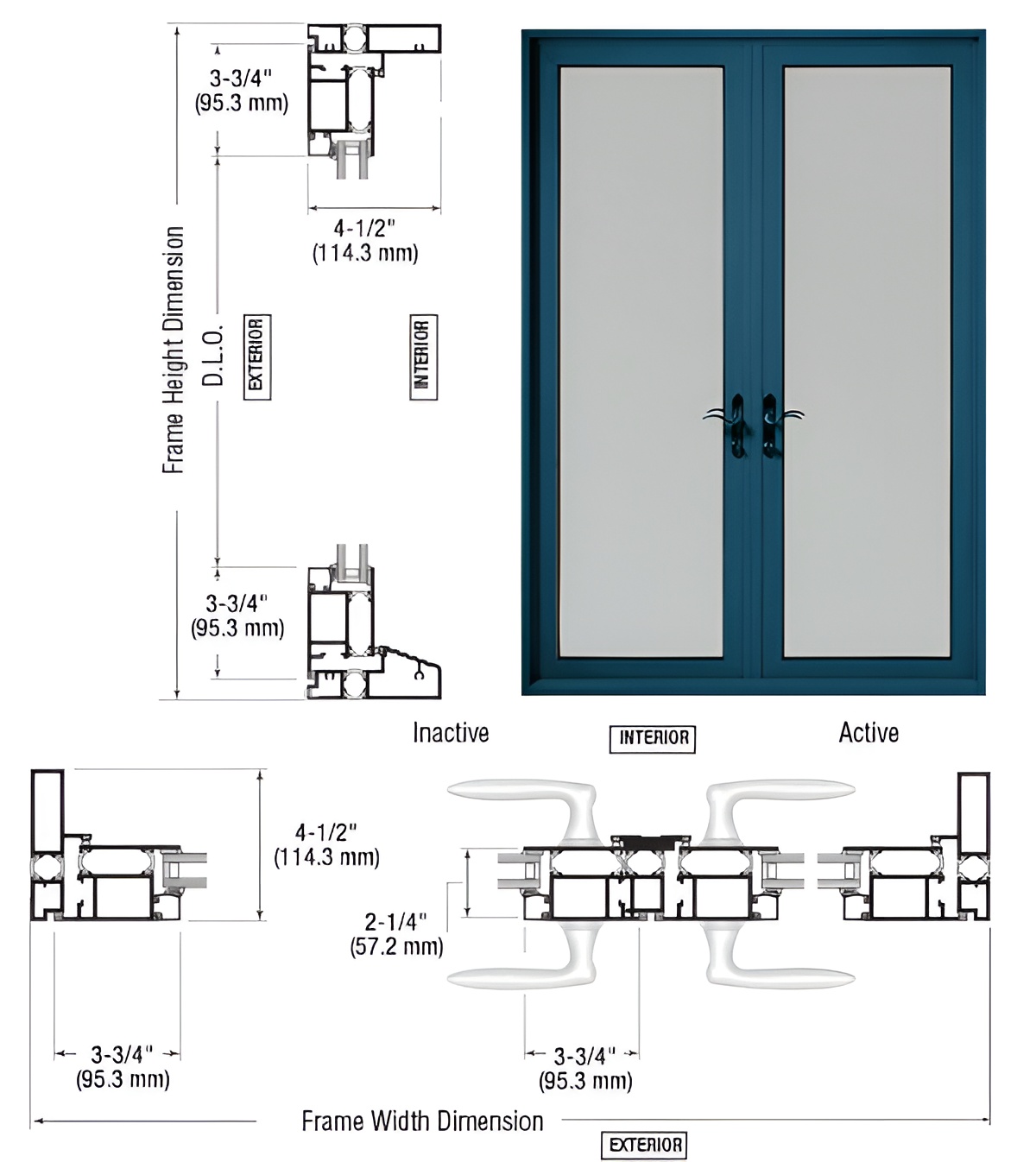

CRL TD92271P0 Custom Series 900 Custom KYNAR Paint Swing Out Terrace Door Pair offers a robust and stylish solution for both high-traffic and challenging weather environments. Crafted with a thermally broken design, this door features a sturdy 1" x 4-1/2" (25 x 114 mm) frame and a medium stile 2-1/4" (57 mm) thick door, ensuring optimal insulation and durability. The door pair is equipped with a 3-3/4" (95 mm) top rail and bottom rail, complemented by a five-point locking device for enhanced security. Designed to accept 1" (25 mm) insulating glass, the CRL terrace door is rated AW-PG 55-ATD for high performance, making it suitable for various architectural applications. The adjustable pivot hinge allows for smooth operation, whether you choose an in-swing or out-swing configuration. For added versatility, matching sidelites and fixed lites are also available. Finished in custom KYNAR paint, this terrace door combines functionality with aesthetic appeal, ensuring it meets the design needs of any project. Please note, shipping is restricted to common carriers only. Elevate your entrance with the reliability and elegance of the CRL Custom Series 900 Terrace Door Pair, perfect for any modern environment.

Custom Series 900 Custom KYNAR Paint Swing Out Terrace Door Pair with 3-3/4" Bottom Rail and Standard Threshold

• Adjustable Pivot Hinge
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available with Matching Sidelites and Fixed Lites
• High Performance AW-PG 55-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Thermally Broken In-Swing or Out-Swing Pairs

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
