CRL TD92511P0 U.S. Aluminum Clear Anodized Series 900 Terrace Swing-Out Door Pair

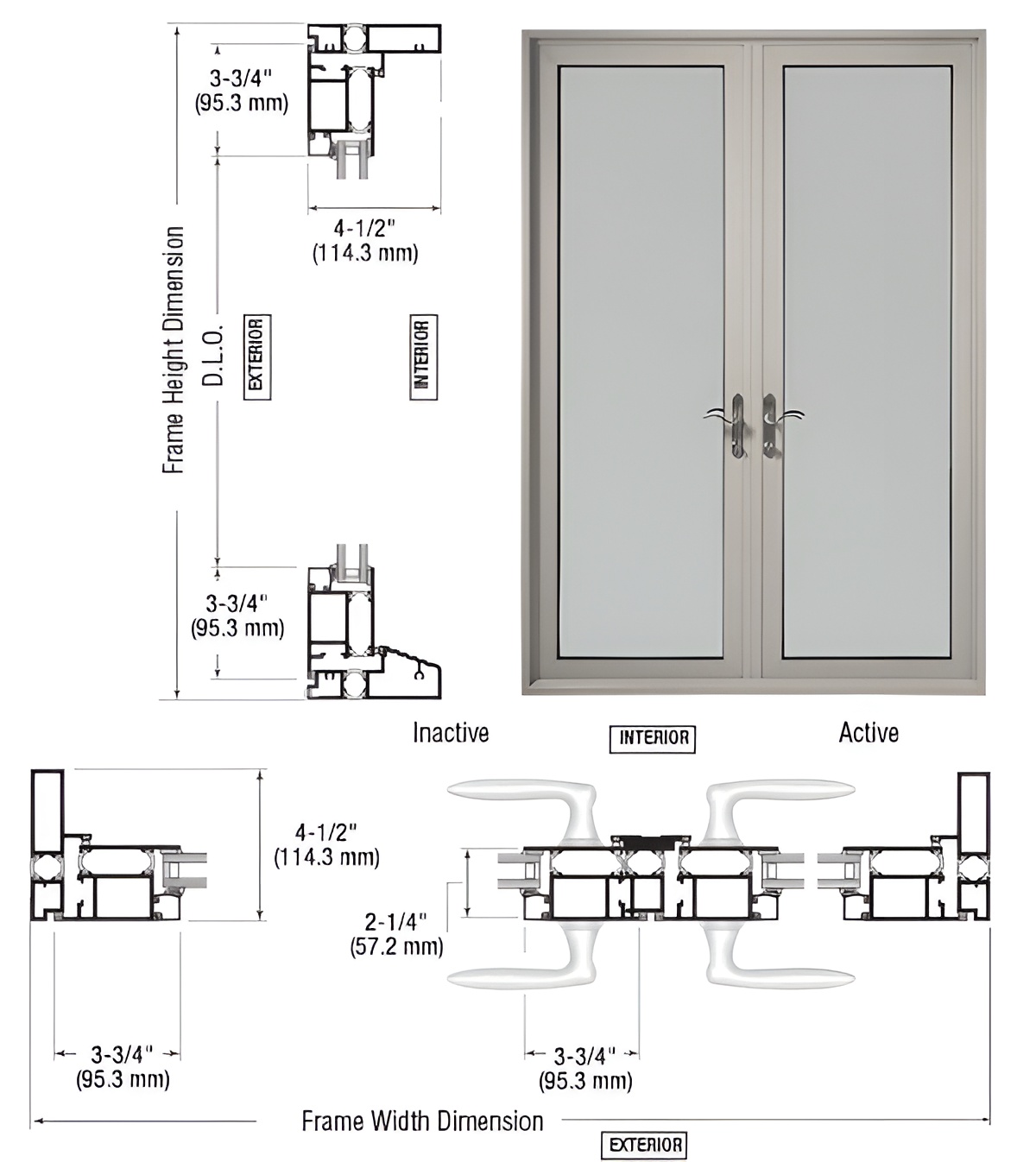

CRL TD92511P0 - U.S. Aluminum Clear Anodized Series 900 Terrace Door Pair Swing Out offers a robust solution for modern entrances, combining durability with aesthetic appeal. This terrace door is engineered with a thermally broken door and frame, enhancing energy efficiency and providing superior insulation. The 1-1/2 Pair Five Knuckle Hinges with non-removable pins ensure reliable operation and security, making it an excellent choice for both commercial and residential applications. Designed to accommodate 1" insulated glass, the door features integrated glass stops that promote easy installation and a seamless appearance. The door and frame come fully assembled, streamlining the installation process. Additionally, the seven-point locking hardware provides enhanced security, offering peace of mind without compromising on style. With dimensions that include a 1" x 4-1/2" up/over frame and a 2-1/4" thick door, this model is built to last. The clear anodized finish adds a sleek touch, ensuring that the door not only functions well but also complements a variety of architectural styles. Please note that shipping is available via common carrier only, and weights are approximate. Choose the CRL Series 900 for a quality entrance solution that stands the test of time.

-U.S. Aluminum Clear Anodized Series 900 Terrace Door Pair Swing Out

• 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins
• Thermally Broken Door and Frame
• Glass Stops for 1" Insulated Glass
• Door and Frame Shipped Assembled
• Seven-Point Locking Hardware
