CRL TD92571P0 U.S. Aluminum KYNAR 900 Terrace Door Pair - Swing Out

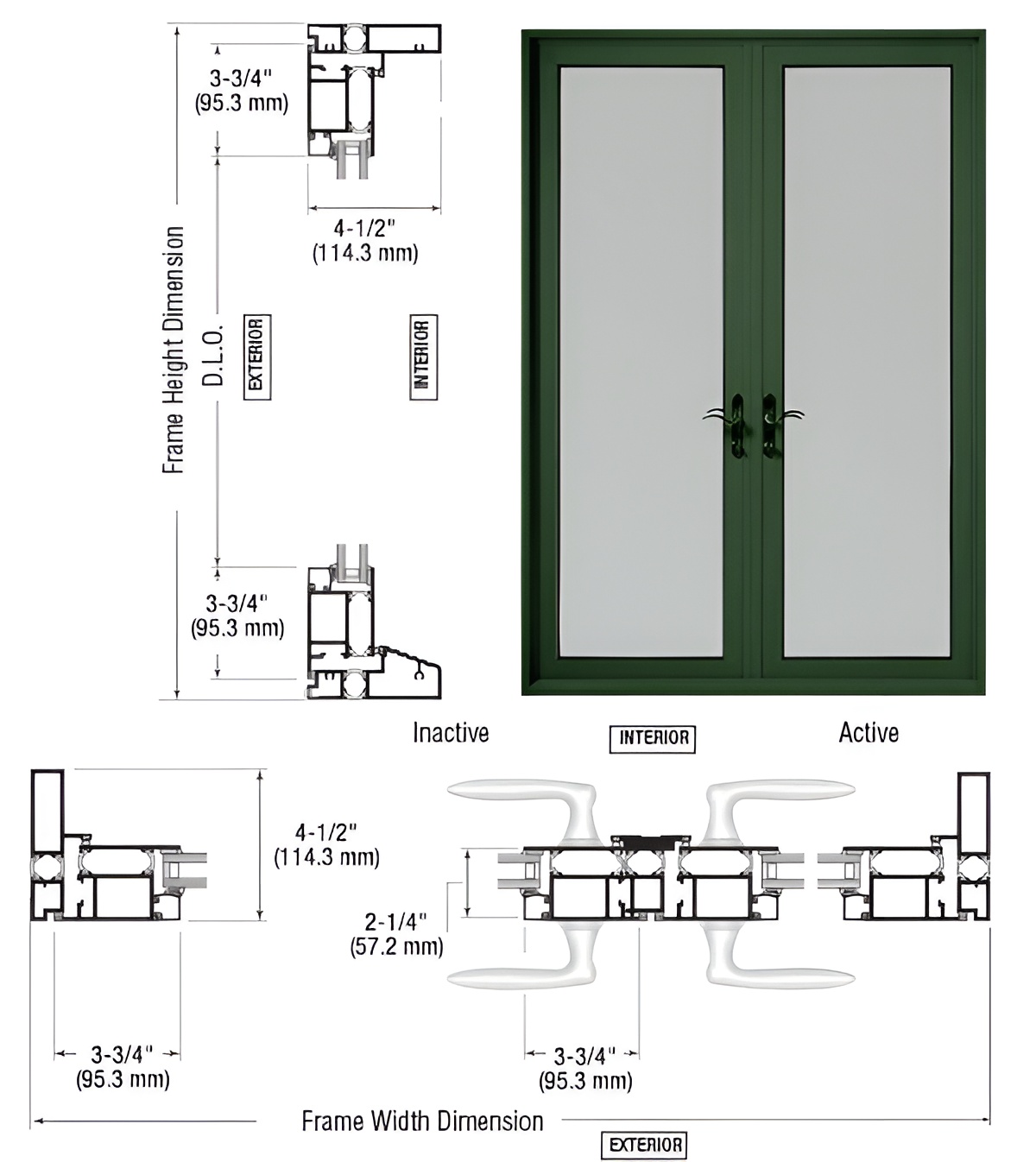

CRL TD92571P0 - U.S. Aluminum Custom KYNAR Paint Series 900 Terrace Door Pair Swing Out is designed to enhance both functionality and aesthetics in any building entrance. Featuring robust 1-1/2 Pair Five Knuckle Hinges with Non-Removable Pins, this door system ensures durability and secure operation. The thermally broken door and frame construction provides excellent insulation, making it suitable for various climates. This model accommodates 1" insulated glass, perfect for creating a sleek, modern look. The door and frame come pre-assembled for easy installation, saving time on-site. Security is paramount; the seven-point locking hardware offers enhanced protection, ensuring peace of mind for building owners. With a structural profile of 1" x 4-1/2" Up/Over Frame and a door thickness of 2-1/4", the CRL Series 900 Terrace Entrance is built to last. The 3.75" stiles and rails provide a substantial appearance and are designed for compatibility with Butt Hinge hardware. Finished in a Custom Kynar, this door pair not only meets functional needs but also adds a touch of sophistication to any entrance. For shipping, please note that this product is restricted to common carrier only-no UPS. Elevate your architectural design with this exceptional terrace door solution.

-U.S. Aluminum Custom KYNAR Paint Series 900 Terrace Door Pair Swing Out

• 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins
• Thermally Broken Door and Frame
• Glass Stops for 1" Insulated Glass
• Door and Frame Shipped Assembled
• Seven-Point Locking Hardware

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
