CRL TND91252L0 Custom Series 900 White KYNAR Left Swing Terrace Door with Transom Frame

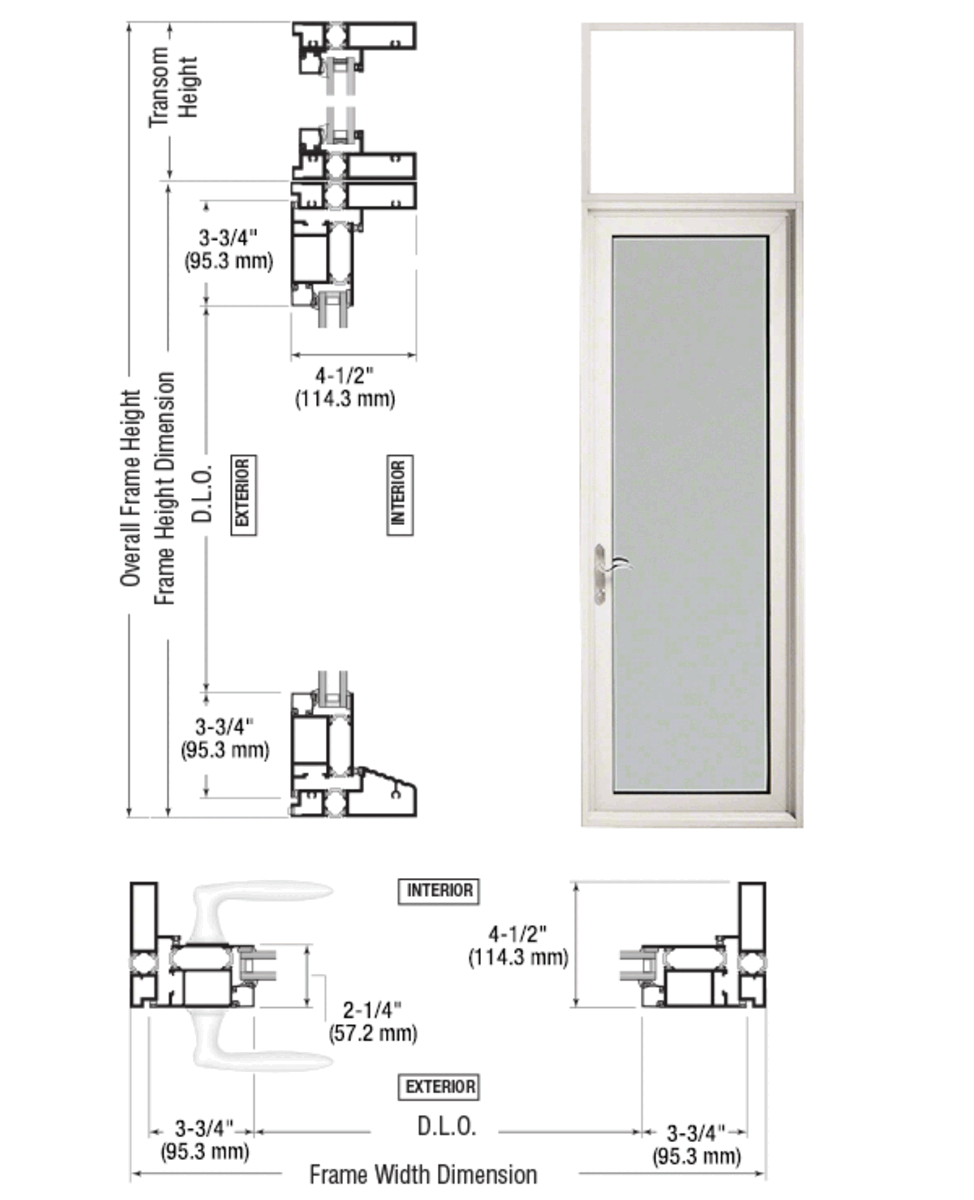

CRL TND91252L0 Custom Series 900 White KYNAR Paint Hinge Left Swing Out Single Terrace Door With Transom Frame offers both aesthetic appeal and robust performance for any architectural setting. This thermally broken out-swing door is designed to accept 1" (25 mm) insulating glass, ensuring excellent energy efficiency and insulation. Built with a sturdy 1" x 4-1/2" x 120" (25 mm x 114 mm x 3.05 m) transom frame, this door features a medium stile that is 2-1/4" (57 mm) thick, complemented by 3-3/4" (95 mm) stiles and rails. The adjustable pivot hinge allows for seamless operation, while the five-point locking device enhances security. Designed to withstand heavy traffic and harsh weather conditions, the CRL Series 900 is ideal for high-use areas. Available with matching sidelites and fixed lites, this door can be customized to fit your specific requirements. Its elegant White Kynar finish not only enhances the door's appearance but also provides long-lasting durability. Please note that this product ships via common carrier only, ensuring safe delivery. Elevate your entrance with the reliability and style of the CRL Series 900 Terrace Door.

Custom Series 900 White KYNAR Paint Hinge Left Swing Out Single Terrace Door With Transom Frame, 3-3/4" Bottom Rail, and Standard Threshold

• High Performance AW-PG 80-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Adjustable Pivot Hinge
• Thermally Broken Out-Swing Single
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available with Matching Sidelites and Fixed Lites

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
