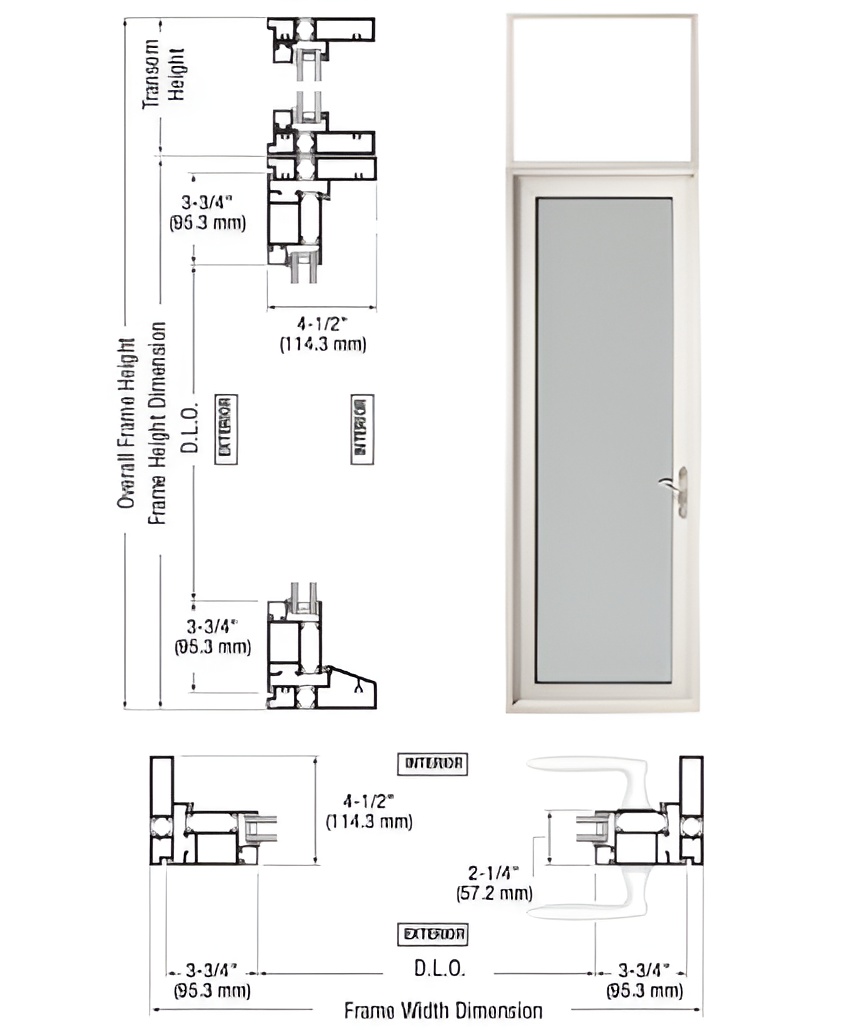

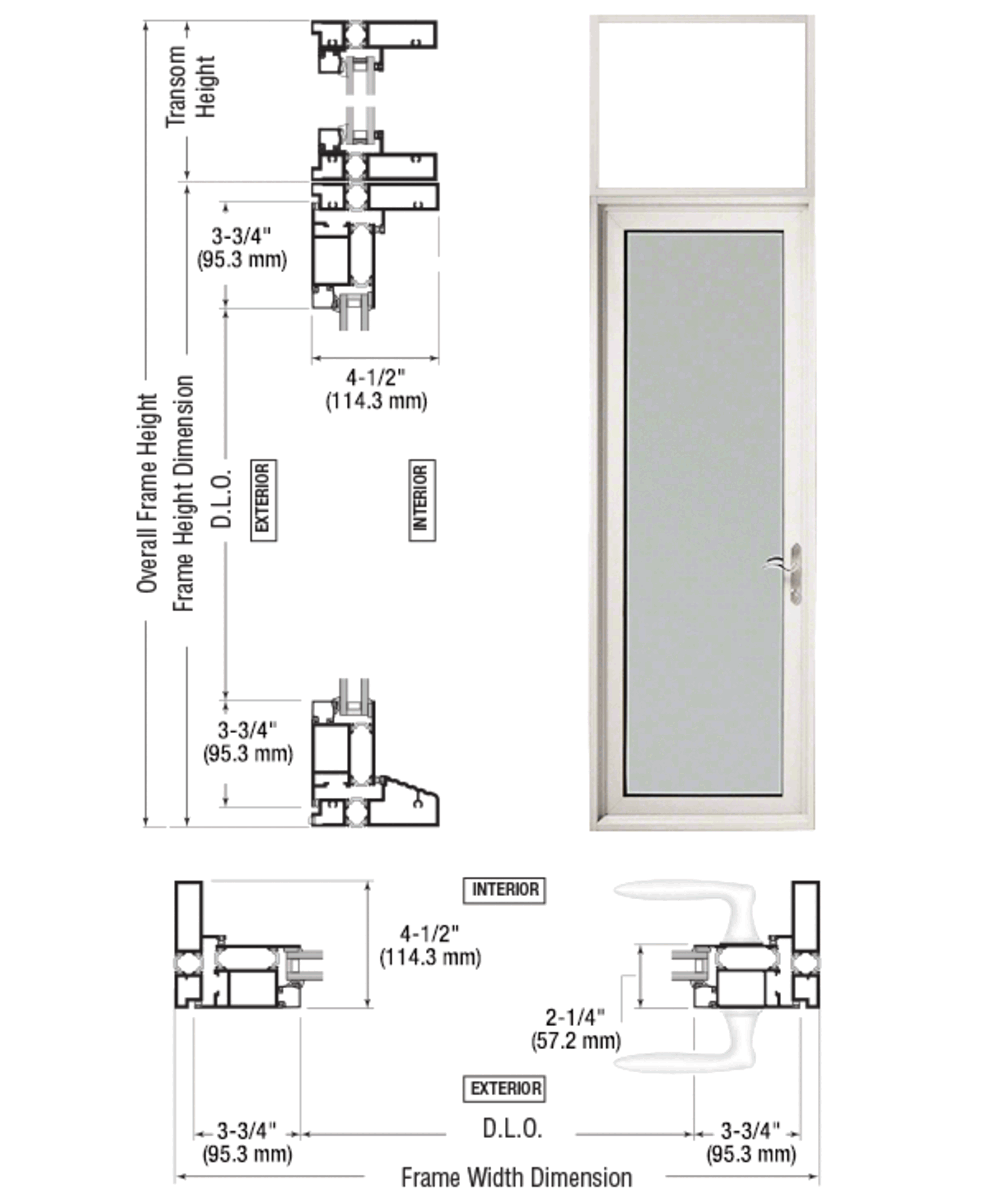

CRL TND91252R0 Custom Series 900 White KYNAR Right Swing Terrace Door with Transom Frame

CRL TND91252R0 Custom Series 900 White KYNAR Paint Hinge Right Swing Out Single Terrace Door with Transom Frame is designed for high performance and durability. This thermally broken out-swing door is rated AW-PG 80-ATD, ensuring it can withstand heavy traffic and the harshest weather conditions. The door accommodates 1" (25 mm) insulating glass, enhancing energy efficiency while maintaining aesthetic appeal. This model features a robust design with a medium stile thickness of 2-1/4" (57 mm) and a 3-3/4" (95 mm) top and bottom rail, offering stability and security. The adjustable pivot hinge allows for smooth operation, making it ideal for both residential and commercial applications. A five-point locking device comes standard, providing added security for peace of mind. Additionally, the CRL Terrace Door can be customized with matching sidelites and fixed lights, allowing for a cohesive look in your entryway. Finished in White KYNAR, this door not only meets functional needs but also adds a modern touch to any property. Please note that shipping is via common carrier only, and compliance with safety regulations is ensured. Elevate your entrance with this exceptional terrace door solution.

Custom Series 900 White KYNAR Paint Hinge Right Swing Out Single Terrace Door with Transom Frame, 3-3/4" Bottom Rail, and Standard Threshold

• High Performance AW-PG 80-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Adjustable Pivot Hinge
• Thermally Broken Out-Swing Single
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available With Matching Sidelites and Fixed Lites

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
