CRL TND91271R0 Custom Series 900 KYNAR Paint Right Swing Terrace Door with Transom Frame

CRL TND91271R0 Custom Series 900 Custom KYNAR Paint Hinge Right Swing Out Single Terrace Door with Transom Frame is designed for high performance and durability. This thermally broken entrance door boasts an impressive AW-PG 80-ATD rating and is compatible with 1" insulating glass, making it an ideal choice for both residential and commercial applications. Built with a robust 1" x 4-1/2" x 120" transom frame and a medium stile 2-1/4" thick door, this model features a 3-3/4" bottom rail, ensuring both strength and stability. The adjustable pivot hinge allows for easy installation and maintenance, while the five-point locking device enhances security. Crafted to withstand heavy foot traffic and extreme weather conditions, this door is a reliable option for any environment. Complementing its functionality, the CRL Series 900 is also available with matching sidelites and fixed lites, providing flexibility in design. Its custom Kynar finish not only enhances aesthetic appeal but also offers superior resistance to fading and corrosion. For an entrance solution that combines elegance, performance, and longevity, the CRL TND91271R0 is an exceptional choice.

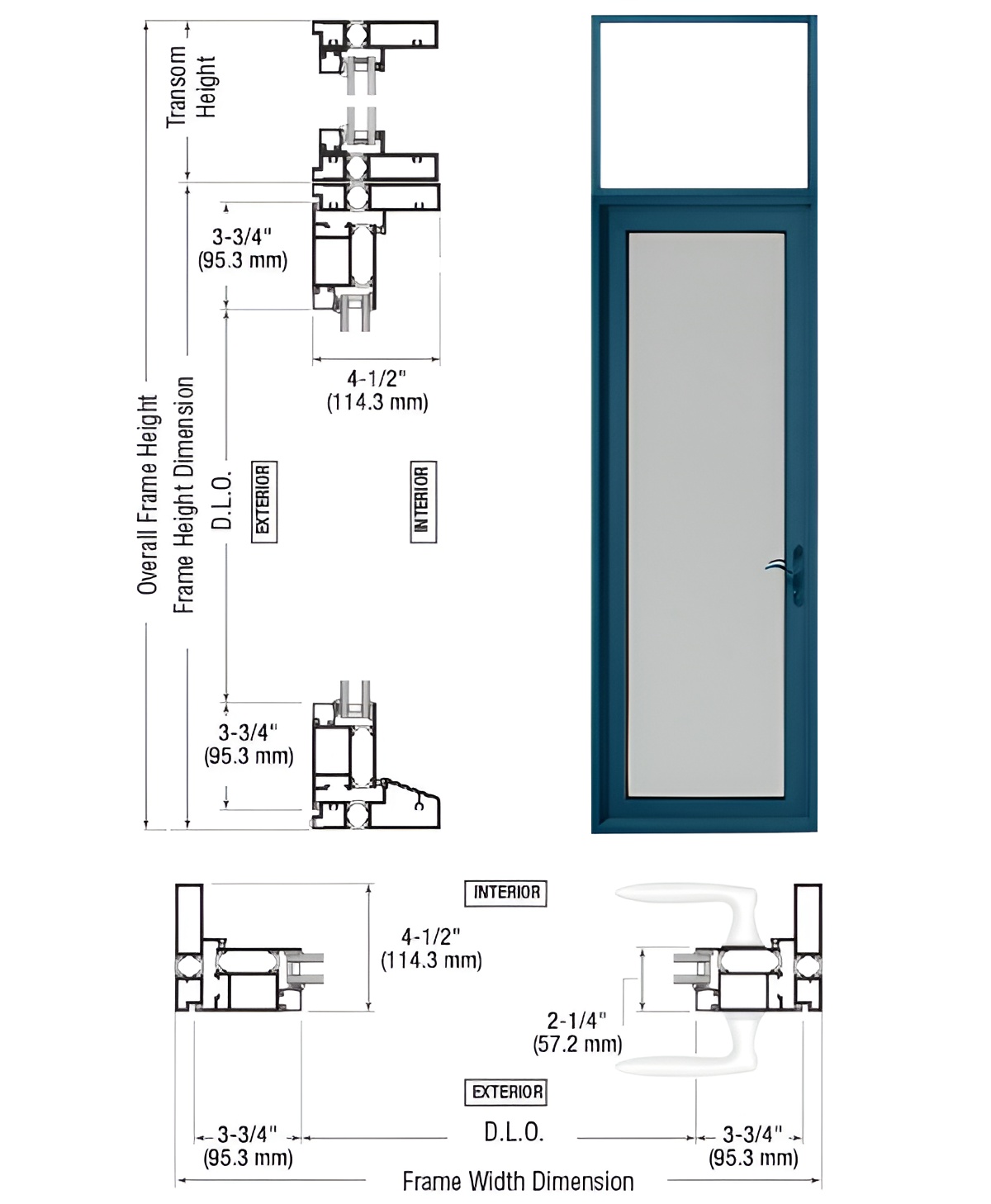

Custom Series 900 Custom KYNAR Paint Hinge Right Swing Out Single Terrace Door with Transom Frame, 3-3/4" Bottom Rail, and Standard Threshold

• High Performance AW-PG 80-ATD Rated Door Accepts 1" (25 mm) Insulating Glass
• Adjustable Pivot Hinge
• Thermally Broken Out-Swing Single
• Will Withstand Heavy Traffic and the Worst of Weather Conditions
• Also Available With Matching Sidelites and Fixed Lites
