CRL TND91511L0 U.S. Aluminum Clear Anodized Series 900 Left-Swing Terrace Door

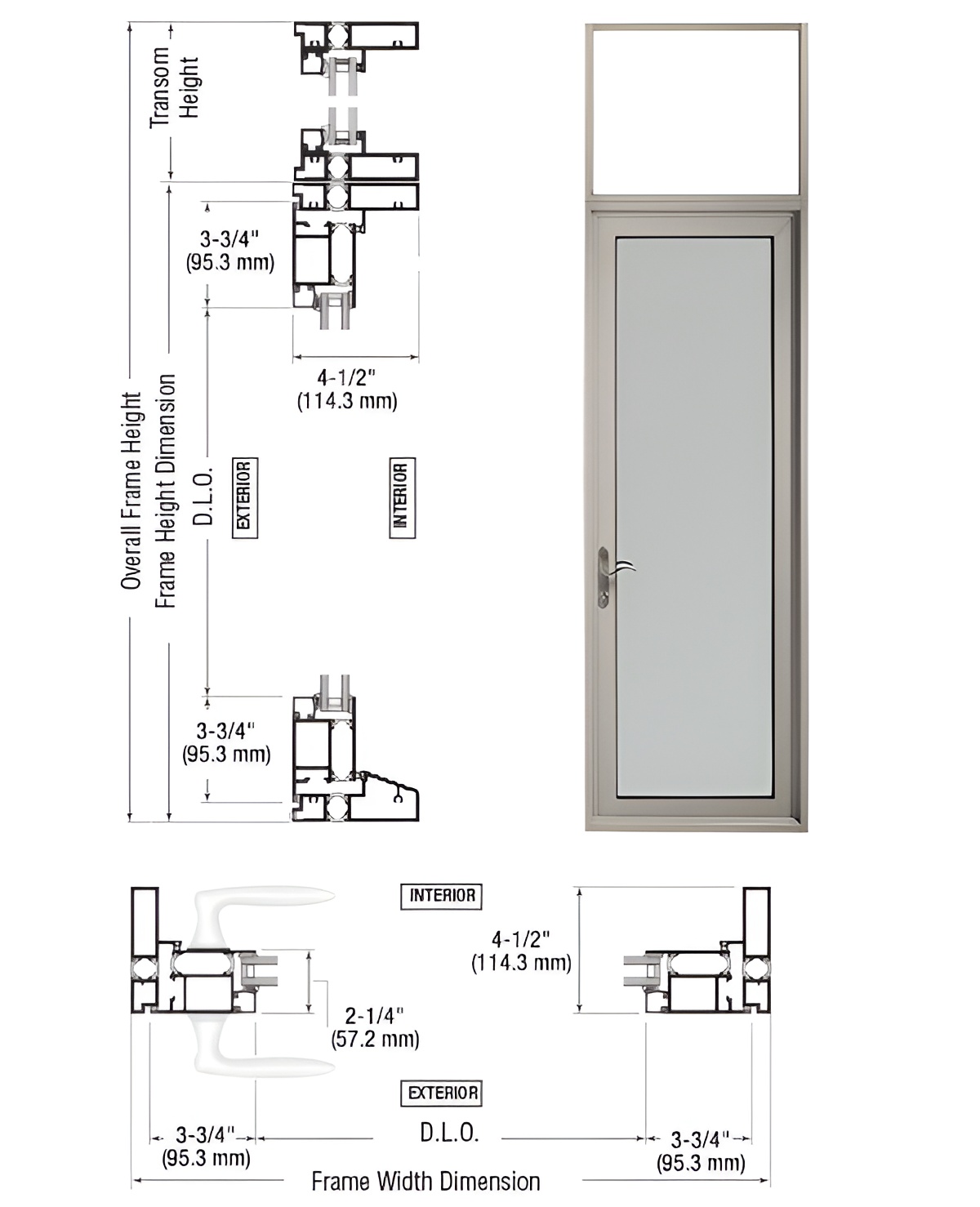

CRL TND91511L0 - U.S. Aluminum Clear Anodized Series 900 Terrace Door Single Hinge Left Swing Out offers a robust solution for both commercial and residential applications. This thermally broken door and frame ensure superior energy efficiency, making it an ideal choice for environments where temperature control is essential. Constructed with a 1" x 4-1/2" transom frame and a 2-1/4" thick door, it features 3.75" stiles and rails, combining durability with a sleek appearance. Designed for functionality, this terrace door comes equipped with glass stops for 1" insulated glass, allowing for easy integration of your chosen glazing. The door and frame are shipped assembled, streamlining installation and reducing labor time. Security is paramount, and the five-point locking hardware provides peace of mind, ensuring that your space remains secure. Additionally, the door features 1-1/2 pair of five-knuckle hinges with non-removable pins, enhancing both strength and reliability. Finished in clear anodized Class 1, it not only meets aesthetic demands but also withstands the test of time. Note that shipping is via common carrier only, and it's advisable to check with customer service regarding weight and shipping costs for order completion. Elevate your entrance with the CRL Series 900 Terrace Door, where quality meets style.

-U.S. Aluminum Clear Anodized Series 900 Terrace Door Single Hinge Left Swing Out

• Thermally Broken Door and Frame
• Glass Stops for 1" Insulated Glass
• Door and Frame Shipped Assembled
• Five-Point Locking Hardware
• 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
