CRL TND91511R0 U.S. Aluminum Clear Anodized 900 Right Swing Terrace Door Transom Hinge

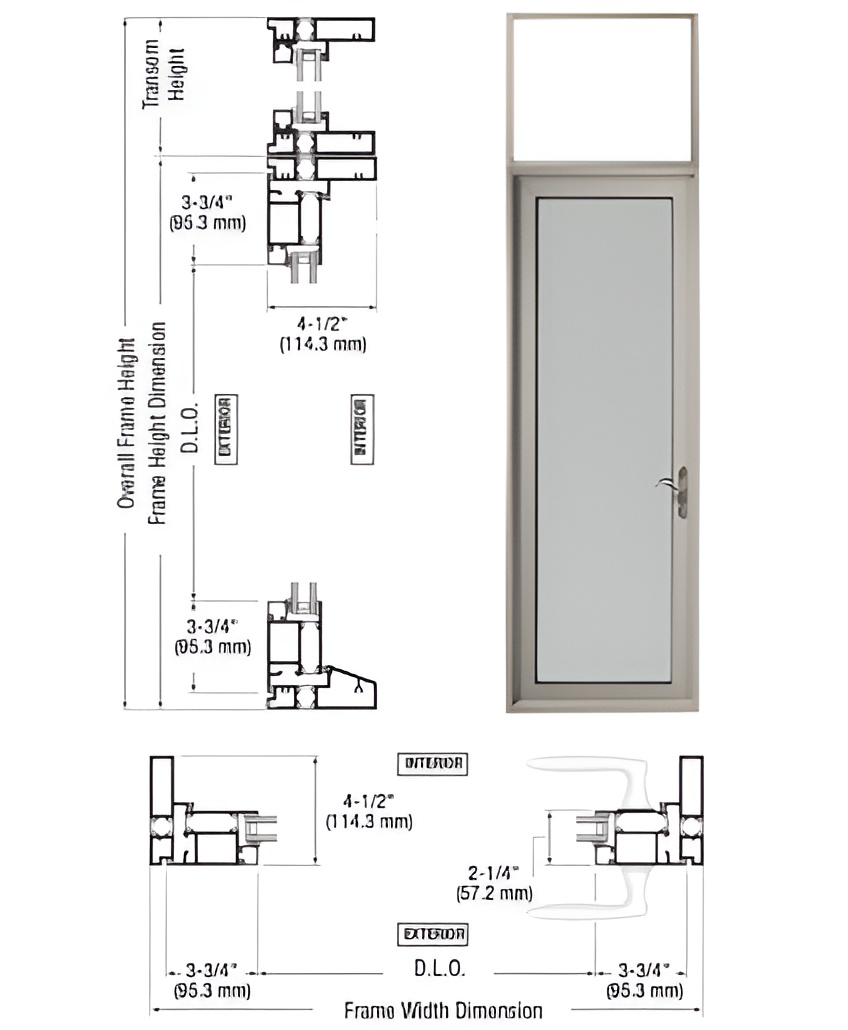

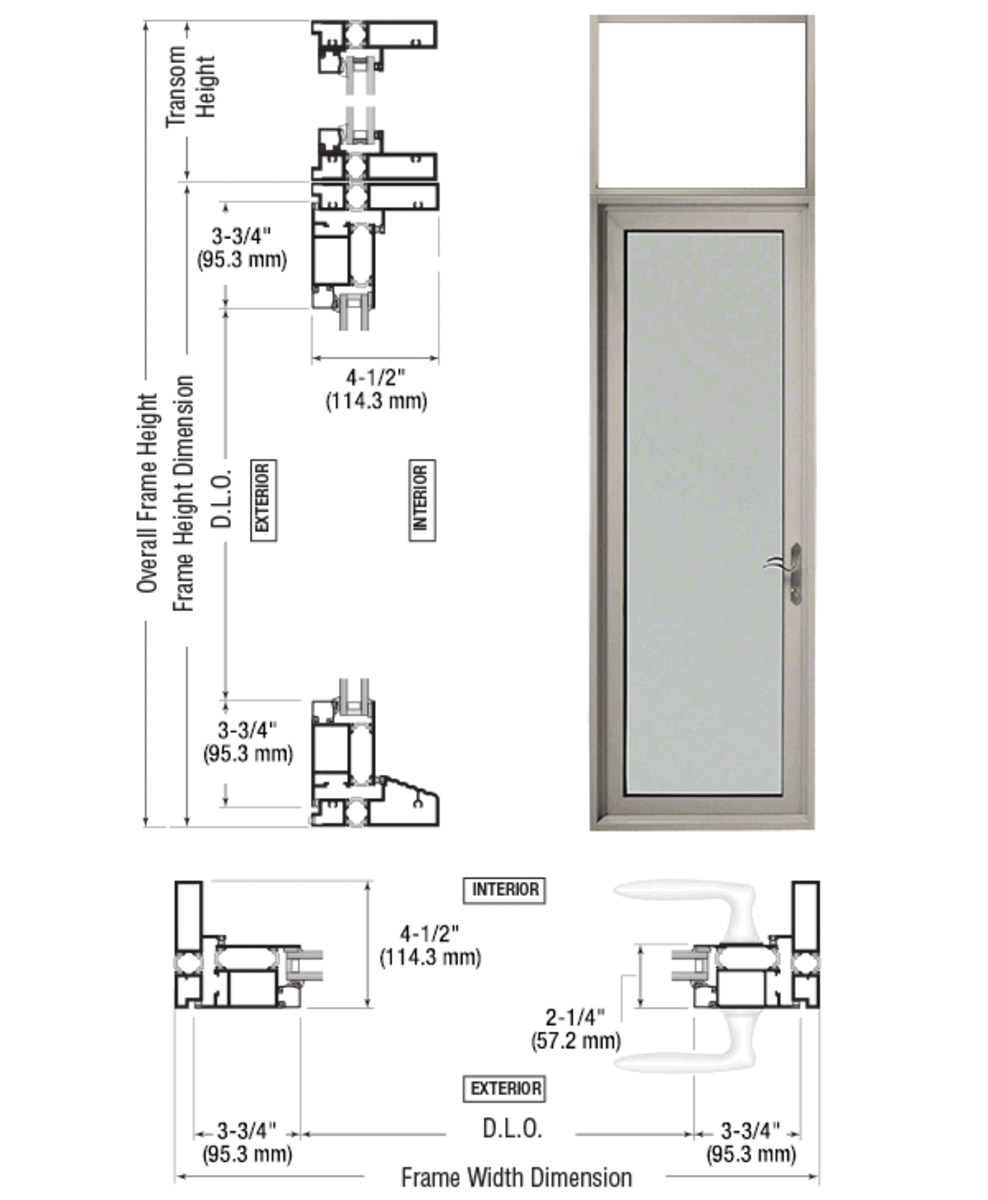

CRL TND91511R0 - U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out offers a robust solution for your entryway needs. Constructed with a durable 1" x 4-1/2" (25 x 114.3 mm) frame, this transom hinge is designed to accommodate 1" (25 mm) insulating glass, ensuring excellent thermal performance and energy efficiency. The thermally broken door and transom frame provide enhanced insulation, making it ideal for various climates. This model features a five-point locking device, enhancing security while allowing for smooth operation. The standard bottom rail and threshold are specifically designed for swing-out applications, providing ease of use and functionality. With 2-1/4" (57.2 mm) thick doors and 3.75" (95 mm) stiles, this hinge is built to withstand daily use while maintaining a sleek aesthetic. The clear anodized finish not only adds a polished look but also ensures long-lasting durability against the elements. It is important to note that this product ships via common carrier only, and compliance warnings are provided regarding reproductive harm. CRL TND91511R0 is the ideal choice for building professionals and homeowners seeking a reliable, stylish, and secure transom hinge solution.

-U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Transom Frame
• Five-Point Locking Device
• Standard Bottom Rail and Threshold for Swing Out Applications
