CRL TND91522R0 U.S. Aluminum Class I Bronze Black Anodized 900 Right Swing Terrace Door Hinge

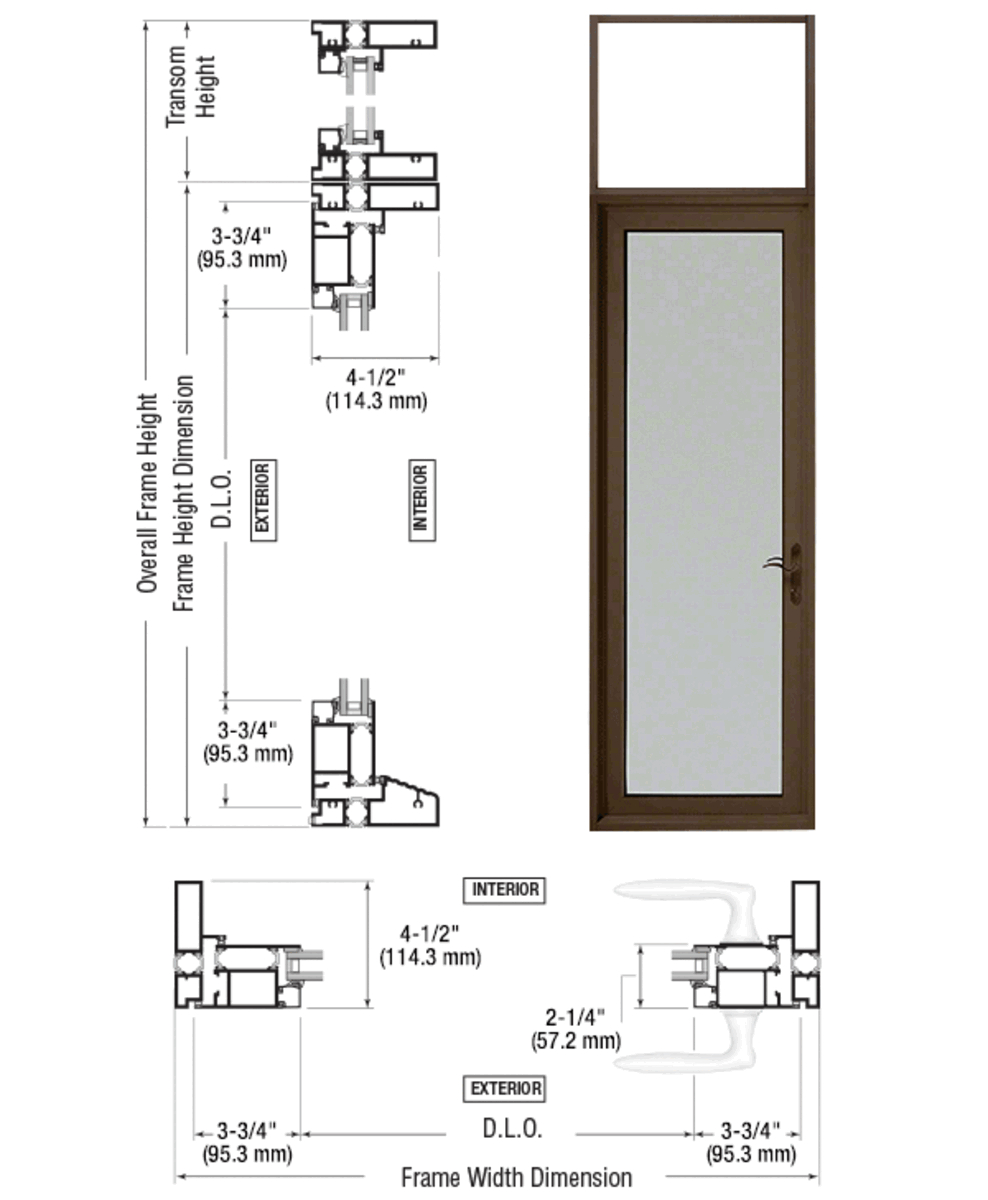

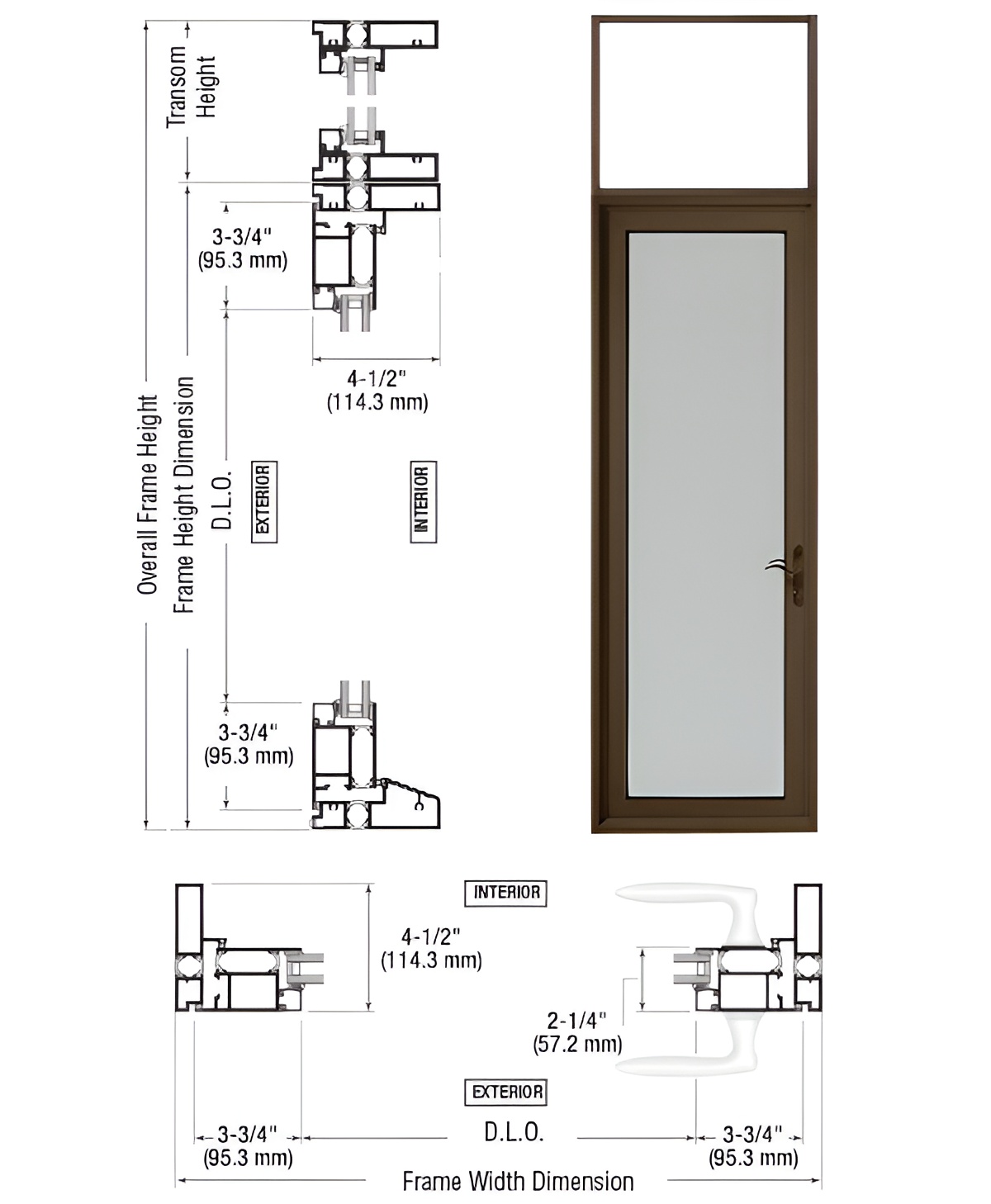

CRL TND91522R0 - U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out is designed to elevate your architectural projects with its robust construction and stylish finish. This transom hinge features a 1" x 4-1/2" (25 x 114.3 mm) frame, accommodating 1" (25 mm) insulating glass for optimal thermal performance. The thermally broken design enhances energy efficiency while providing a sleek appearance that complements modern aesthetics. Engineered for functionality, this hinge includes a five-point locking device, ensuring enhanced security for your doors. The standard bottom rail and threshold are specifically designed for swing-out applications, making installation both straightforward and efficient. With 2-1/4" (57.2 mm) thick doors and 3.75" (95 mm) stiles and rails, you can trust in the durability and stability of this product. The elegant black bronze anodized finish adds a sophisticated touch, making it suitable for a variety of settings. Please note that shipping is available via common carrier only, and compliance with safety regulations is paramount. Choose the CRL Series 900 Terrace Door Transom Hinge for a reliable and stylish solution that meets the demands of both building professionals and discerning homeowners.

-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Transom Frame
• Five-Point Locking Device
• Standard Bottom Rail and Threshold for Swing Out Applications
