CRL TND91552R0 U.S. Aluminum KYNAR 900 White Terrace Door Right Swing Transom Hinge

CRL TND91552R0 - U.S. Aluminum White KYNAR Paint Series 900 Terrace Door Transom Hinge Right Swing Out is designed for durability and ease of use in various architectural applications. Featuring a robust 1" x 4-1/2" (25 x 114.3 mm) transom frame, this terrace door transom accommodates 1" (25 mm) insulating glass, ensuring excellent thermal performance. The thermally broken design enhances energy efficiency while minimizing heat transfer, making it ideal for diverse climates. Equipped with a five-point locking device, this model prioritizes security without compromising functionality. The standard bottom rail and threshold are specifically crafted for swing-out applications, allowing for smooth operation and accessibility. The transom is constructed with 2-1/4" (57.2 mm) thick doors, 3.75" (95 mm) stiles, and a well-engineered bottom rail, providing strength and stability. The clean White Kynar finish not only adds an elegant touch but also offers superior resistance to fading and wear. Please note that shipping is limited to common carrier only, ensuring safe delivery. For more information regarding weight or shipping costs, please contact CRL Customer Service. Elevate your architectural projects with the reliability and sophistication of the CRL Series 900 Terrace Door Transom.

-U.S. Aluminum White KYNAR Paint Series 900 Terrace Door Transom Hinge Right Swing Out

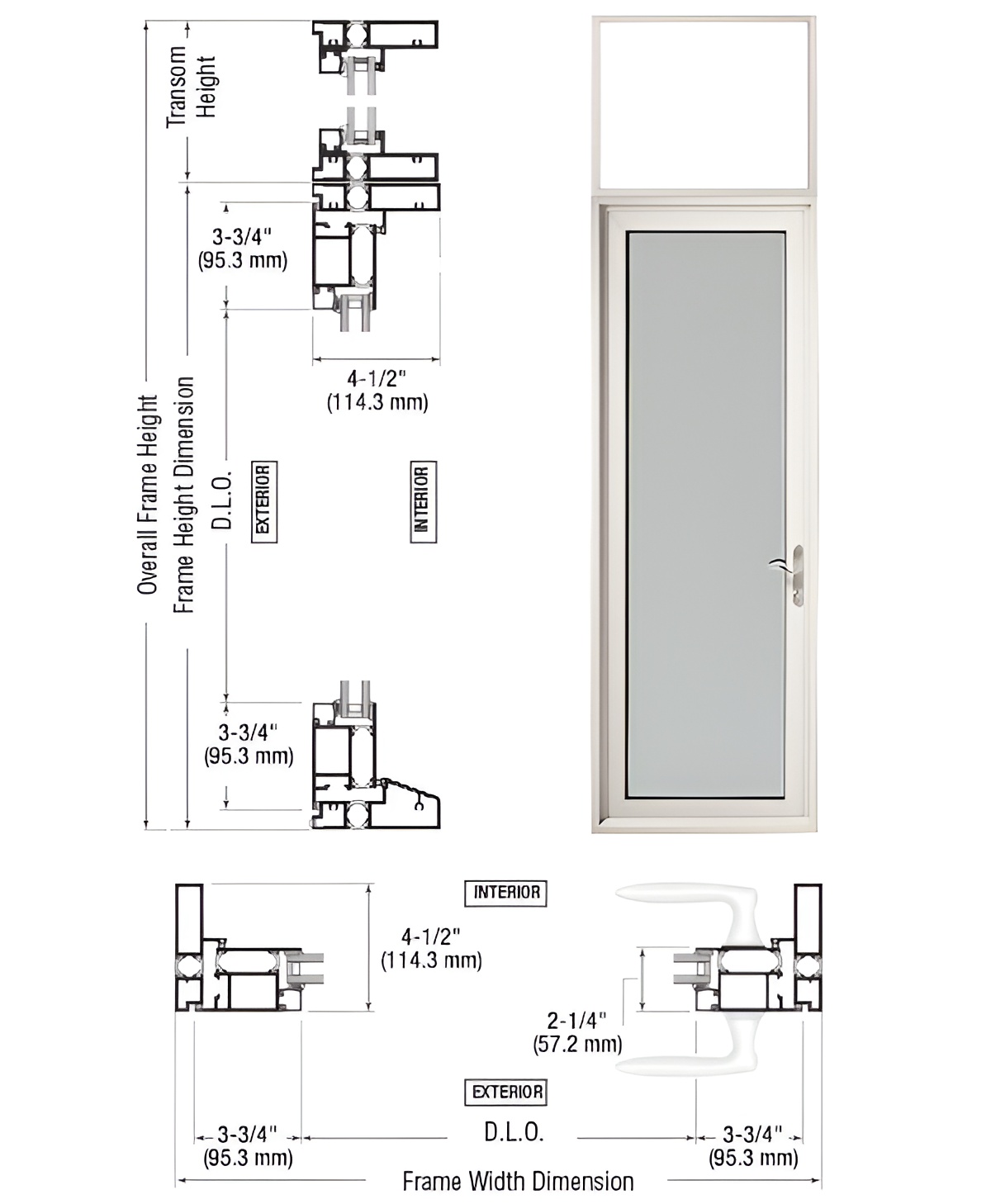

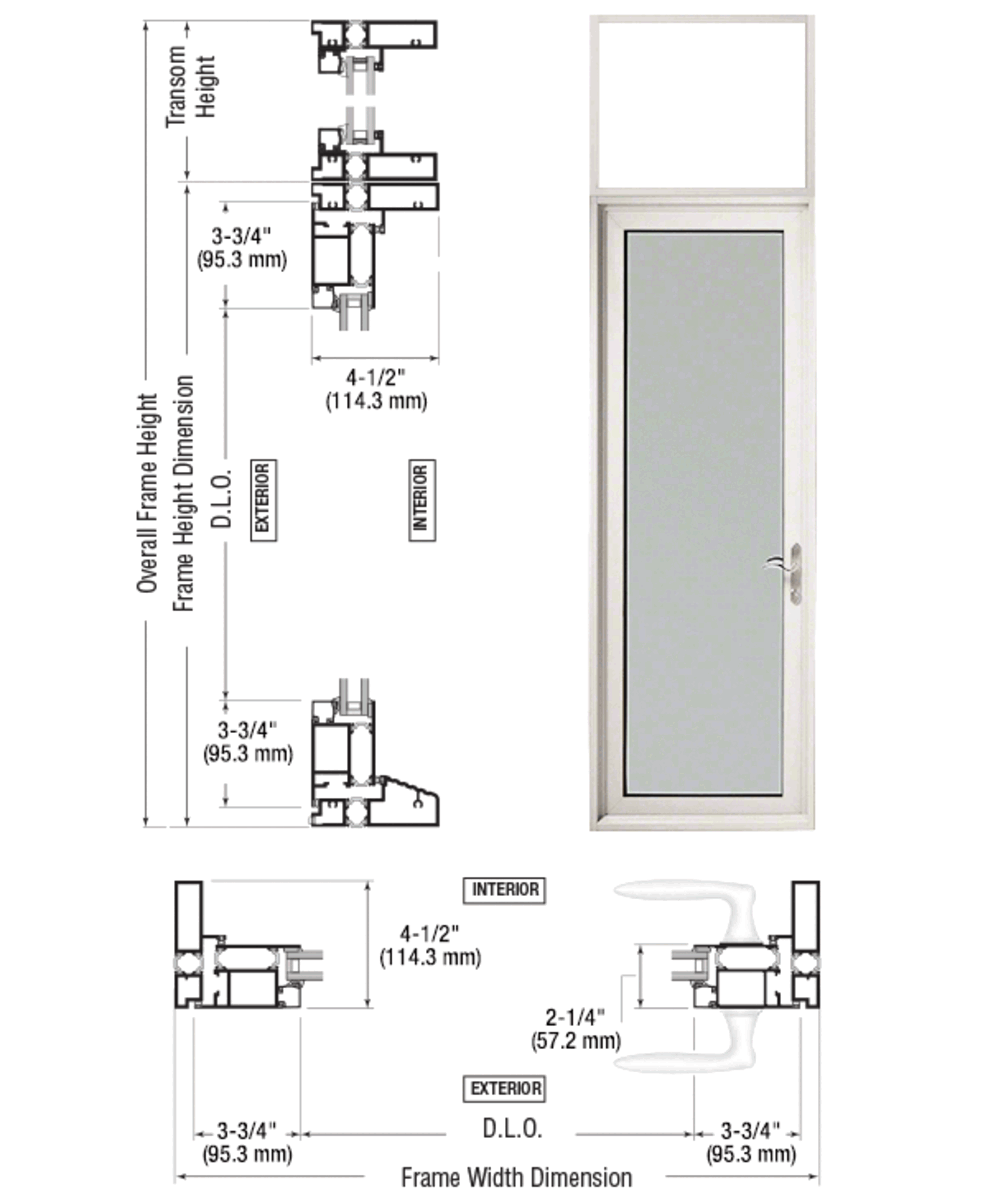

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Transom Frame
• Five-Point Locking Device
• Standard Bottom Rail and Threshold for Swing Out Applications
