CRL TND91571R0 U.S. Aluminum KYNAR 900 Terrace Door Right Swing Transom Hinge

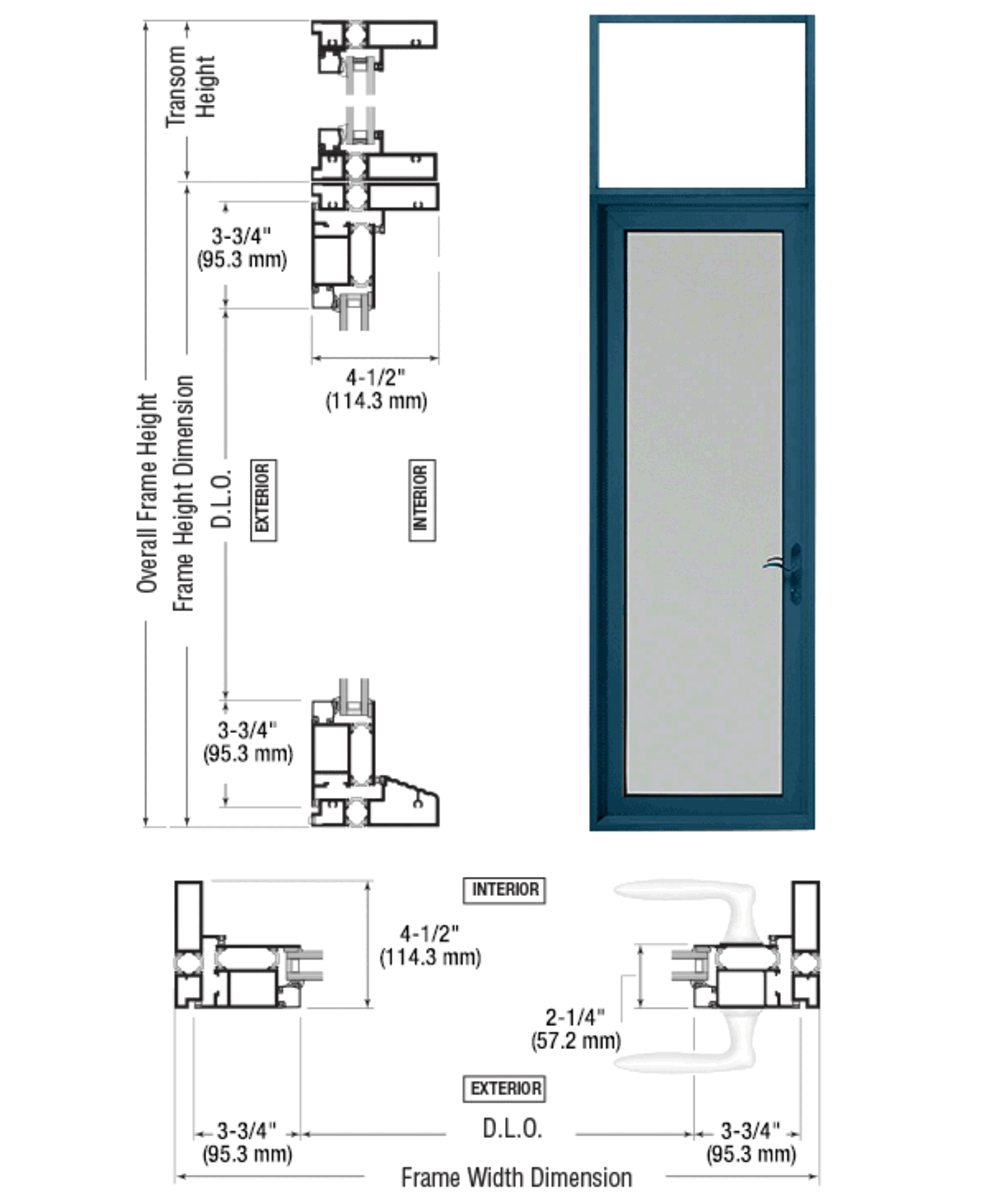

CRL TND91571R0 - U.S. Aluminum Custom KYNAR Paint Series 900 Terrace Door Transom Hinge Right Swing Out is expertly engineered for durability and style. This transom hinge features a robust 1" x 4-1/2" (25 x 114.3 mm) frame, designed to accommodate 1" (25 mm) insulating glass, ensuring exceptional thermal performance. The thermally broken construction enhances energy efficiency, making it an ideal choice for both residential and commercial applications. Functionality is a key highlight, with a standard bottom rail and threshold tailored for swing-out operations. The five-point locking device provides enhanced security, giving you peace of mind without compromising aesthetics. With a door thickness of 2-1/4" (57.2 mm) and stiles measuring 3.75" (95 mm), this hinge supports butt hinge hardware and includes glass stops for 1" (25 mm) tempered glass, which must be supplied separately. The CRL Series 900 Terrace Door Transom is finished in a custom Kynar paint, offering both beauty and resilience against the elements. Please note that shipping is only available via common carrier, as UPS is not an option for this product. Elevate your project with a reliable and stylish solution that stands the test of time.

-U.S. Aluminum Custom KYNAR Paint Series 900 Terrace Door Transom Hinge Right Swing Out

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Transom Frame
• Five-Point Locking Device
• Standard Bottom Rail and Threshold for Swing Out Applications
