CRL TND92511P0 U.S. Aluminum Clear Anodized Series 900 Swing Out Terrace Door Pair

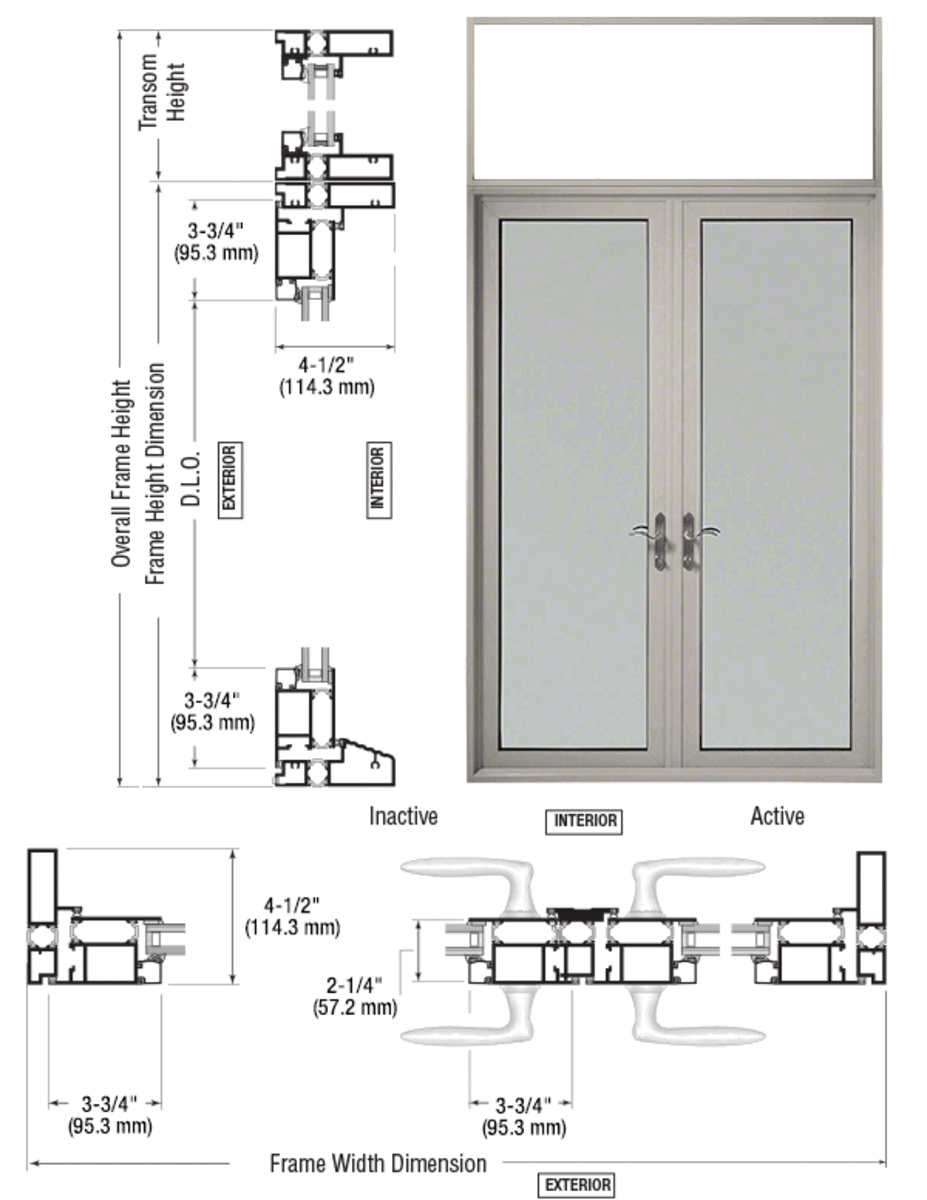

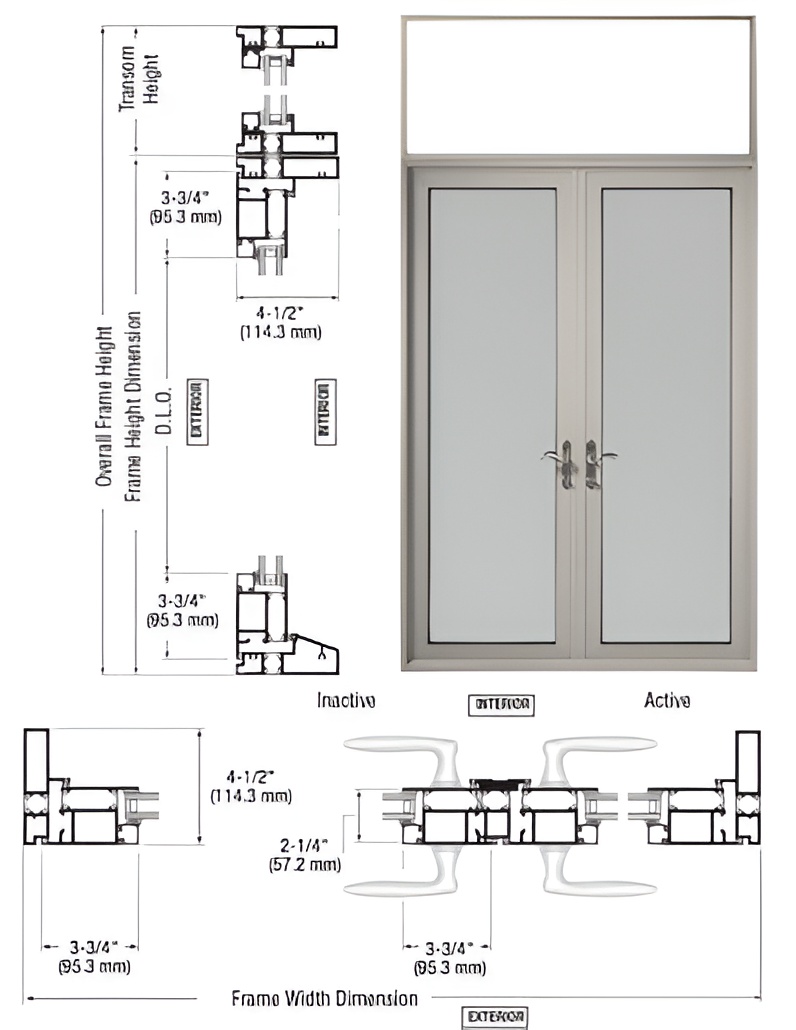

CRL TND92511P0 - U.S. Aluminum Clear Anodized Series 900 Terrace Door Pair Swing Out offers a robust solution for high-traffic entrances with a focus on durability and security. This terrace entrance features a thermally broken door and frame, ensuring energy efficiency and enhanced insulation. Designed with 1-1/2 pair five knuckle hinges equipped with non-removable pins, it provides exceptional strength and stability for frequent use. The door showcases a sleek 2-1/4-inch thick structure and incorporates 3.75-inch stiles, top rail, and bottom rail for a modern aesthetic that complements various architectural styles. With glass stops designed specifically for 1-inch insulated glass, this door ensures a snug fit while enhancing the visual appeal of your entryway. Security is paramount; the seven-point locking hardware system offers peace of mind, making it an ideal choice for commercial or residential applications. The door and frame come fully assembled, simplifying installation and saving valuable time on-site. Finished in clear anodized class 1, this product not only meets aesthetic standards but also withstands the rigors of daily use. For shipping, please note that this product requires common carrier delivery only. Elevate your entrance with the CRL Series 900 Terrace Door-where quality meets sophistication.

-U.S. Aluminum Clear Anodized Series 900 Terrace Door Pair Swing Out

• 1-1/2 Pair Five Knuckle Hinges with Non Removable Pins
• Seven-Point Locking Hardware
• Thermally Broken Door and Frame
• Glass Stops for 1" Insulated Glass
• Door and Frame Shipped Assembled

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 - Terrace Door In-Swing Test Report D6387.01-301-47
• Series 900 - Terrace Door Out-Swing Test Report D6385.01-301-47
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Double Door In-Swing Test Report D6386.01-301-47
• Series 900 Out-Swing ASTM E 90 Sound Transmission Loss Test Report 63137.01-113-11
• Series 900 Out-Swing Doube ASTM E 90 Sound Transmission Loss Test Report 63136.01-113-11
• Series 900 Out-Swing Pair AAMA WDMA CSA 101 I.S.2 A440-05 Test Report 63401.01-44
• Series 900 Terrace BIM.pdf
• Series 900 Terrace BIM.rvt
• Series 900 Terrace Door - Double Inswing Glazing Chart
• Series 900 Terrace Door - Double Outswing Glazing Chart
• Series 900 Terrace Door - Sidelite Glazing Chart
• Series 900 Terrace Door - Single Inswing Glazing Chart
• Series 900 Terrace Door - Single Outswing Glazing Chart
• Series 900 Terrace Door - Transom Glazing Chart
• Series 900 Terrace Door Installation Instructions
• Series 900 Terrace Door Numbering Key - Inswing and Outswing Doors
• Series 900 Terrace Door Outswing Door Quote Request Form
• Series 900 Terrace Door Outswing and Inswing Doors Standard Sill Quote Request Form
• Series 900 Terrace Door Product Information
• Series 900 Terrace Door Series 925 Patio Door - Sidelite Fixed Lite and Transom Lite Frames Quote Request Form
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door Series CAD Drawings.dwg
• Series 900 Terrace Door Series CAD Drawings.pdf
• Series 900 Terrace Door Swinging Door with Frame AAMA 1503-09 Thermal Performance Test Report
• Series 900 Terrace Door Swinging Door with Frame NFRC 102-2010 Thermal Performance Test Report
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 900 Terrace Door with Low Profile Threshold Product Information
• Series 900 with Low proofile Threshold Report I3839.01-303-47 R4
• Series D900 Outswing - .19 Mono X .44 Lam - Acoustical Performance ASTM E90 - H9895.01-303-11
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
