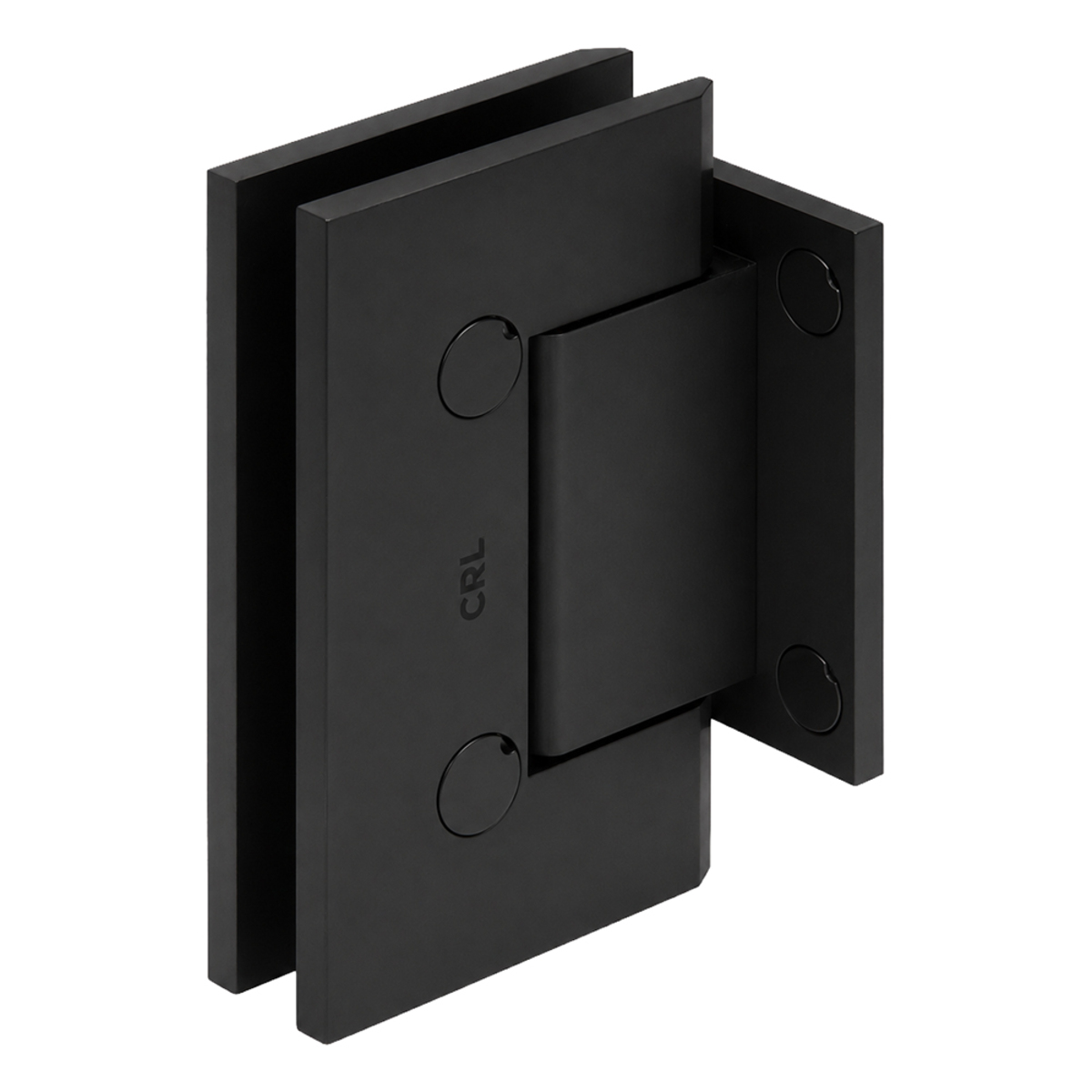

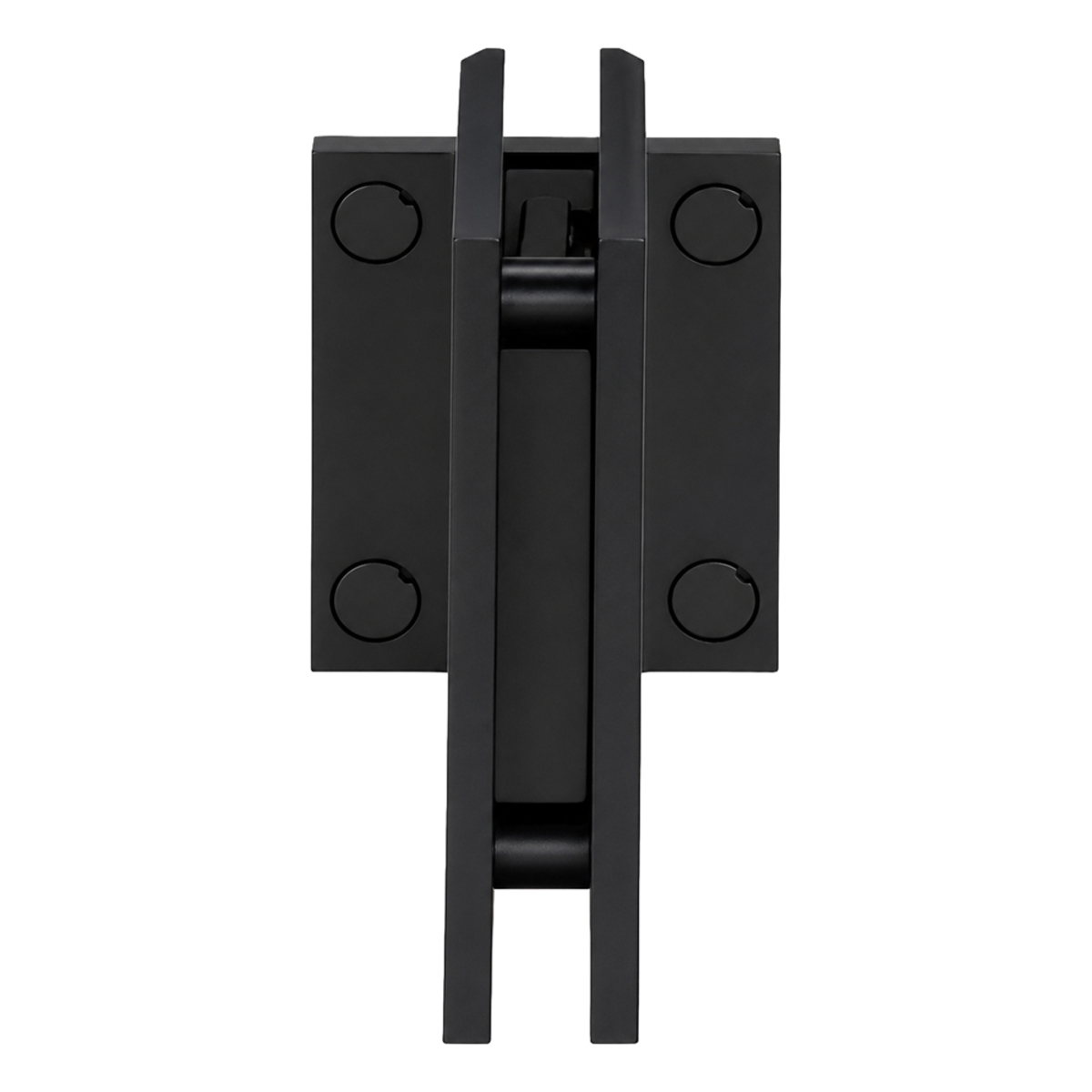

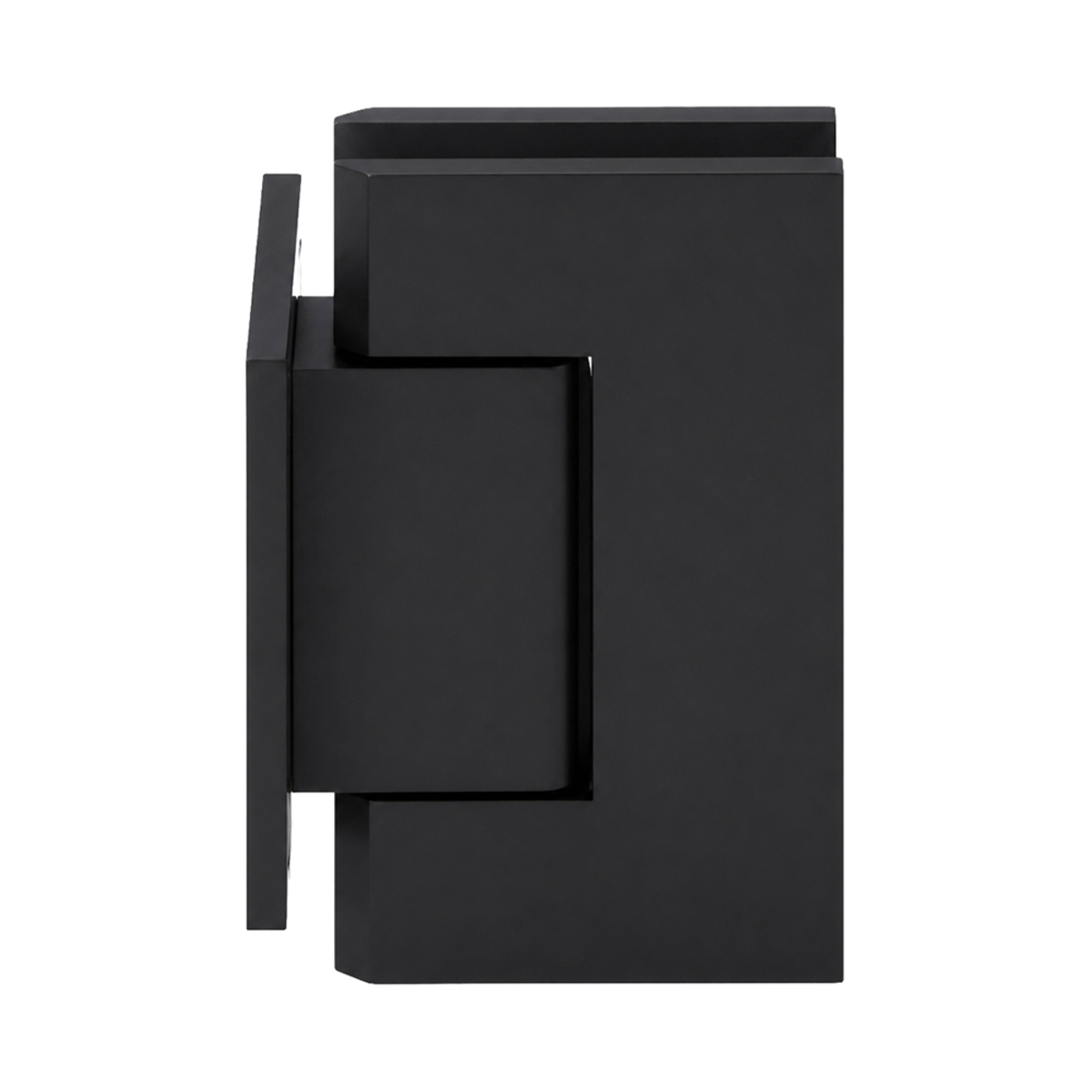

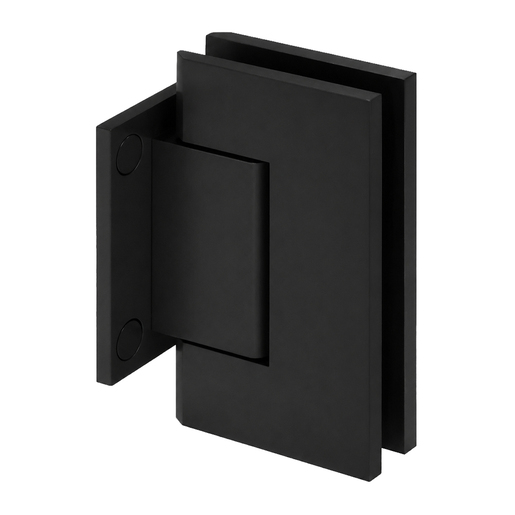

CRL TNT074MBL Matte Black Trento 074 Wall Mount Short Back Plate HingeCRL TNT074MBL Matte Black Trento 074 Series Wall Mount Short Back Plate Hinge is a high-performance, heavy-duty hinge crafted specifically for modern frameless shower doors. With a robust design that supports glass panels up to 150 lbs when using two hinges, this hinge is ideal for both residential and commercial applications. Its sleek rectangular form, featuring concealed screws, offers an uncluttered aesthetic that elevates the overall appearance of your shower enclosure. Designed to accommodate monolithic tempered glass, the Trento Hinge utilizes durable non-asbestos fiber (NAF) gaskets, ensuring compatibility with both 3/8" and 1/2" glass thicknesses. This functionality not only enhances grip but also adapts to varying surface conditions, promoting a tight seal and smooth operation. A standout feature of the Trento Hinge is its standard reversible pivot pin, which allows for adjustment of the door’s closed position. This flexibility enables you to shift the self-centering angle by 5 degrees, ensuring proper alignment with surrounding panels. With a maximum width of 40" and the ability to support doors up to 190 lbs when using three hinges, this product is perfect for corner, niche, and tailor-made solutions. Elevate your shower door installation with the sophisticated and functional design of the CRL Trento Hinge.
Matte Black Trento 074 Series Wall Mount Short Back Plate Hinge
- High-performance Heavy-Duty Hinge
- Wall Mount Short Back Plate
- Modern rectangular design with concealed screws
- Single NAF gasket compatible with both 3/8" and 1/2" glass
- For use with monolithic tempered glass
The CRL Trento Hinge is a heavy-duty hinge designed for modern frameless shower doors, supporting glass panels up to 150 lbs. in a standard two-hinge installation. It's sleek rectangular design with concealed mounting screws delivers a clean aesthetic that enhances the overall look of the shower enclosure without visible hardware.

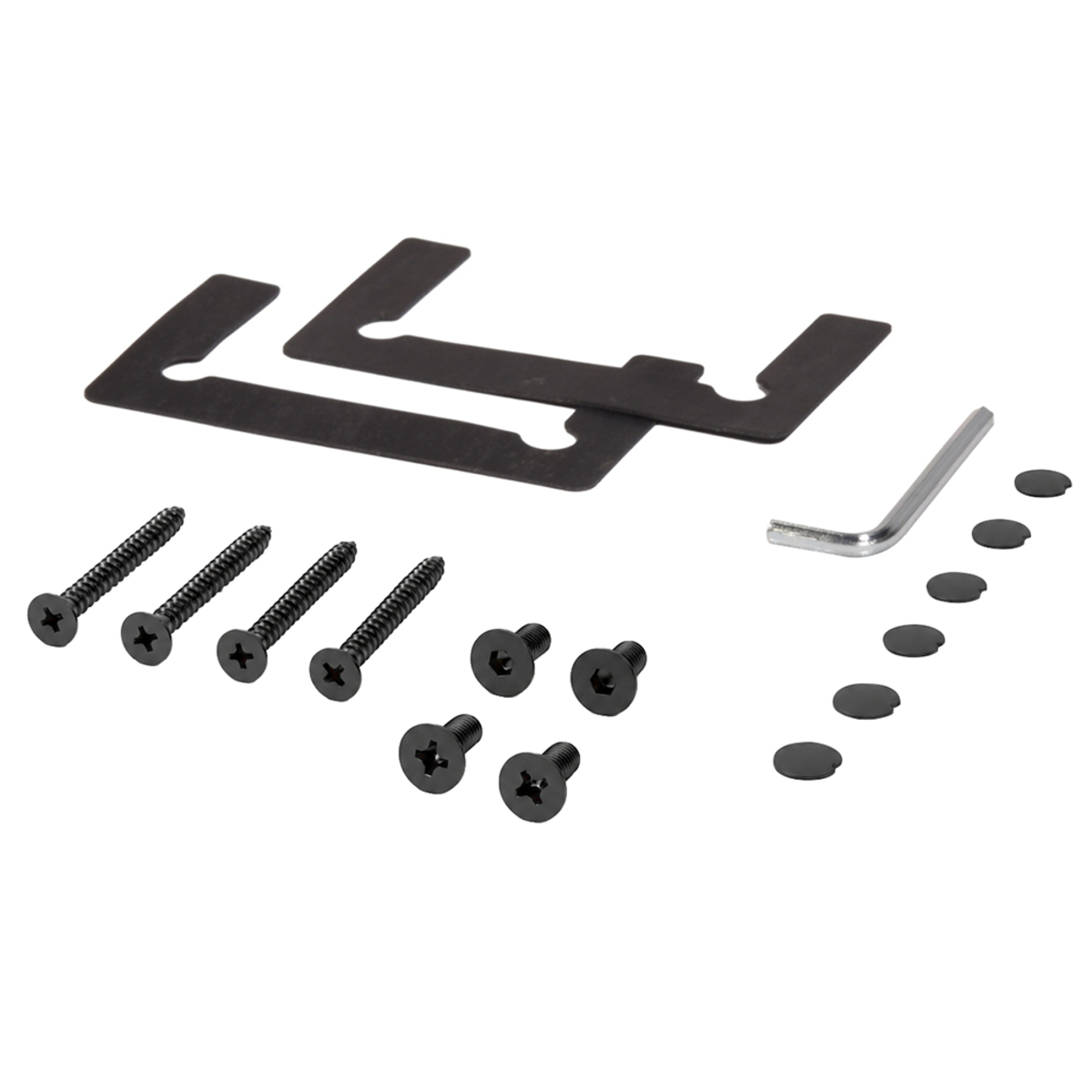

The Trento Hinge uses durable non-asbestos fiber (NAF) gaskets, compatible with both 3/8" and 1/2" (10 mm and 12 mm) monolithic tempered glass. This material adapts to help maintain a consistent grip between the hinge and glass across varying surface conditions.
STANDARD REVERSIBLE PIVOT PIN: Each Trento Hinge contains a Reversible Pivot Pin. The standard reversible pivot pin allows you to adjust the door’s closed position. By rotating (not flipping) the pin, you can shift the self-centering angle by 5 degrees—either 95° or 85°—to ensure the door closes properly and aligns correctly with surrounding panels. This adjustment helps maintain a tight seal and smooth operation.
Using two hinges with 3/8" and 1/2" (10 mm and 12 mm) glass, the hinge can support doors up to 150 lbs. (68 kg) with a maximum width of 40" (1016 mm).
Using three hinges with 3/8" and 1/2" (10 mm and 12 mm) glass, the hinge can support doors up to 190 lbs. (86 kg) for doors up to 40" (1016 mm) wide.
Product Warning:
CRL Shower Door Hinges are designed for residential or commercial shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: No
Back Plate: Short
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Square
Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ Color:: Matte Black

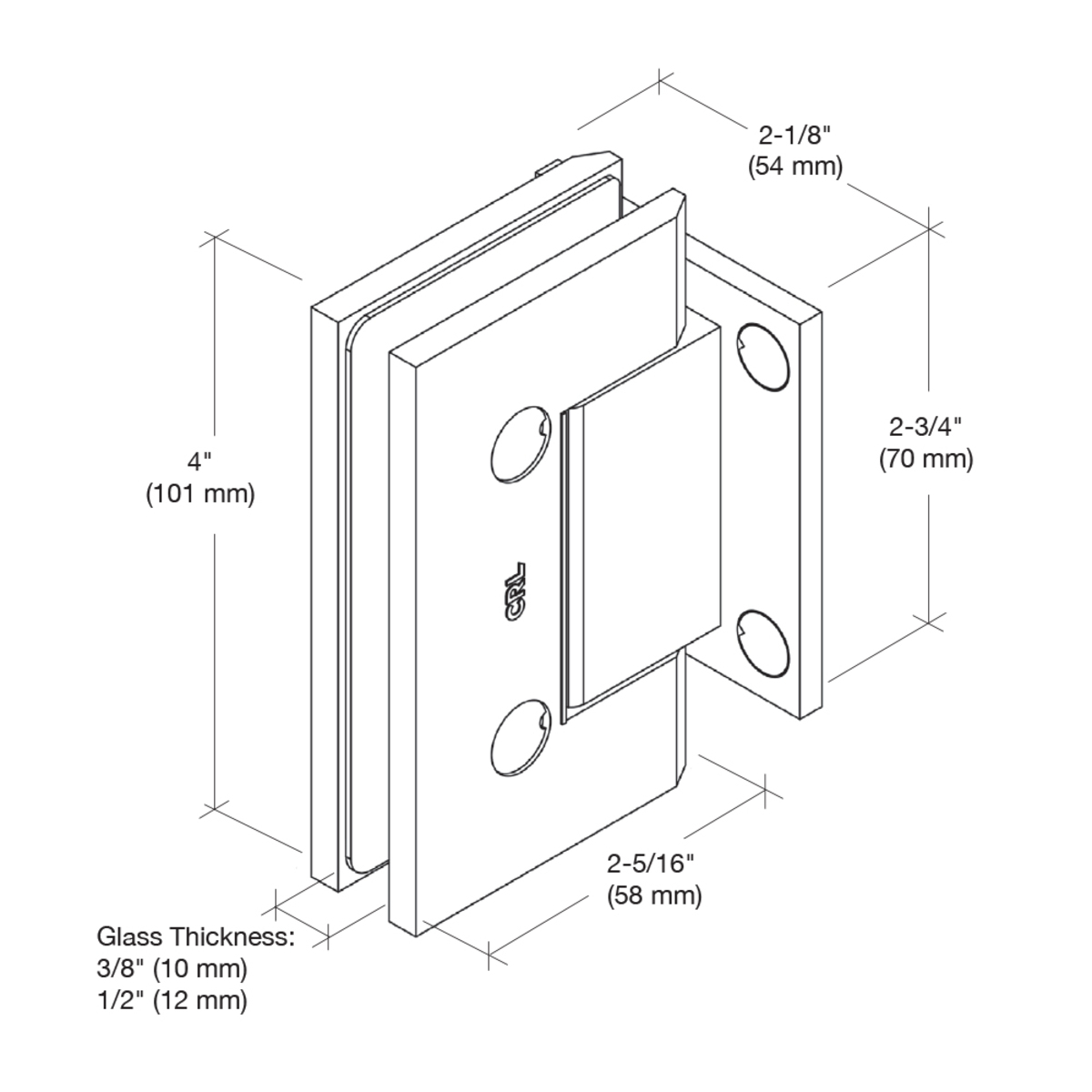

Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)
Height: 4 in. (102 mm)
Material: Brass Body with Stainless Steel Back Plate
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 150 lbs. (68 kg)
Maximum Door Weight - 3 Hinges: 190 lbs. (86 kg)
Maximum Door Width: 40 in. (1016 mm)
Maximum Door Width - 1/2 Glass - 2 Hinges: 150 lbs. (68 kg)
Maximum Door Width - 1/2 Glass - 3 Hinges: 190 lbs. (86 kg)
Mounting Type: Wall Mount
Opening Style: Swing(side)
Positive Close: No
Self- Centering: Yes
Series: Trento
Shipping Limitations: None
Width: 2-5/16 in. (58 mm)
