CRL TNT337MBL Matte Black Trento 337 Series Adjustable Wall Mount Back Hinge

CRL TNT337MBL Matte Black Trento 337 Series Adjustable Wall Mount Back Hinge

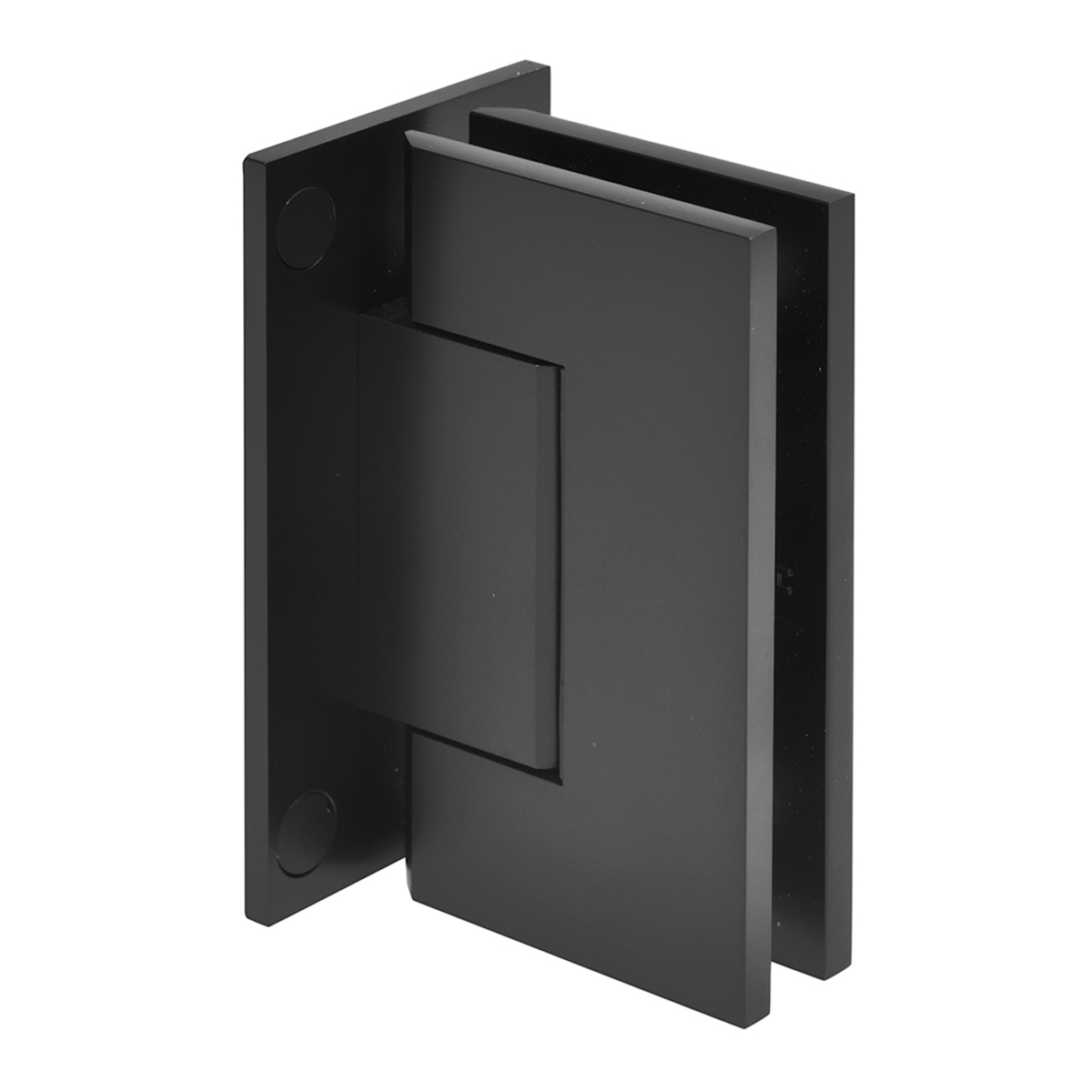

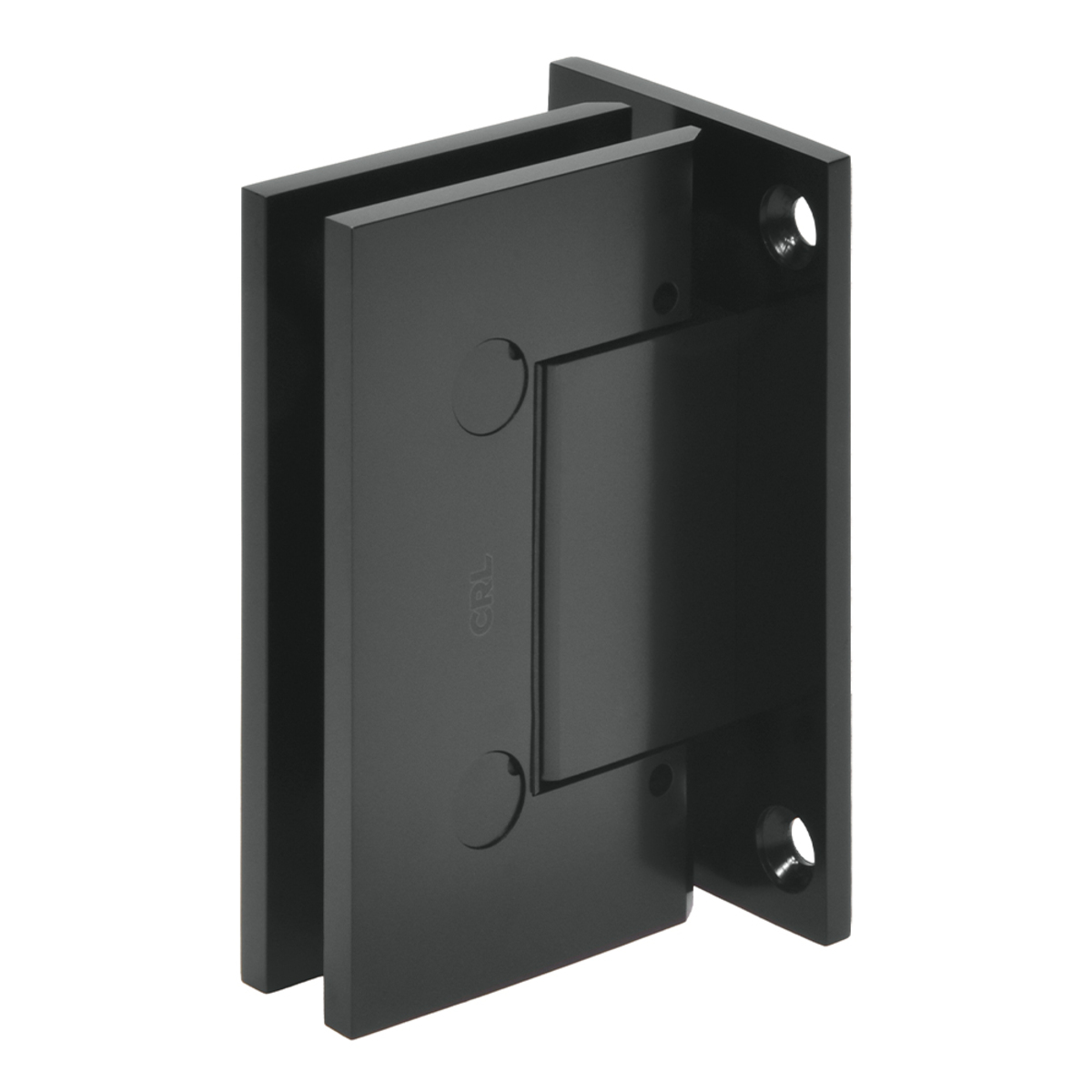

CRL TNT337MBL Matte Black Trento 337 Series Adjustable Wall Mount Full Back Hinge offers unparalleled performance and style for modern frameless shower doors. Designed to support glass panels up to 150 lbs. with a standard two-hinge installation, this heavy-duty hinge features a sleek rectangular design and concealed screws that elevate the aesthetic of any shower enclosure. Built with durable non-asbestos fiber (NAF) gaskets, the Trento hinge accommodates both 3/8" and 1/2" monolithic tempered glass, ensuring a secure grip even on varying surfaces. The adjustable feature allows for easy fine-tuning of the door's position, enabling smooth operation and a tight seal without the need to remove the door. Simply loosen the Allen set screws, adjust to your desired angle, and re-tighten for self-centering performance. With a maximum width of 40" and the capability to support a door weight of up to 190 lbs. using three hinges, this versatile hinge is ideal for corner, niche, or tailor-made solutions. The matte black finish adds a contemporary touch, making it a perfect choice for both residential and commercial applications. Trust in CRL's commitment to quality and innovation for your next glazing project.

Matte Black Trento 337 Series Adjustable Wall Mount Full Back Hinge

• High-performance Heavy-Duty Hinge

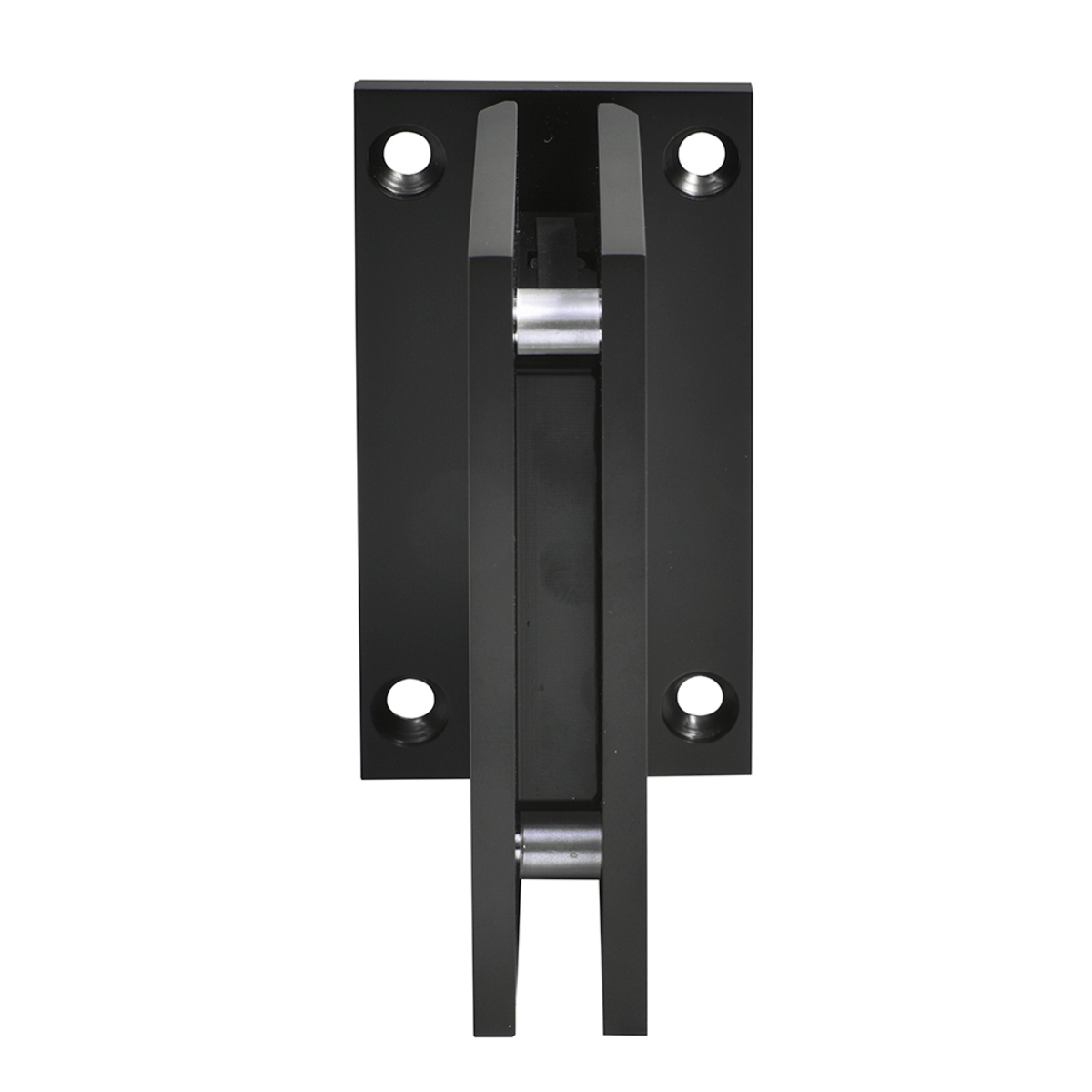

• Wall Mount Short Back Plate
• Modern rectangular design with concealed screws
• Single NAF gasket compatible with both 3/8" and 1/2" glass
• For use with monolithic tempered glass
• Adjustable to any angle up to 90° without removing the door

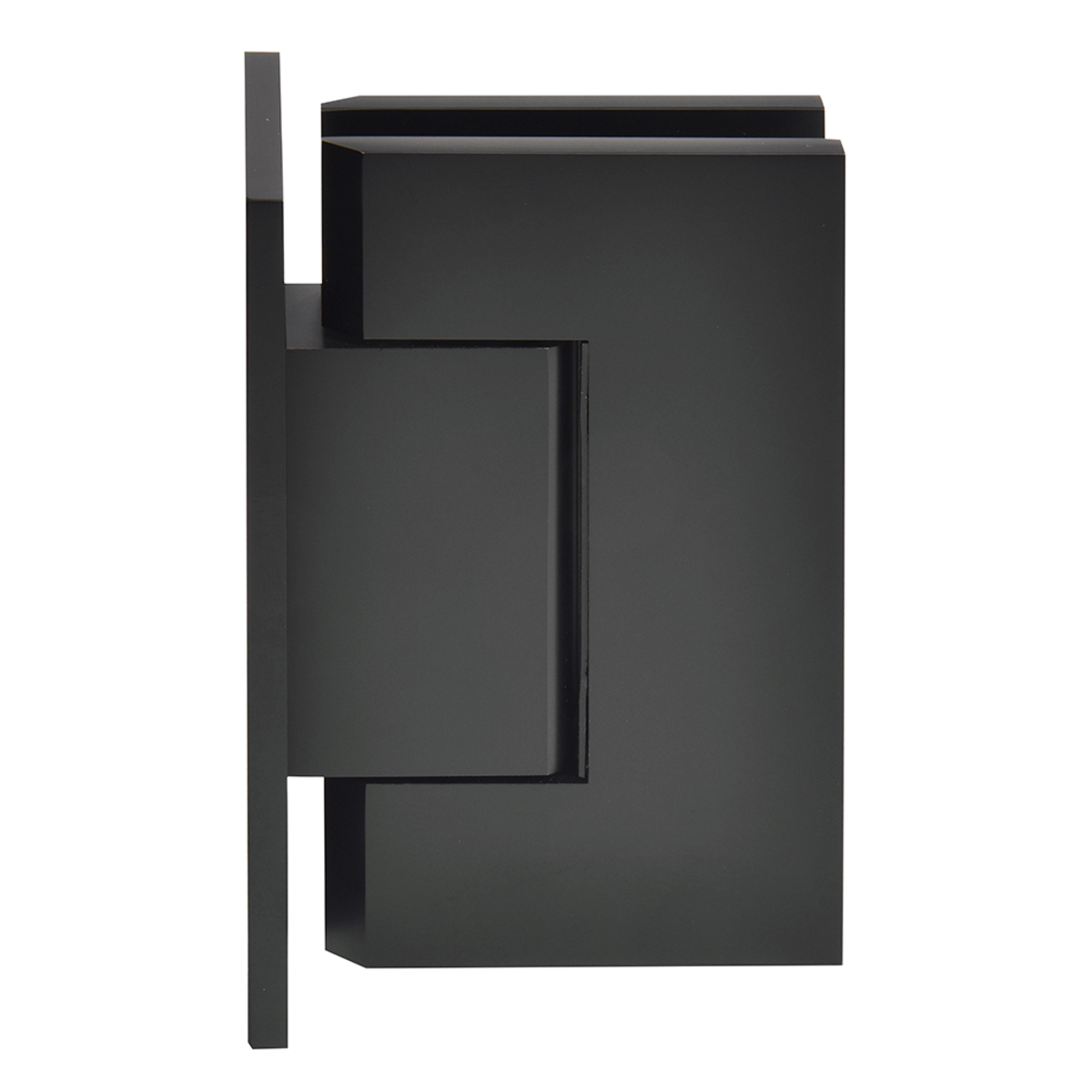

The CRL Trento Hinge is a heavy-duty hinge designed for modern frameless shower doors, supporting glass panels up to 150 lbs. in a standard two-hinge installation. It's sleek rectangular design with concealed mounting screws delivers a clean aesthetic that enhances the overall look of the shower enclosure without visible hardware.

The Trento Hinge uses durable non-asbestos fiber (NAF) gaskets, compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass. This compressible material adapts to help maintain a consistent grip between the hinge and glass across varying surface conditions.

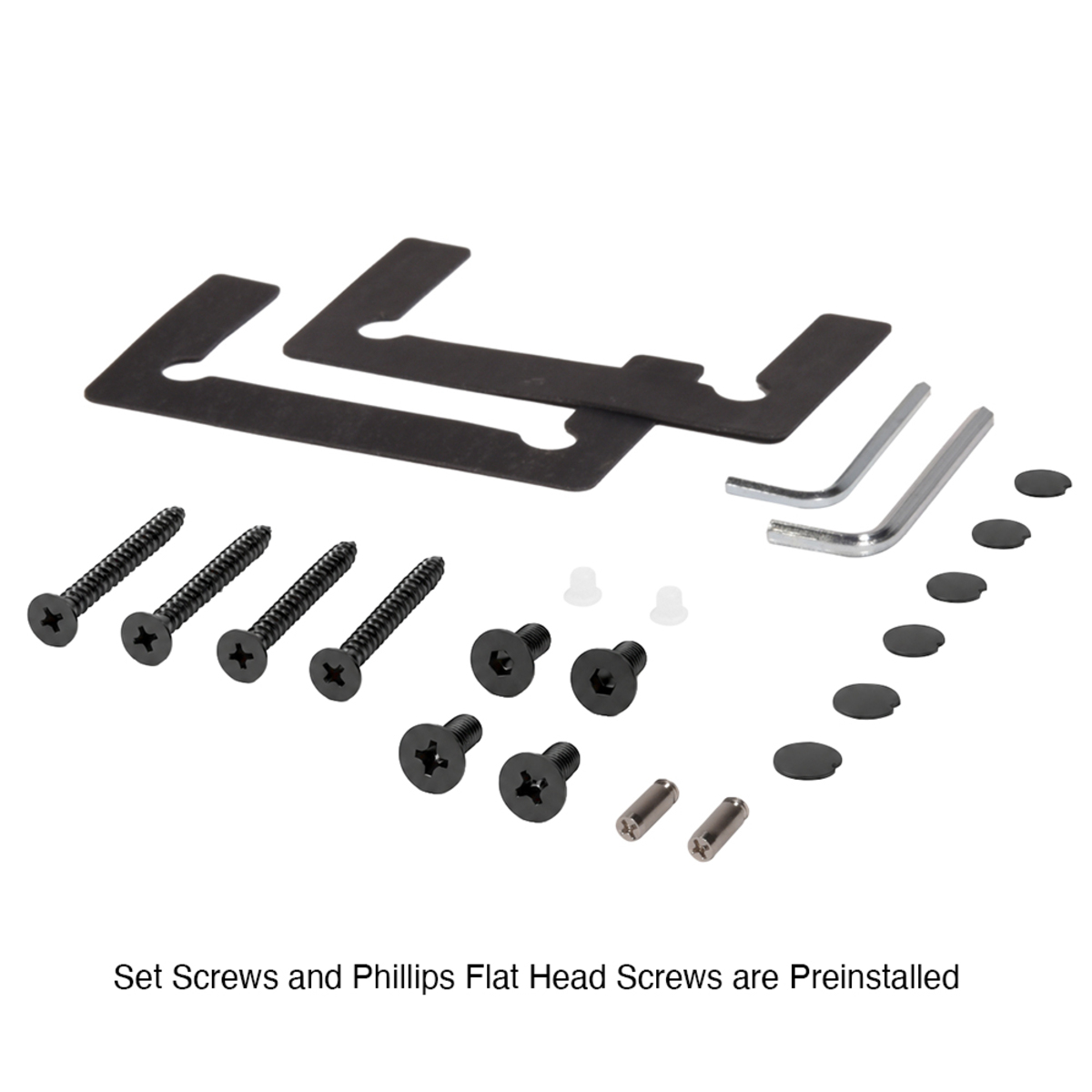

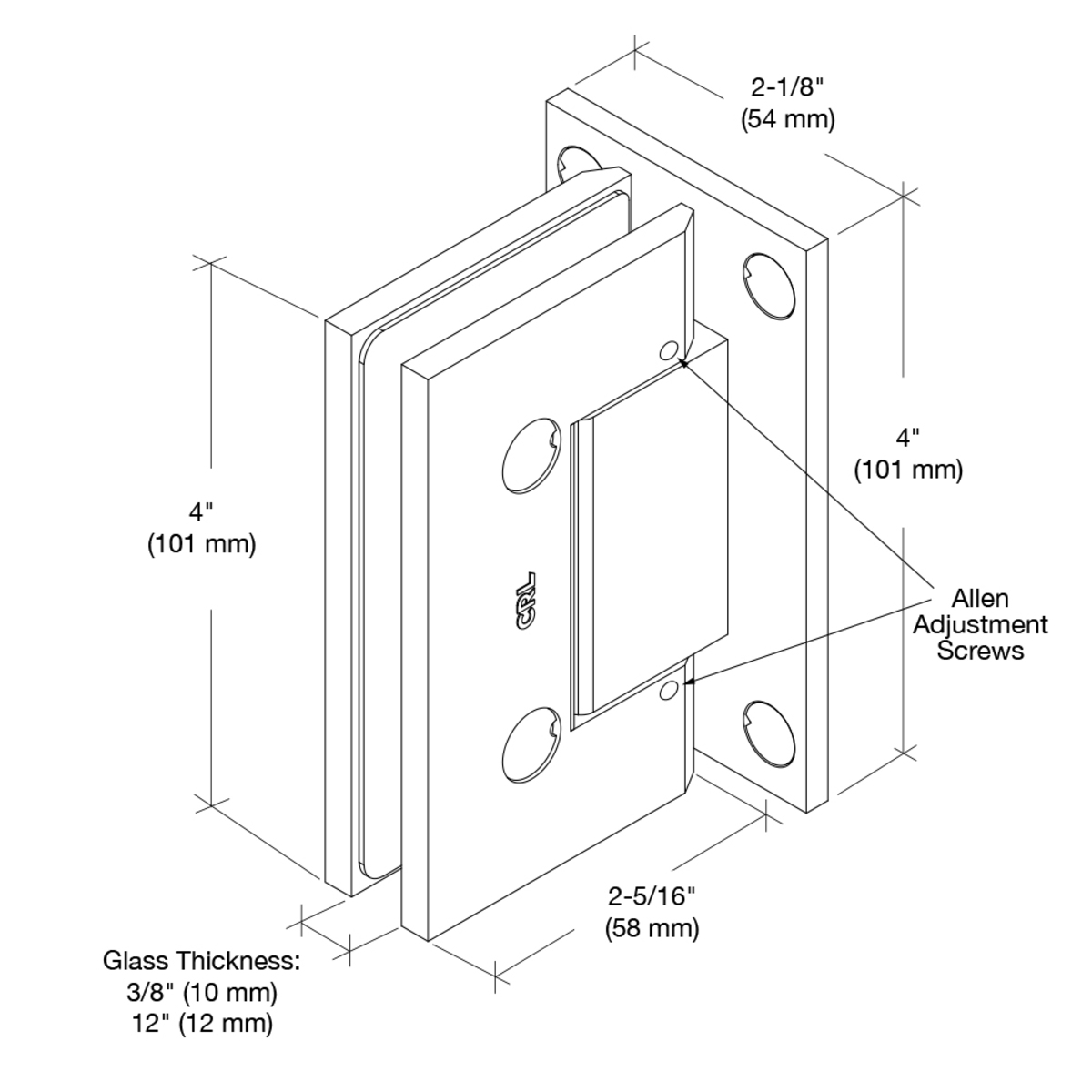

The Adjustable Trento allows you to fine-tune the position and alignment of the door after installation for smooth operation and a tight seal. Once the door is hung, simply loosen the Allen set screws and move the door to the desired closed position. By tightening the Allen screws, the door will self-center to the desired angle. The hinge supports a 90° inward and 90° outward swing from factory settings, with swing range decreasing as the closing angle is adjusted. For outward-swing applications with a clear jamb, it can be set to close up to 5° inside the shower area for a secure, tight seal against the jamb.

Using two hinges with 3/8" and 1/2" (10 and 12 mm) glass, the hinge can support doors up to 150 lbs (68 kg) with a maximum width of 40" (1016 mm).

Using three hinges with 3/8" and 1/2" (10 and 12 mm) glass, the hinge can support doors up to 190 lbs. (86 kg) for doors up to 40" (1016 mm) wide.

Product Warning:

CRL Shower Door Hinges are designed for residential or commercial shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
