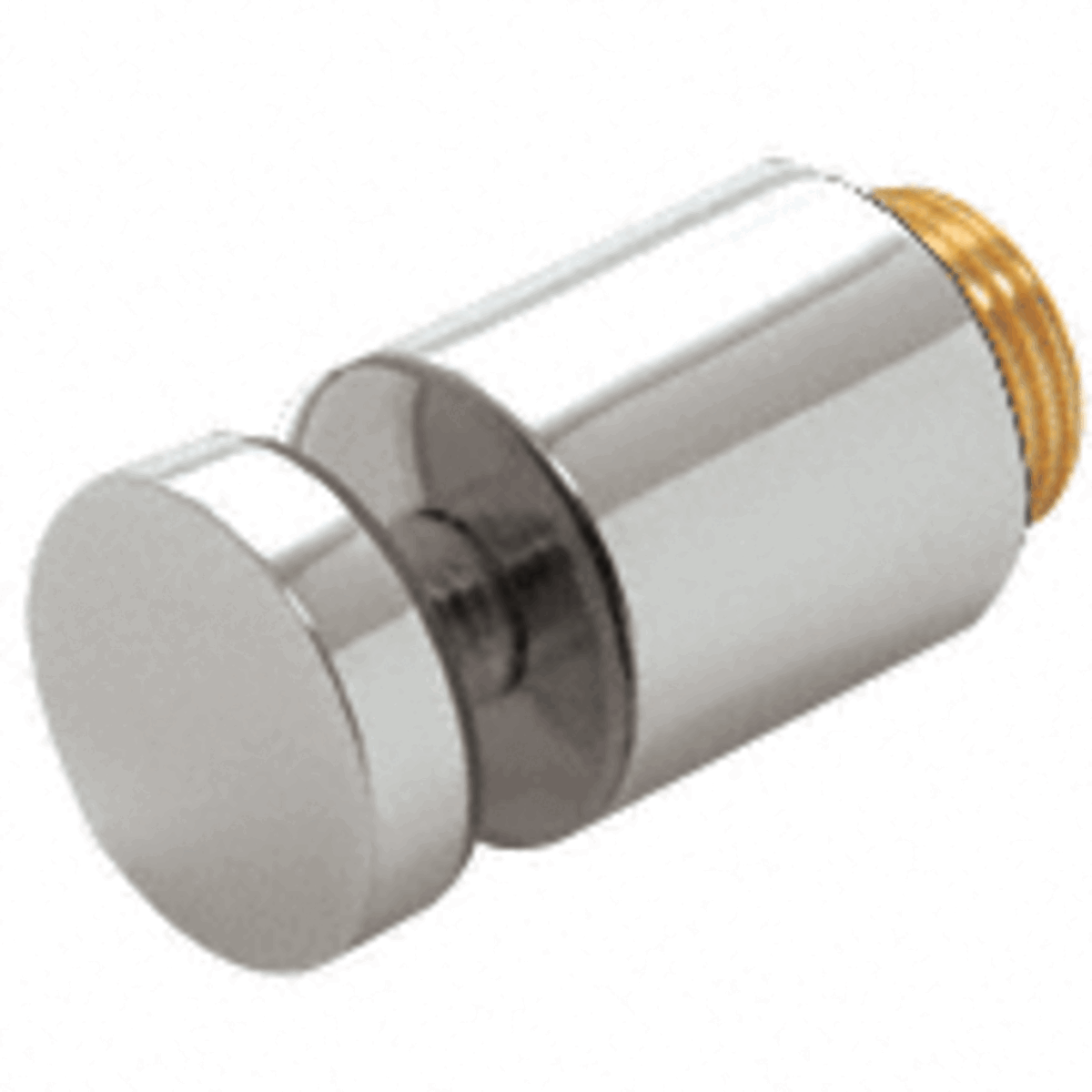

CRL TS1CH Chrome 1" Tube StandoffC.R. Laurence TS1CH Chrome 1" Diameter Tube Style Standoff offers a sleek and modern solution for mounting vertical panels or displays with ease. Available in polished chrome or satin chrome finishes, these standoffs combine aesthetic appeal with practical functionality. Each unit includes a compact design featuring a 1" (25.4 mm) long base, threaded insert, cap with welded stud, clear washers, and a vinyl sleeve, ensuring a straightforward installation process. Designed to accommodate both 5/8" (16 mm) and 1" (25.4 mm) diameter applications, these standoffs are perfect for a variety of uses, including exhibit building, decorative acrylic panels, signage, or lightweight glass displays. For optimal installation, the 5/8" standoffs require 9/32" (7 mm) drilled holes, while the 1" standoffs need 7/16" (11 mm) holes. The maximum recommended panel thickness is 3/8" (10 mm). Installation is quick and efficient-simply attach the threaded insert to the substrate, screw on the standoff base, and install the cap assembly through the panel. Keep in mind that weight limitations depend on the strength of the wall or substrate anchoring. Elevate your display projects with the reliability and elegance of C.R. Laurence Tube Style Standoffs.
Chrome 1" Diameter Tube Style Standoff
- Convenient Compact Design Includes Base, Cap, Stud, and Washers
- Two Diameters - 5/8" (16 mm) and 1" (25.4 mm)
- Available in Two Finishes
Available in chrome or satin chrome finishes,
CRL's Tube Style Standoffs are new and very unique. The 5/8" (16 mm) and 1" (25.4 mm) diameter Standoffs come complete with 1" (25.4 mm) long Base, Threaded Insert, and Cap with welded stud including clear washers and vinyl sleeve. Tube Style Standoffs are ideal for exhibit building, decorative acrylic panels, signage or lightweight glass displays. Designed primarily for the installation of vertical panels or displays, Tube Style Standoffs can also be used for horizontal applications such as elevating a glass top on a table or desk.
Required Panel Fabrication: 5/8" (16 mm) diameter Standoffs require 9/32" (7 mm) holes for installation; 1" (25.4 mm) diameter Standoffs require 7/16" (11 mm) drilled holes. The maximum recommended panel thickness is 3/8" (10 mm).
Installation is quick and easy. Using the Cat. No. 8X2FHPSMS Screw, simply attach Threaded Insert to substrate, screw-on Standoff Base, install Cap Assembly through the panel and you're done.
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25.4 mm)
Finish/ Color:: Polished Chrome
Glazing Thickness: 3/8 in. (10 mm)
Length: 1 in. (25.4 mm)
Material: Brass
Shipping Limitations: None
