CRL TTU1ABX1 Norcon 115V AC Electronic Communicator Level 1 Bullet Resistant

CRL TTU1ABX1 Norcon 115V AC Electronic Communicator Level 1 Bullet Resistant

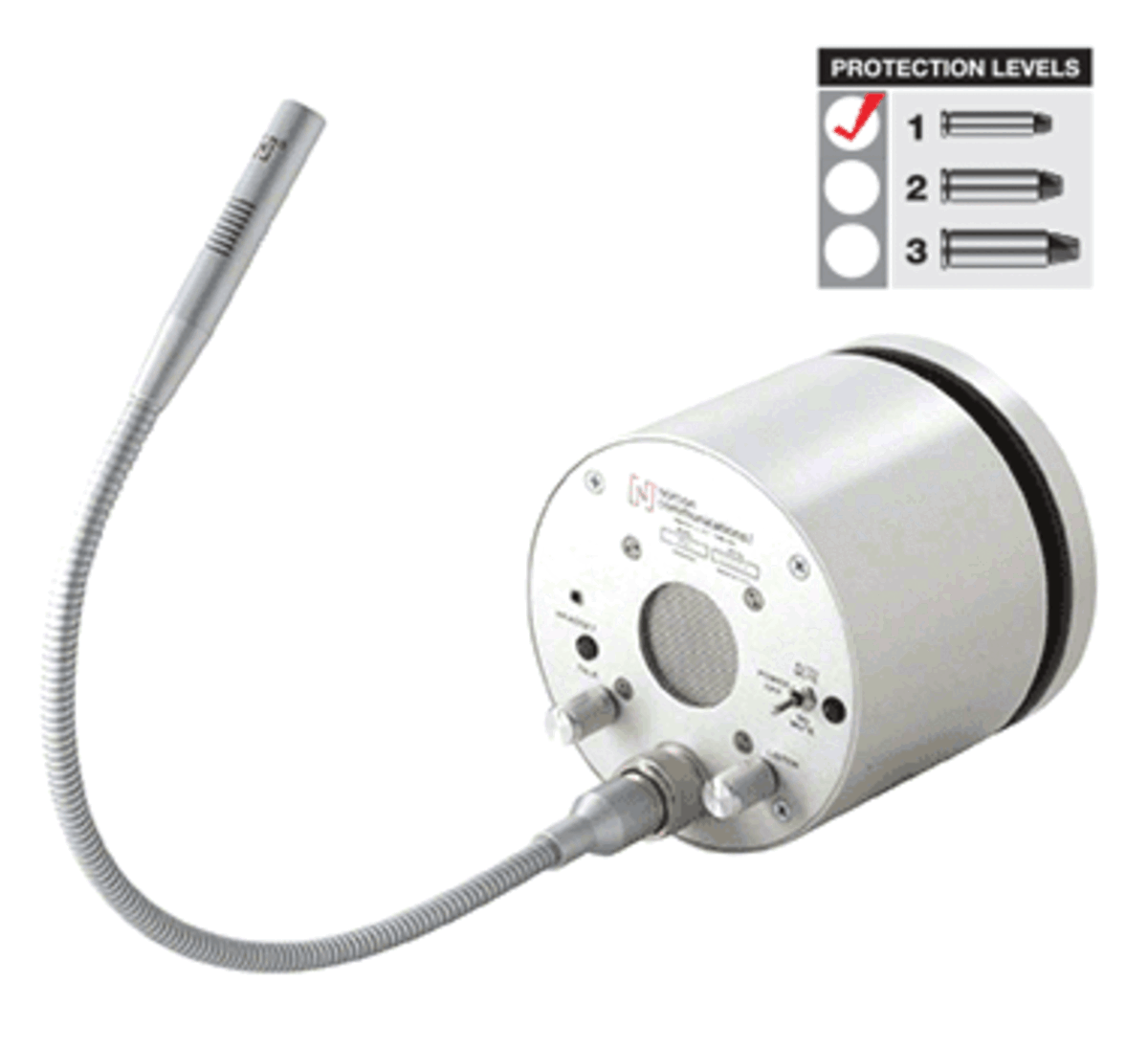

C.R. Laurence TTU1ABX1 Norcon 115V AC Standard Electronic Communicator Level 1 Bullet Resistant provides a reliable solution for secure environments where clear communication is essential. Designed with Level 1 ballistic protection, this self-contained electronic communicator enables hands-free, two-way conversation while maintaining a secure barrier. The Auto-Mute mode activates the device when the clerk speaks, ensuring seamless interaction. Constructed from durable aluminum with a sleek satin anodized finish, the TTU1ABX1 model is specifically pre-set for glazing thicknesses up to 1-3/16 inches (30 mm). For custom glass thicknesses, the optional TTU1X Extension Kit can be utilized, accommodating up to 2-3/4 inches (70 mm). Installation is straightforward, requiring a 3 to 4-inch (76 to 102 mm) hole for setup. This product includes a removable gooseneck microphone and supports the optional TTU1HS Hands-Free Headset for enhanced user experience. Complete with mounting hardware and power supply, the TTU1ABX1 is ready for immediate installation. Compliant with UL 752 standards, this communicator is designed to meet the needs of both building professionals and knowledgeable homeowners seeking security without sacrificing communication clarity.

Norcon 115V AC Standard Electronic Communicator Level 1 Bullet Resistant

• Breaks the Acoustical Barrier with Clear, Reliable, Hands-Free Two-Way Conversation
• Level 1 Ballistic Protection
• Level 1 Model with bolts for glazing in 1-3/16"+/- range
• Use Extension Kit TTU1X for Custom Thicknesses

The CRL Norcon Bullet Resistant Thru-Glass Two-Way Electronic Communicator is a self-contained, easily installed device that allows clear, intelligible two-way conversation in locations where security must be maintained, with Level 1 ballistic protection. In its Auto-Mute mode the communicator is automatically activated when the clerk speaks for hands-free operation. You can select either the 115V AC model ("A" type), or the 12V DC battery powered model ("D" type). The new "X" Series models all have a removable gooseneck microphone.


The New "X" Series Norcon Communicators all have a removable gooseneck microphone. Both the "A" Type plug-in models and the "D" Type rechargeable battery models include a receptacle for use with the optional TTU1HS Hands-Free Headset. All Norcon units are supplied complete with mounting hardware, instructions, and power supply. The TTU1X Extension Kit for glass up to 2-3/4" (70 mm) thick may be ordered separately.

NOTE: Non-Bullet resistant models include bolts for glass up to 1/2" (12 mm) thick. Level 1 Bullet resistant models are pre-set for glazing up to 1-3/16" (30mm)thick. Level 3 Bullet resistant models are pre-set for glazing up to 1-11/16" (43mm) thick.

SPECIFICATIONS:
Material: Aluminum
Finish: Satin Anodized
Bullet Resistance: Level 1
Instructions Included
Glass Fabrication: Requires 3" to 4" (76 to 102 mm) Hole for Installation


Product Warning:

THIS PRODUCT HAS A ONE YEAR LIMITED WARRANTY FOR REPAIR ONLY. Contact CRL Transaction Hardware Department for product support or questions [email protected]

Resources

• Norcon TTU - 1X Series Installation and Operating Instructions
• TTU-1ABX Product Information
