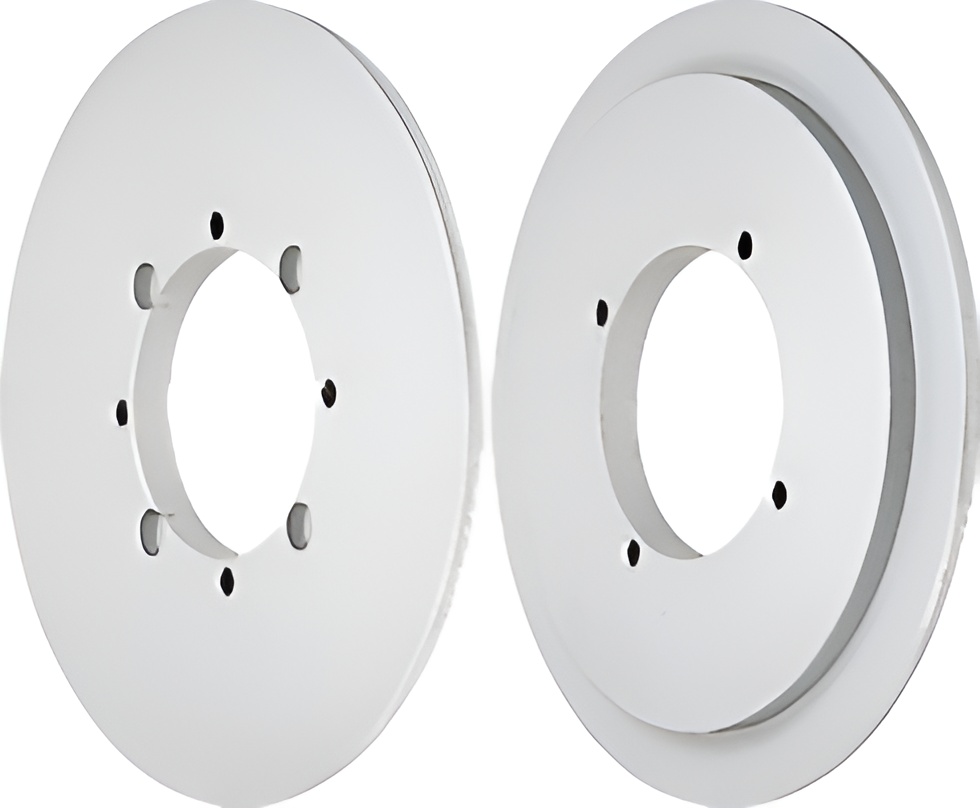

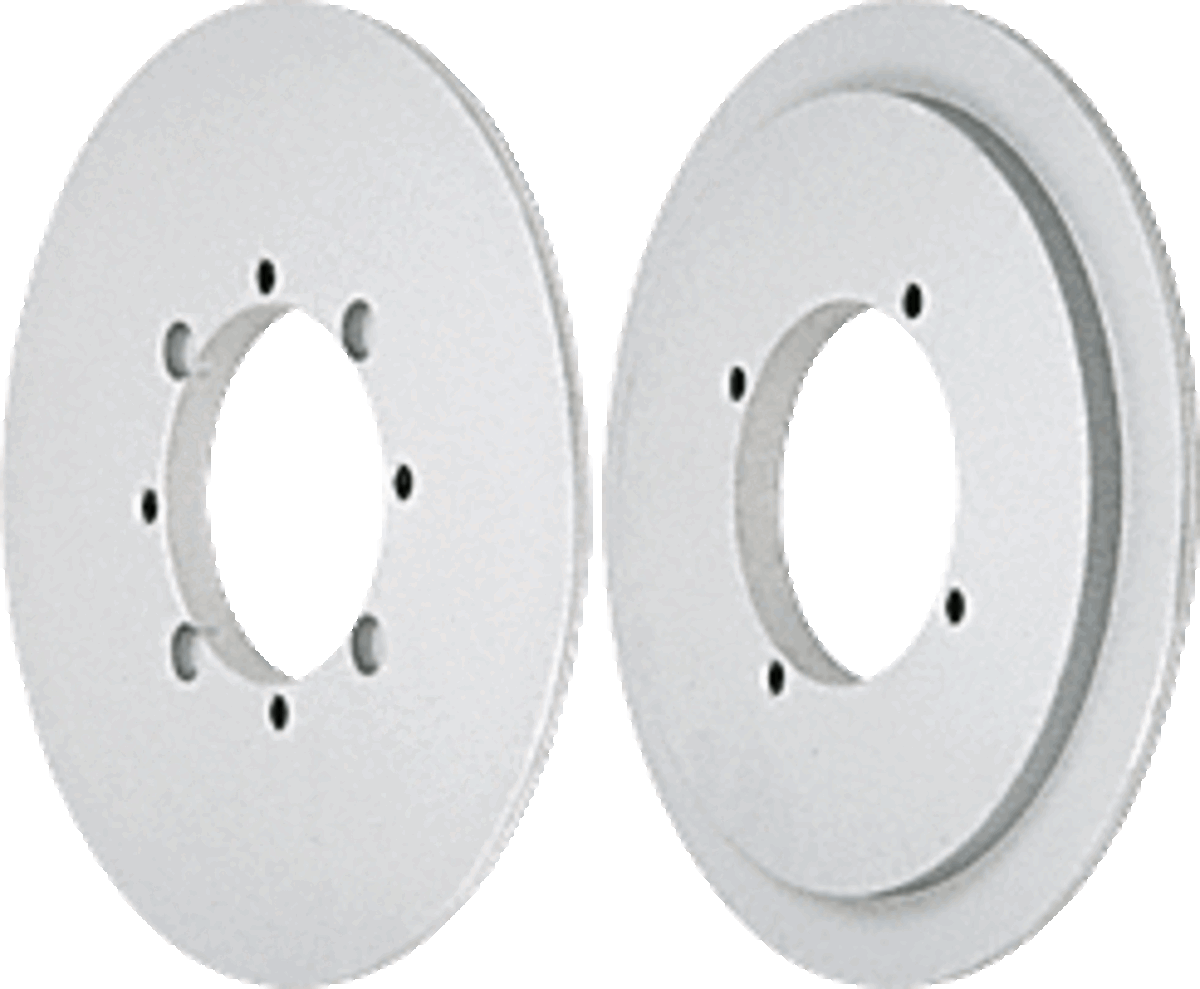

C.R. Laurence TTU1ADAPTER Thru-Glass Communicator Adapter for 5" Hole offers a reliable solution for installing CRL Thru-Glass Communicators in precisely sized openings. Crafted for use with 5" (127 mm) diameter holes, this adapter is designed to accommodate glazing with a minimum thickness of 1/2" (12 mm). For applications requiring glazing thicknesses between 1/4" to 3/8" (6 to 10 mm), a special order adapter can be arranged through the CRL Technical Sales Department. Constructed from durable aluminum with a sleek satin anodized finish, the TTU1ADAPTER not only enhances aesthetic appeal but also ensures longevity and performance. With a depth of 3/4" (19.1 mm) and an overall diameter of 6" (152.4 mm), it fits seamlessly into various architectural designs. The product complies with UL 752 standards, ensuring it meets necessary safety regulations. Additionally, the adapter maintains a protection level of 3, making it suitable for numerous environments. Shipping is convenient, as it can be sent via UPS without limitations. For those in search of a dependable and professional-grade solution for thru-glass installations, the C.R. Laurence TTU1ADAPTER stands out as an excellent choice.
Thru-Glass Communicator Adaptor for 5" Hole
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Code Compliances: UL 752
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 3/4 in. (19.1 mm)
Diameter: 6 in. (152.4 mm)
Finish/ Color:: Satin Anodized
Glazing Thickness: 1/2 in. To 1-11/16 in. (12+M2593 mm To 43 mm)
Material: Aluminum
Protection Level: 3
Shipping Limitations: None
