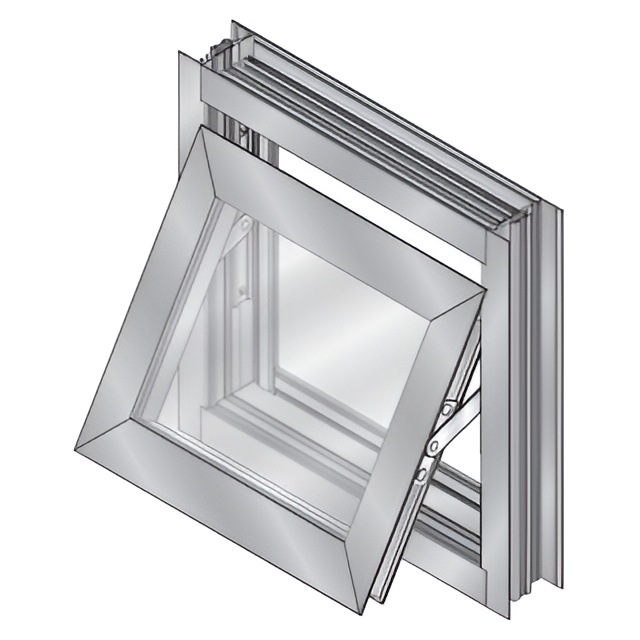

CRL TV20152 U.S. Aluminum 7200 Series White KYNAR Project-Out Bottom Vent Window

CRL TV20152 - U.S. Aluminum White KYNAR Paint 7200 Series Project-Out Bottom Vent Window is engineered for superior thermal performance with its thermally broken system, ensuring energy efficiency for commercial and residential applications. This window is designed with a .062" nominal wall thickness, providing durability and strength while maintaining an elegant appearance. The construction features stainless steel 4-bar hinges and die-cast cam locking handles, which facilitate smooth operation and secure closure. Rated CW-75 AAMA with reinforced corners and an aluminum corner key, this window meets high standards for performance and reliability. Each unit is built for dry glazing, utilizing tape on the outside and E.P.D.M. elastomeric wedges on the inside for a tight, weather-resistant seal. Optional hardware such as roto operators, limit devices, and friction adjusters allow for customizable functionality, while additional extrusions like head and jamb channels can be tailored to specific project needs. Available in a striking white Kynar finish, the CRL TV20152 not only meets practical requirements but also enhances aesthetic appeal. This project-out bottom vent window is an excellent choice for any building professional looking to combine functionality with modern design, making it a valuable addition to your architectural projects.

-U.S. Aluminum White KYNAR Paint 7200 Series Project-Out Bottom Vent Window

• Thermally Broken System for Exceptional Thermal Performance
• Stainless Steel 4-Bar Hinges and Die Cast Cam Locking Handles
• .062" Nominal Wall Thickness
• CW-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
