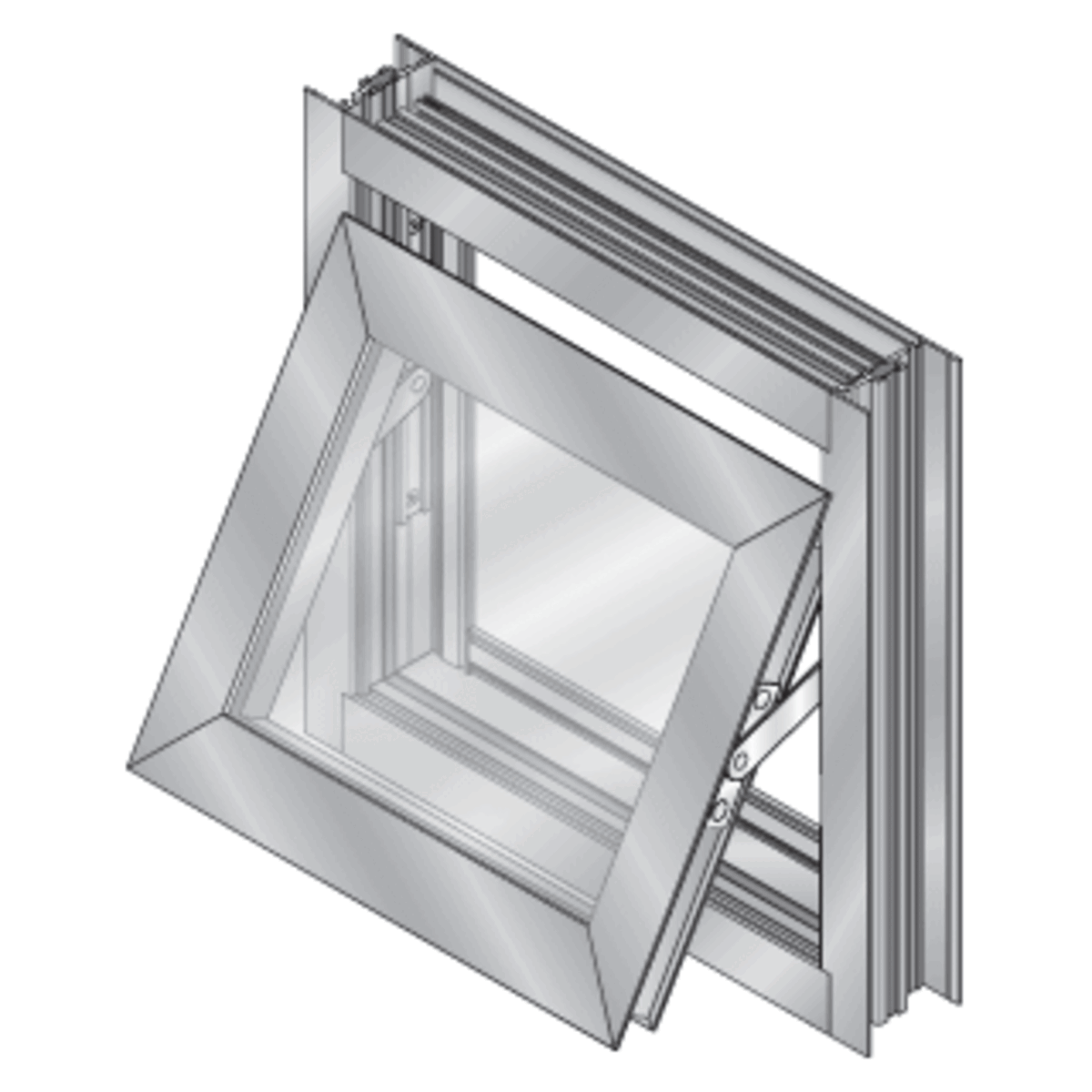

CRL TV20171 U.S. Aluminum KYNAR 7200 Series Project-Out Bottom Vent Window

CRL TV20171 - U.S. Aluminum Custom KYNAR Paint 7200 Series Project-Out Bottom Vent Window offers a robust solution for your architectural needs. This window is CW-75 AAMA rated and features reinforced corners with an aluminum corner key, ensuring durability and structural integrity. With a nominal wall thickness of .062 inches and a thermally broken system, it provides exceptional thermal performance, making it ideal for energy-efficient designs. Equipped with stainless steel 4-bar hinges and die-cast cam locking handles, the CRL TV20171 combines functionality with security. The window units are designed for dry glaze with tape on the exterior and E.P.D.M. elastomeric wedges on the interior, allowing for a seamless installation with 1-inch glass (not included). The vent construction utilizes tubular members that are mitered and reinforced, ensuring longevity and reliability. For added convenience, optional hardware such as a roto operator, limit device, and friction adjuster is available, along with various extrusions for customization. The project-out bottom vent configuration includes standard stainless steel hinges, maximizing performance while accommodating the weight of the sash. This window is an excellent choice for both commercial and residential applications, blending style and practicality.

-U.S. Aluminum Custom KYNAR Paint 7200 Series Project-Out Bottom Vent Window

• CW-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
• .062" Nominal Wall Thickness
• Thermally Broken System for Exceptional Thermal Performance
• Stainless Steel 4-Bar Hinges and Die Cast Cam Locking Handles
