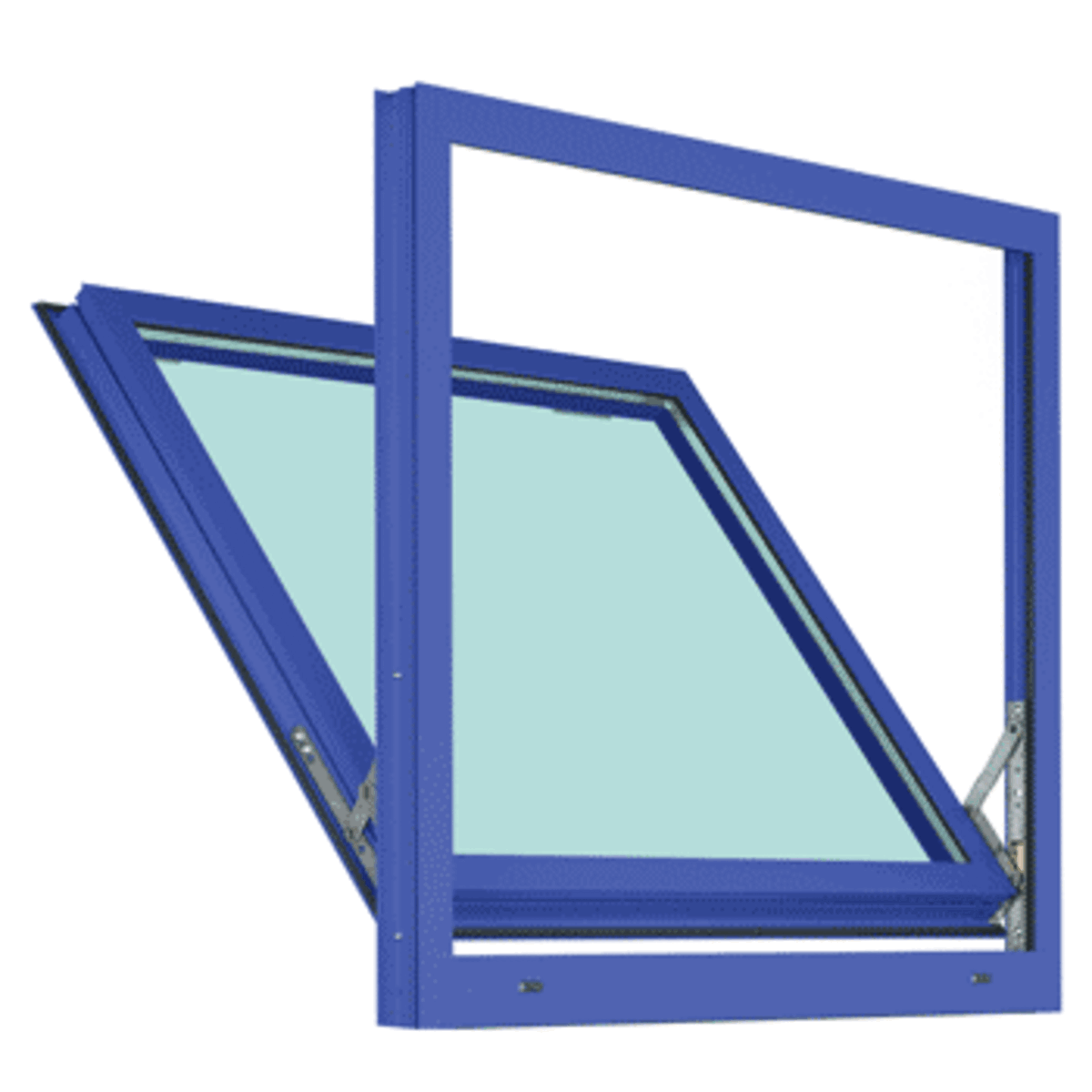

CRL TV20422 U.S. Aluminum Dark Bronze/Black Anodized 7200 Series Top Vent Window

CRL TV20422 -U.S. Aluminum DARK Bronze/Black Anodized Class 1 7200 Series Project-In Top Vent Window for 1" Glazing is engineered for superior performance and aesthetic appeal. This window features a C-75 AAMA rating, ensuring durability with reinforced corners secured by an aluminum corner key. Its .062" nominal wall thickness enhances structural integrity while the thermally broken system delivers exceptional thermal performance, making it an ideal choice for energy-efficient designs. Designed for dry glazing, the window incorporates tape on the outside and an E.P.D.M. elastomeric wedge on the inside, accommodating 1" glazing (not included). The vent construction employs tubular members that are mitered and hydraulically crimped for added strength. Operating hardware includes robust stainless steel 4-bar hinges and diecast cam locking handles, providing reliable functionality and security. Optional hardware such as limit devices, friction adjusters, access control locks, and screens are available to customize the window to meet specific needs. With a sleek dark bronze anodized finish, this window not only complements a variety of architectural styles but also ensures long-lasting performance. The CRL TV20422 is a versatile solution for modern building projects that demand quality and efficiency.

-U.S. Aluminum DARK Bronze/Black Anodized Class 1 7200 Series Project-In Top Vent Window for 1" Glazing

• C-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
• .062" Nominal Wall Thickness
• Thermally Broken System for Exceptional Thermal Performance
• Stainless Steel 4-Bar Hinges and Diecast Cam Locking Handles
