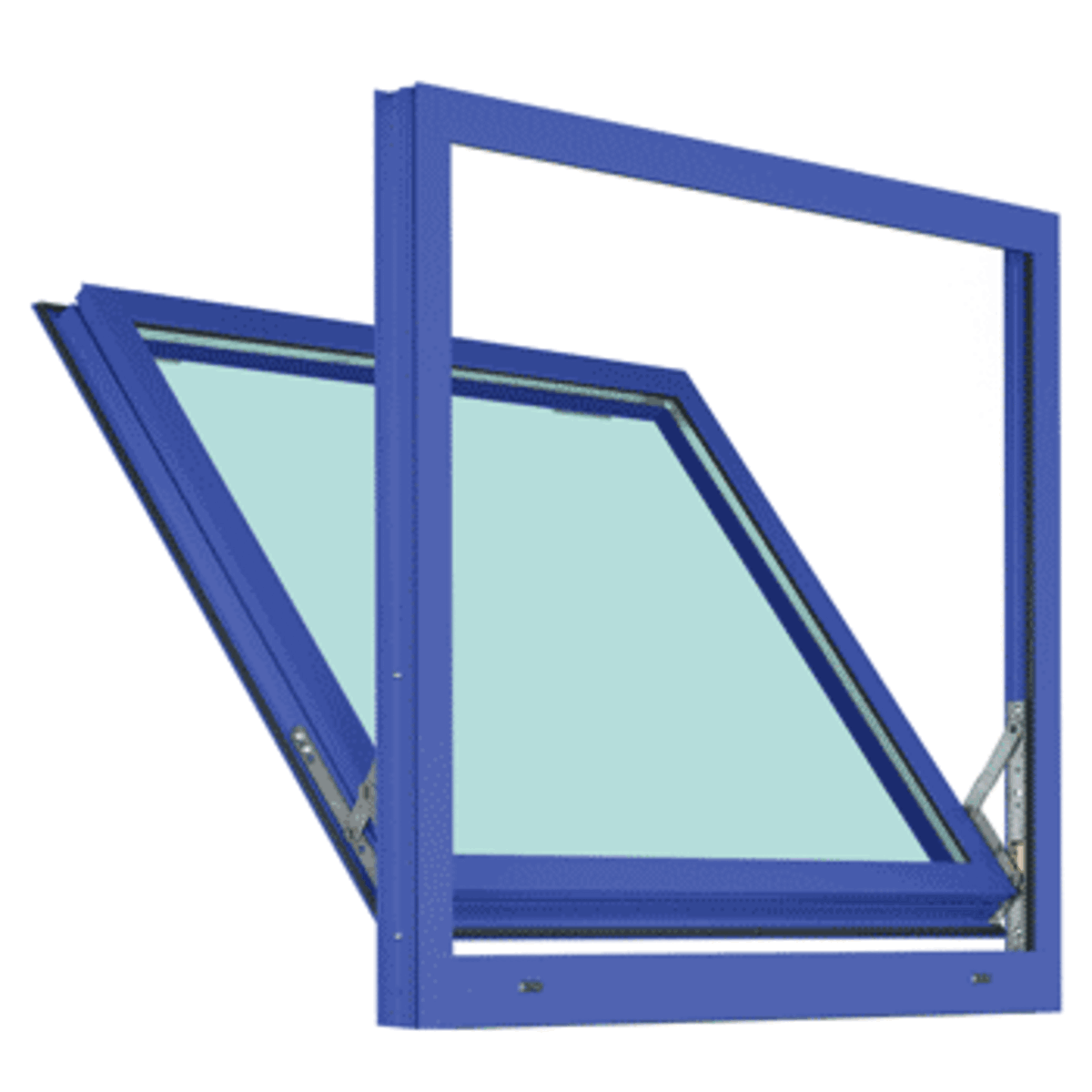

CRL TV20452 U.S. Aluminum 7200 Series White KYNAR Project-In Top Vent Window for 1" Glazing

CRL TV20452 - U.S. Aluminum White KYNAR Paint 7200 Series Project-In Top Vent Window for 1" Glazing delivers exceptional performance and durability for any architectural project. With a nominal wall thickness of .062", this window is designed to withstand the elements while providing a sleek and modern aesthetic. It features C-75 AAMA rating and reinforced corners with an aluminum corner key, ensuring robust structural integrity. The thermally broken system enhances thermal performance, making it ideal for energy-efficient applications. Equipped with stainless steel 4-bar hinges and diecast cam locking handles, this window combines functionality with security. The project-in top vent construction utilizes tubular members that are mitered and hydraulically crimped, ensuring a tight fit and reliable operation. Designed for dry glaze installation, this window employs tape on the outside and E.P.D.M. elastomeric wedge on the inside for 1" glazing (not included). Please note that standard 4-bar stainless steel hinges have a limit based on hinge length and sash weight, and no 90-degree 4-bar hinges are available for project-in vents. With a striking white Kynar finish, the CRL TV20452 not only enhances your building's aesthetic but also ensures longevity against various weather conditions. Ideal for professionals seeking quality and style in their glazing solutions.

-U.S. Aluminum White KYNAR Paint 7200 Series Project-In Top Vent Window for 1" Glazing

• .062" Nominal Wall Thickness
• C-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key
• Thermally Broken System for Exceptional Thermal Performance
• Stainless Steel 4-Bar Hinges and Diecast Cam Locking Handles
