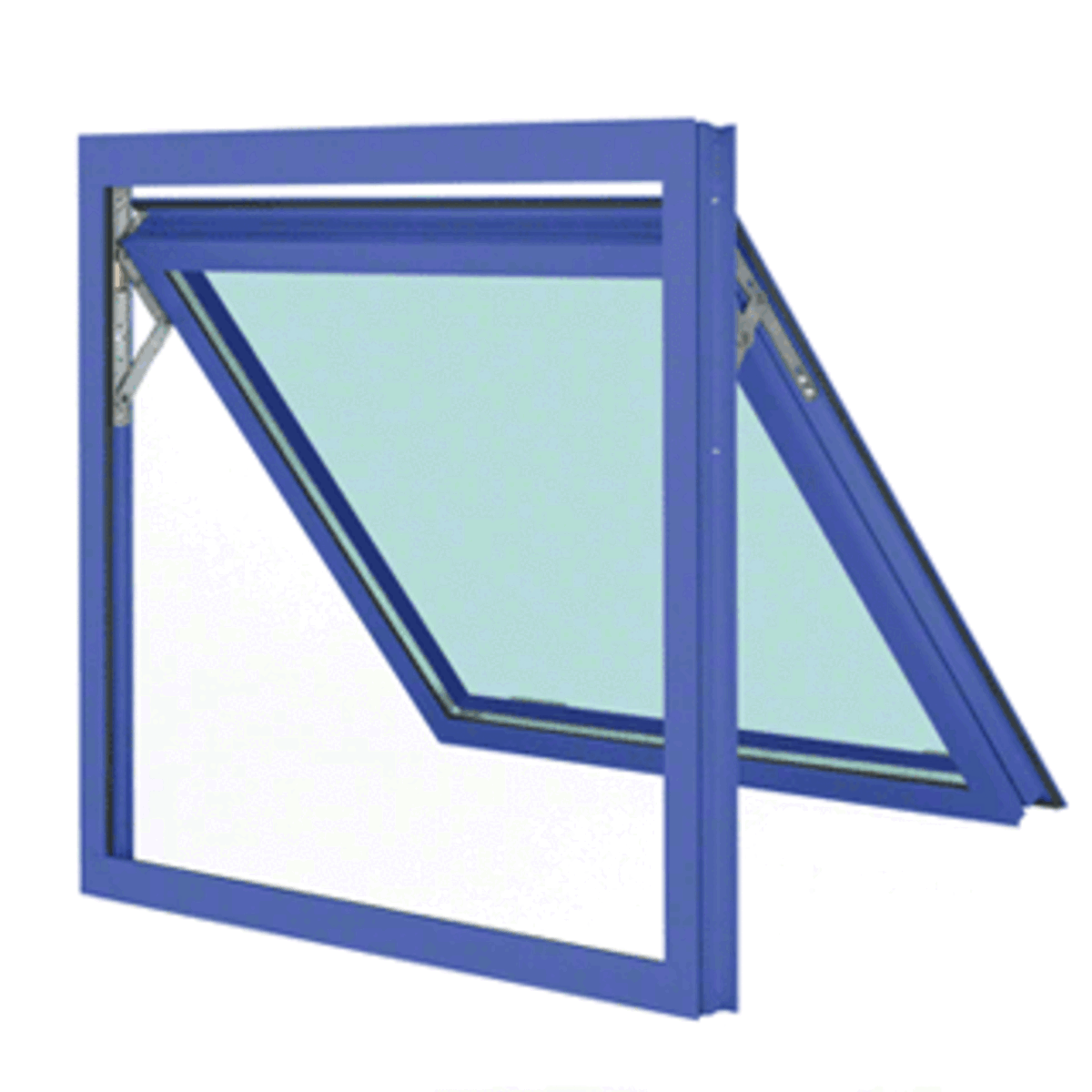

CRL TV40171 U.S. Aluminum KYNAR 7400 Series Thermally Broken Project-Out Vent Window

CRL TV40171 -U.S. Aluminum Custom KYNAR Paint 7400 Series Thermally Broken Project-Out Bottom Vent Window for 1" Glazing delivers exceptional performance and versatility for modern architectural needs. This window is AW-95 AAMA rated, ensuring it meets stringent standards for quality and durability. With a .125" nominal wall thickness and a polyamide strut thermal break, it effectively minimizes thermal transfer, enhancing energy efficiency in any building. Designed for flexibility, this window can be configured as projected, fixed, or casement, allowing for tailored solutions in various applications. The construction features tubular members that are mitered and reinforced with an extruded aluminum corner key, ensuring robust integrity, while the hydraulic crimping guarantees a secure assembly. Operating hardware includes stainless steel 4-bar hinges and cam locking handles, providing both durability and ease of use. Optional hardware such as a roto operator, limit device, and access control lock screens enhance functionality, catering to specific project requirements. For added adaptability, optional extrusions like head and jamb channels, subsills, and mulling bars are available. The custom Kynar finish offers aesthetic appeal while ensuring long-lasting performance. Ideal for professionals seeking a reliable and stylish window solution, the CRL TV40171 is a top choice for any architectural project.

-U.S. Aluminum Custom KYNAR Paint 7400 Series Thermally Broken Project-Out Bottom Vent Window for 1" Glazing

• AW-95 AAMA Rated
• .125" Nominal Wall Thickness
• Polyamide Strut Thermal Break
• Projected, Fixed, or Casement

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7400 Casement Inswing - AAMA Class CW-PG 50-C 36X72 - Report CCLI 09-039
• Series 7400 Casement Outswing - AAMA Class C-C70 43X62 - Report 68583.01-801-47
• Series 7400 Fixed - AAMA Class F-AW 95 60 X 96 - CCLI-02-160
• Series 7400 Fixed - Thermal Performance - AAMA 1503 - Report A3935.02-301-46
• Series 7400 Fixed - Thermal Performance - NFRC 102 - Report A3935.01-301-46
• Series 7400 Fixed Window Glazing Chart
• Series 7400 Operable Window Product Information
• Series 7400 Project In - Thermal Performance - AAMA 1503 - Report A4476.02-301-46
• Series 7400 Project In - Thermal Performance - NFRC 102 - Report A4476.01-301-46
• Series 7400 Project In Window Glazing Chart
• Series 7400 Project Out - AAMA Class AP-AW 95 60X36 - Report CCLI-02-147
• Series 7400 Project Out - Thermal Performance - AAMA 1503 - Report A3931.02-301-46
• Series 7400 Project Out - Thermal Performance - NFRC 102 - Report A3931.01-301-46
• Series 7400 Project Out Window Glazing Chart
• Series 7400 Window Quote Request Form
• Series 7400 Window System Installation Instructions
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
