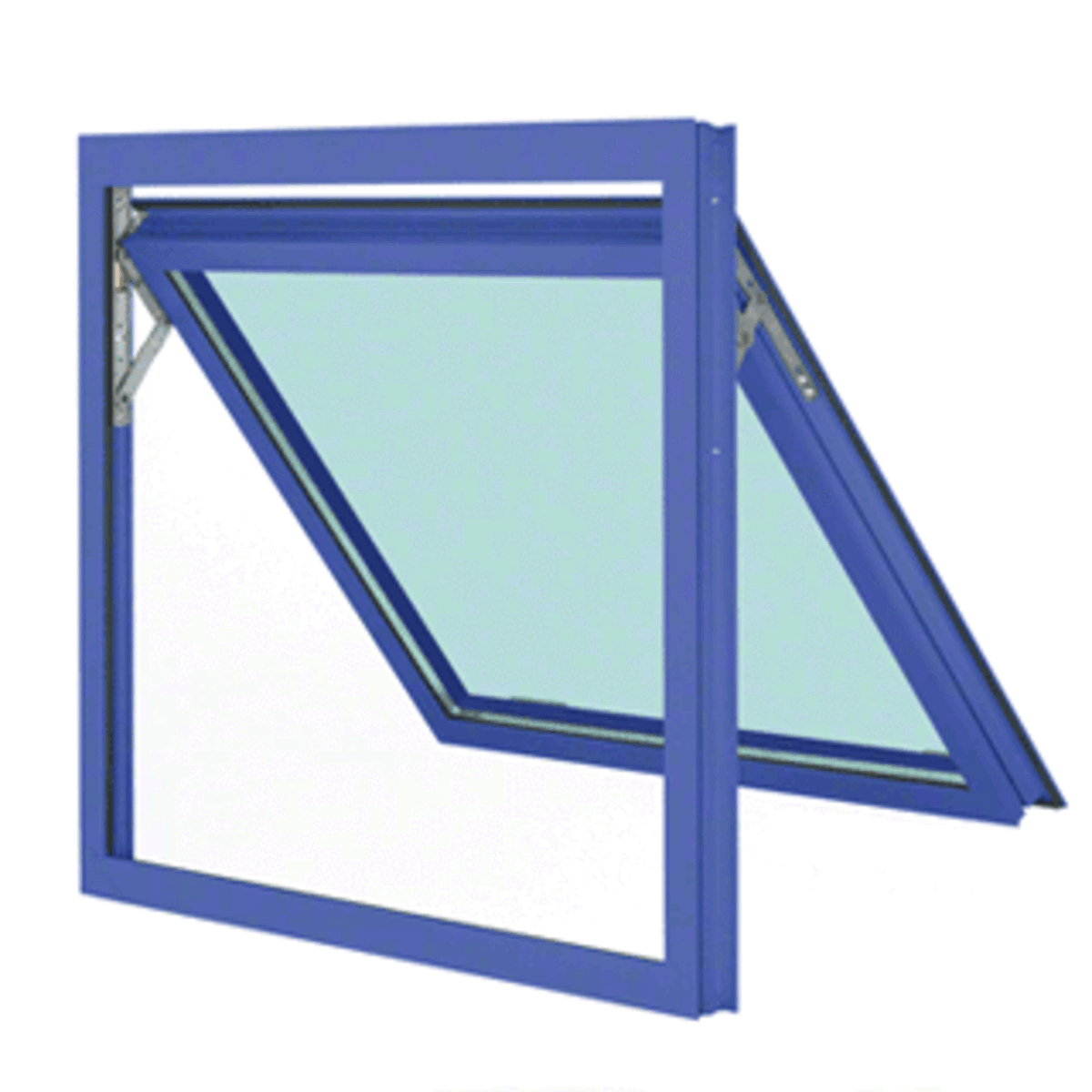

CRL TV40471 U.S. Aluminum KYNAR 7400 Series Project-In Top Vent Window for 1" Glazing

CRL TV40471 - U.S. Aluminum Custom KYNAR Paint 7400 Series Project-In Top Vent Window for 1" Glazing offers a robust solution for modern architectural needs. This window is engineered with a polyamide strut thermal break, ensuring superior energy efficiency and comfort in any setting. Its reinforced corners, enhanced by an aluminum corner key, provide exceptional structural integrity, making it suitable for projected, fixed, or casement installations. Rated AW-95 by AAMA, this window meets stringent performance standards, ensuring durability and reliability. The .125" nominal wall thickness contributes to its strength while maintaining a sleek profile. Each unit is designed for dry glaze installation, featuring tape on the exterior and E.P.D.M. elastomeric wedge on the interior for optimal sealing. Operating hardware includes stainless steel 4-bar hinges and cam locking handles for smooth and secure operation. Additionally, optional hardware features like roto operators, limit devices, and friction adjusters enhance functionality, allowing for customizable use. With various optional extrusions available, including head and jamb channels, mulling bars, and subsills, this window is versatile enough to suit diverse project requirements. Choose the CRL TV40471 for a blend of performance, aesthetics, and innovation in your next build.

-U.S. Aluminum Custom KYNAR Paint 7400 Series Project-In Top Vent Window for 1" Glazing

• Polyamide Strut Thermal Break
• Reinforced Corners with an Aluminum Corner Key
• Projected, Fixed, or Casement
• AW-95 AAMA Rated
• .125" Nominal Wall Thickness

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7400 Casement Inswing - AAMA Class CW-PG 50-C 36X72 - Report CCLI 09-039
• Series 7400 Casement Outswing - AAMA Class C-C70 43X62 - Report 68583.01-801-47
• Series 7400 Fixed - AAMA Class F-AW 95 60 X 96 - CCLI-02-160
• Series 7400 Fixed - Thermal Performance - AAMA 1503 - Report A3935.02-301-46
• Series 7400 Fixed - Thermal Performance - NFRC 102 - Report A3935.01-301-46
• Series 7400 Fixed Window Glazing Chart
• Series 7400 Operable Window Product Information
• Series 7400 Project In - Thermal Performance - AAMA 1503 - Report A4476.02-301-46
• Series 7400 Project In - Thermal Performance - NFRC 102 - Report A4476.01-301-46
• Series 7400 Project In Window Glazing Chart
• Series 7400 Project Out - AAMA Class AP-AW 95 60X36 - Report CCLI-02-147
• Series 7400 Project Out - Thermal Performance - AAMA 1503 - Report A3931.02-301-46
• Series 7400 Project Out - Thermal Performance - NFRC 102 - Report A3931.01-301-46
• Series 7400 Project Out Window Glazing Chart
• Series 7400 Window Quote Request Form
• Series 7400 Window System Installation Instructions
