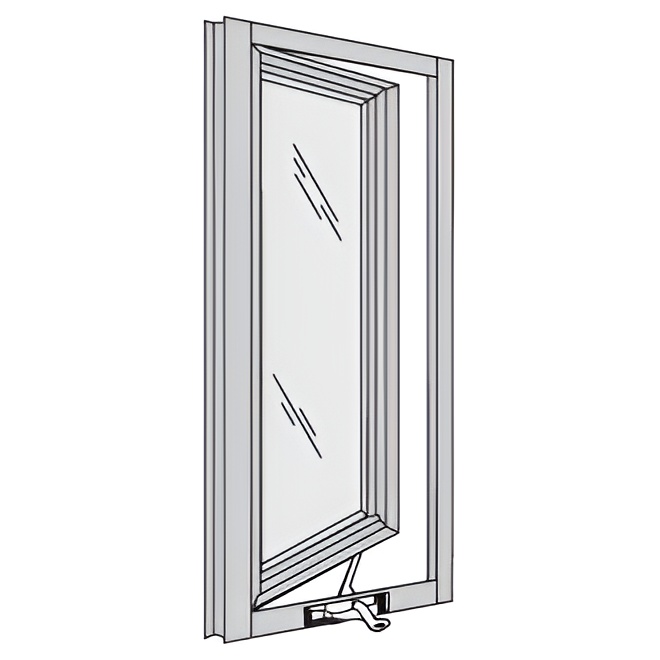

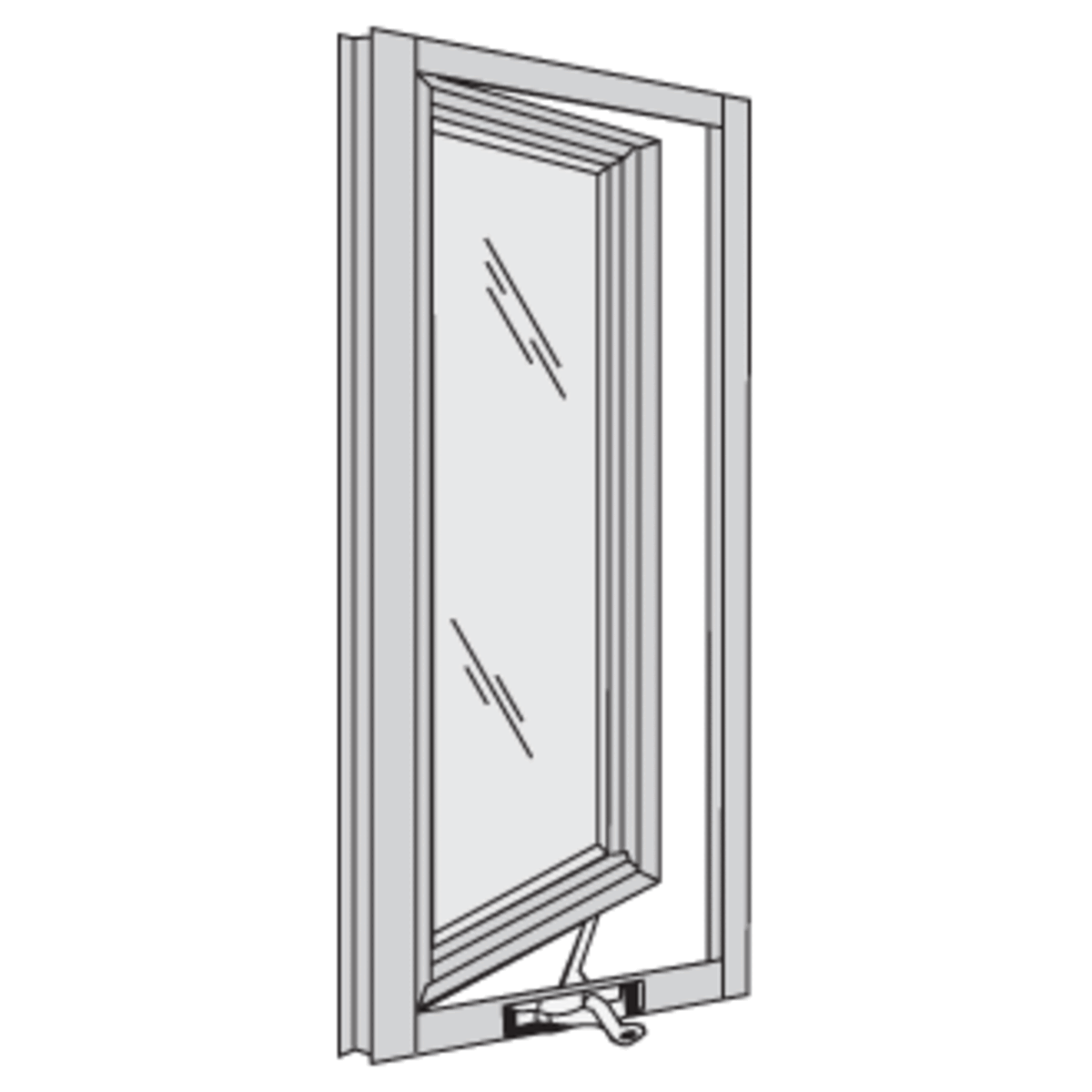

CRL TV40611 U.S. Aluminum 7400 Series Clear Anodized Out-Swing Casement Window for 1" Glazing

CRL TV40611 - U.S. Aluminum Clear Anodized 7400 Series Out-Swing Casement Window for 1" Glazing delivers exceptional performance and versatility for modern architectural needs. This AAMA-rated window features a robust .125" nominal wall thickness and incorporates a polyamide strut thermal break, ensuring superior thermal efficiency while minimizing heat transfer. The reinforced corners, enhanced with an aluminum corner key, contribute to the overall structural integrity of the unit. Designed for easy installation, the window is built for dry glaze with tape on the outside and E.P.D.M. elastomeric wedge on the inside. Choose from projected, fixed, or casement configurations to suit your design requirements. Operating hardware includes stainless steel 4-bar hinges and a lift handle lock for reliable functionality. For added flexibility, a range of optional hardware is available, including a high-performance casement operator, limit devices, and multi-point locks. Optional extrusions such as head and jamb channels, mulling bars, and subsills allow for customized installations. The CRL TV40611 window is finished in a clear anodized Class 1 coating, ensuring durability and a sleek appearance. Please note, shipping is via common carrier only, and compliance with local regulations is essential.

-U.S. Aluminum Clear Anodized 7400 Series Out-Swing Casement Window for 1" Glazing

• AW-95 AAMA Rated
• .125" Nominal Wall Thickness
• Polyamide Strut Thermal Break
• Reinforced Corners with an Aluminum Corner Key
• Projected, Fixed, or Casement

Resources

• AAMA Test Report Expiration Statement
• AAMA Test Report Expiration Statement
• Glazing Unit Quote Request Form
• Glazing Unit Quote Request Form
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7200 7300 7400 7500 7600 8000 8100 8200 Window Numbering Key
• Series 7400 Casement Inswing - AAMA Class CW-PG 50-C 36X72 - Report CCLI 09-039
• Series 7400 Casement Outswing - AAMA Class C-C70 43X62 - Report 68583.01-801-47
• Series 7400 Fixed - AAMA Class F-AW 95 60 X 96 - CCLI-02-160
• Series 7400 Fixed - Thermal Performance - AAMA 1503 - Report A3935.02-301-46
• Series 7400 Fixed - Thermal Performance - NFRC 102 - Report A3935.01-301-46
• Series 7400 Fixed Window Glazing Chart
• Series 7400 Operable Window Product Information
• Series 7400 Project In - Thermal Performance - AAMA 1503 - Report A4476.02-301-46
• Series 7400 Project In - Thermal Performance - NFRC 102 - Report A4476.01-301-46
• Series 7400 Project In Window Glazing Chart
• Series 7400 Project Out - AAMA Class AP-AW 95 60X36 - Report CCLI-02-147
• Series 7400 Project Out - Thermal Performance - AAMA 1503 - Report A3931.02-301-46
• Series 7400 Project Out - Thermal Performance - NFRC 102 - Report A3931.01-301-46
• Series 7400 Project Out Window Glazing Chart
• Series 7400 Window Quote Request Form
• Series 7400 Window System Installation Instructions
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
