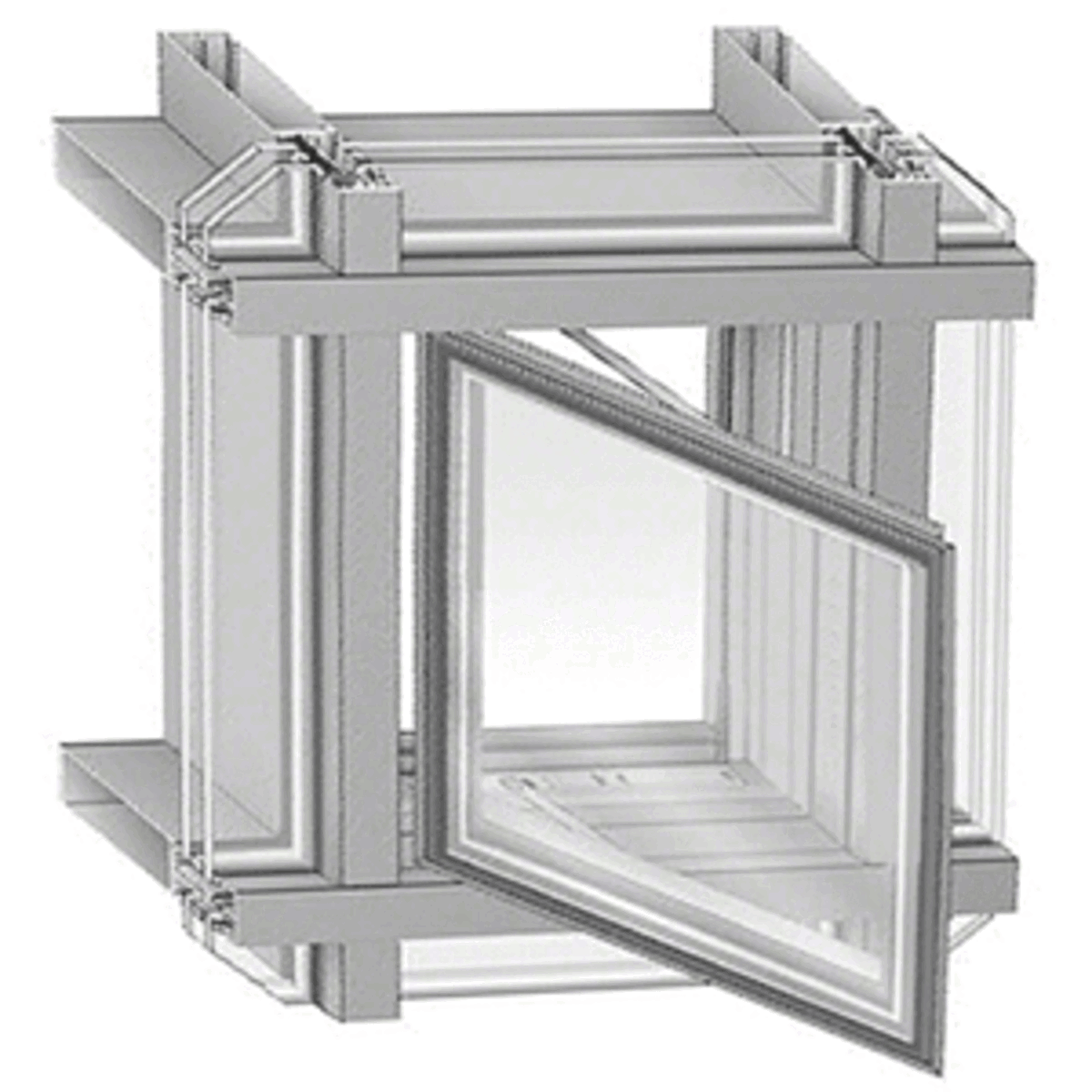

CRL TV60652 U.S. Aluminum 7600 Series Out-Swing Casement Window - White KYNAR

CRL TV60652 - U.S. Aluminum 7600 Series Out-Swing Casement Window is designed for durability and efficiency in any architectural project. This window unit boasts a CW100 AAMA rating for 1" glazing, ensuring compliance with high-performance standards. Built with reinforced corners utilizing an aluminum corner key, it delivers exceptional structural integrity. The 4-bar stainless steel hinges are complemented by a high-pressure diecast zinc Euro locking system, providing both security and ease of operation. A polyurethane thermal break enhances energy efficiency, making this window a smart choice for eco-conscious builders and homeowners. With a nominal wall thickness of .125", it combines strength with a sleek aesthetic. The 7600 Series is specifically engineered for wet glaze construction, featuring a spacer gasket for optimal insulation. The operating hardware, including hydraulically crimped components, ensures smooth functionality. Finished in a striking white Kynar, this window not only performs excellently but also adds a modern touch to any building. Please note that shipping is limited to common carrier only, and exact weights for shipping costs must be confirmed with CRL Customer Service. Elevate your construction or renovation project with the reliability and style of the CRL TV60652.

-U.S. Aluminum 7600 Series Out-Swing Casement Window, White KYNAR Paint

• CW100 AAMA Rated for 1" Glazing
• Reinforced Corners with an Aluminum Corner Key
• 4-Bar Stainless Steel Hinges with High Pressure Diecast Zinc Euro Locking System
• Polyurethane Thermal Break
• .125" Nominal Wall Thickness
