CRL UC77BN Brushed Nickel Traditional Fixed Panel U-Clamp

Your Price: $24.13

Retail Price:$28.88

Your Savings:$4.75(16%)

Secure your frameless shower with the CRL UC77BN Brushed Nickel U-Clamp, designed for 5/16" to 1/2" thick glass.

Part Number : CRL_UC77BN

Availability: 3594 In Stock

Quantity

Description

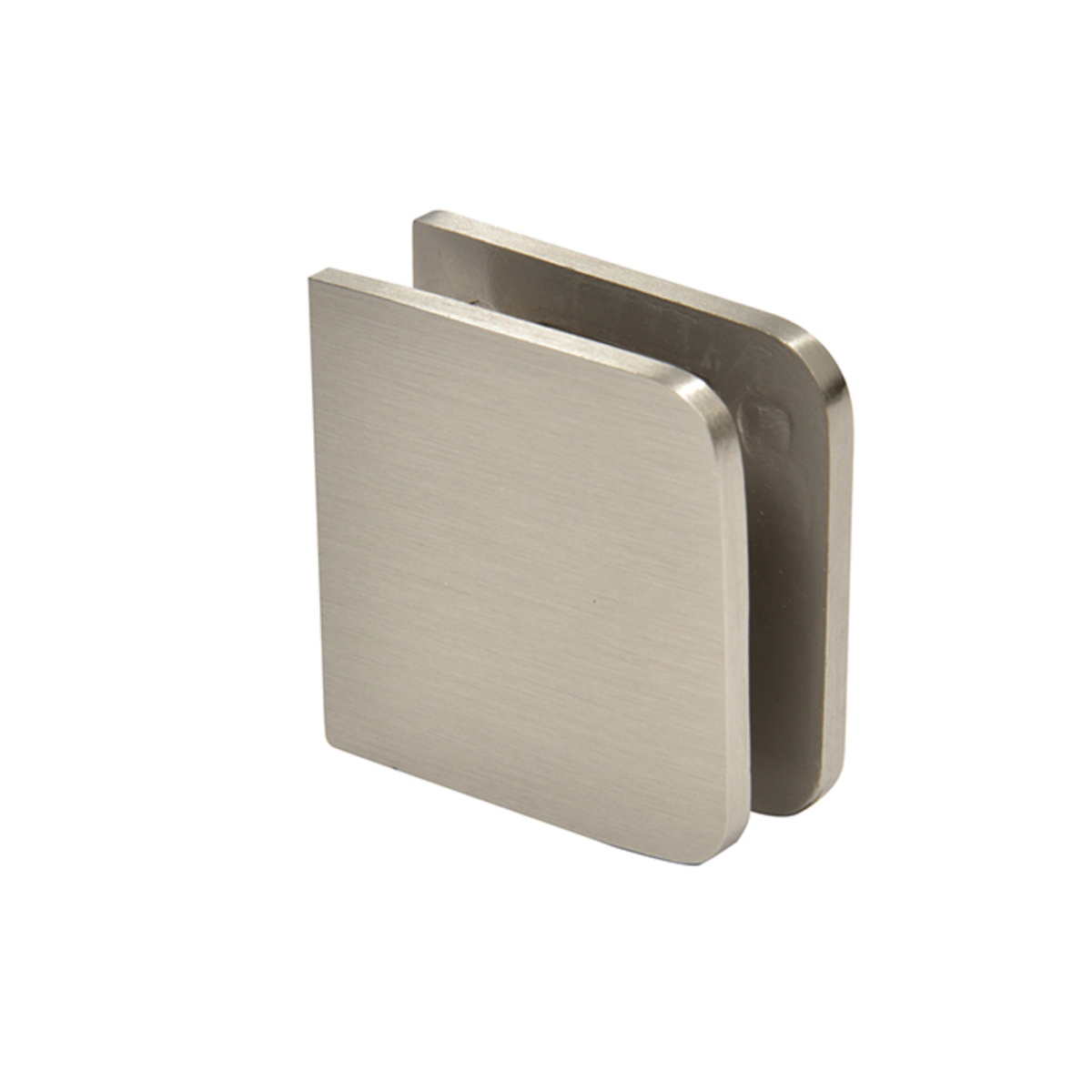

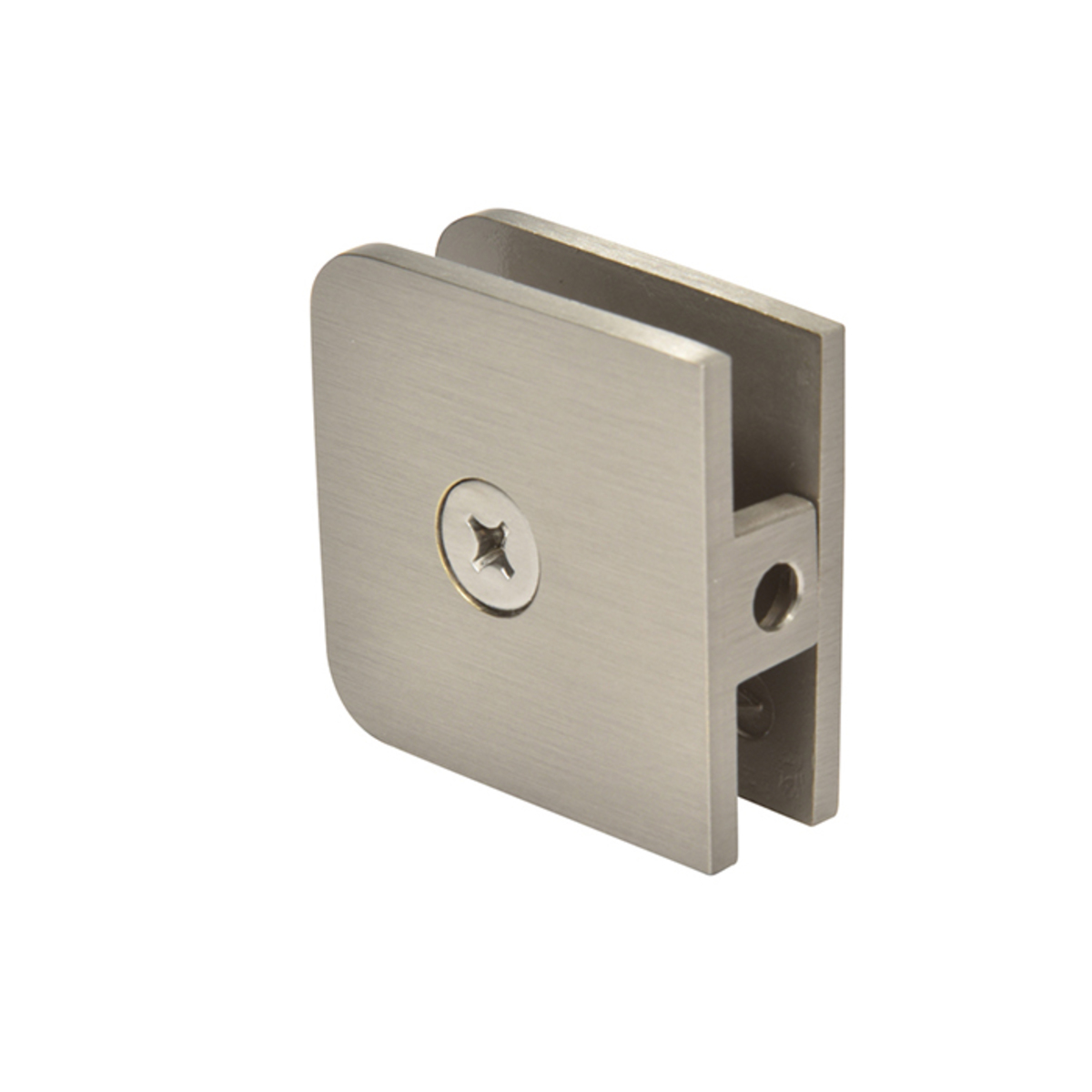

CRL UC77BN Brushed Nickel Traditional Fixed Panel U-Clamp

C.R. Laurence UC77BN Brushed Nickel Traditional Style Fixed Panel U-Clamp is designed to securely hold vertical glass panels in frameless shower enclosures, offering a sleek alternative to traditional U-Channel systems. Constructed from solid brass, this clamp not only ensures durability but also enhances the overall aesthetics of your shower space, contributing to a polished 'all-glass' look. Accommodating glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), the UC77BN features a clearance of 5/32" to 3/16" (4 to 5 mm) between the glass and the wall, allowing for seamless integration. The unit requires specific glass fabrication to fit the clamps, making it essential to use monolithic tempered glass for optimal performance. Included with each clamp are mounting screws and a set of clear gaskets, facilitating a straightforward installation while providing a water-resistant seal. An additional set of clear gaskets (Cat. No. UCG77) is recommended for 5/16" (8 mm) glass. With a height and length of 1-3/4" (44 mm), the UC77BN is designed for wall mounting, making it a versatile choice for various installation needs. Elevate your shower enclosure with the elegance and functionality of this C.R. Laurence clamp.

Brushed Nickel Traditional Style Fixed Panel U-Clamp

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

CRL Standard Fixed Panel U-Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to seal the gap and provide a clean, water resistant appearance.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting Screws (for Wall Clamps) and Clear Gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Nickel

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Height: 1-3/4 in. (44 mm)

Length: 1-3/4 in. (44 mm)

Material: Brass

Mounting Type: Wall Mount
