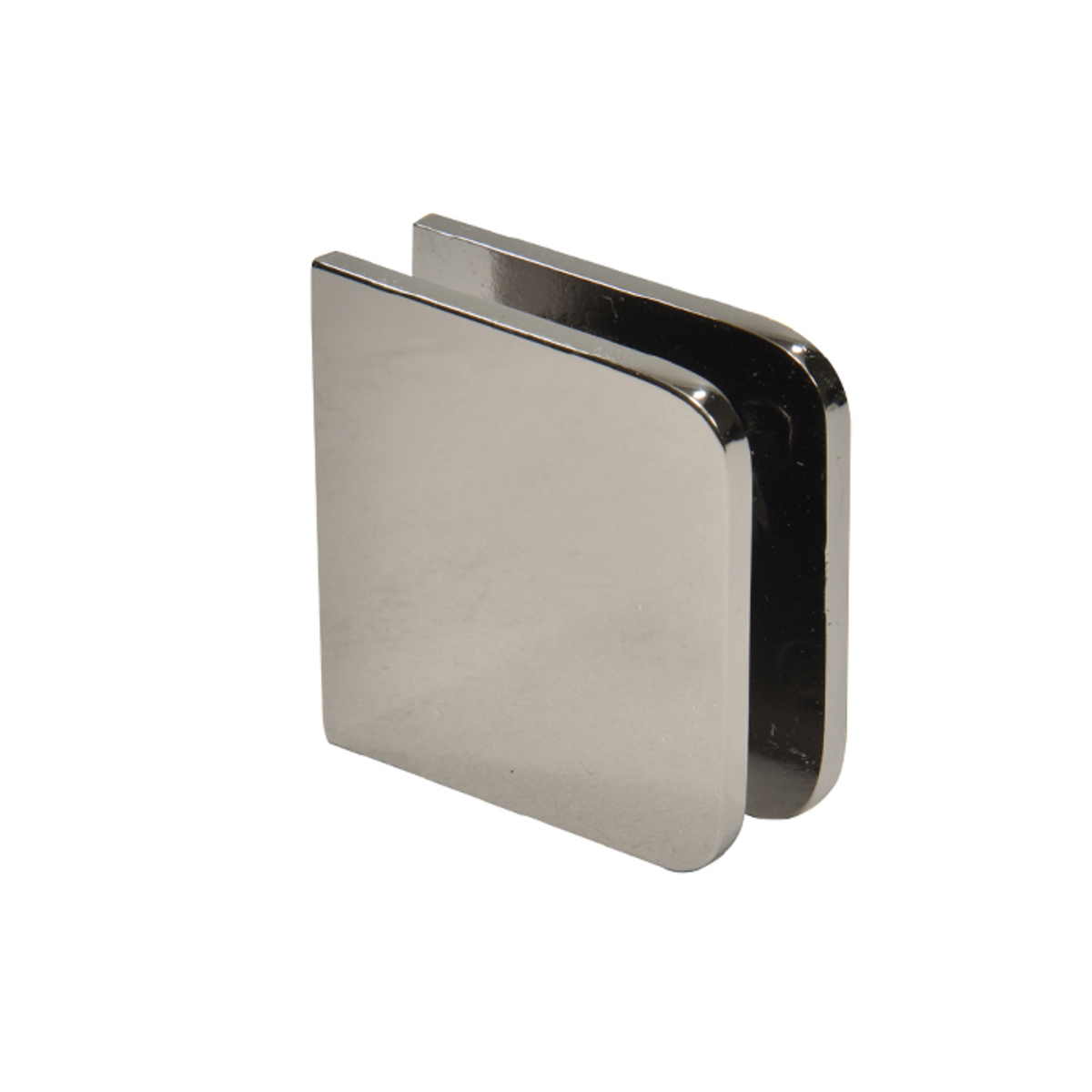

CRL UC77GM Gun Metal Traditional Fixed Panel U-Clamp

C.R. Laurence UC77GM Gun Metal Traditional Style Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for 5/16" to 1/2" (8 to 12 mm) thick glass, this solid brass clamp enhances the aesthetic appeal of your installation by promoting an 'all-glass' look, a refined alternative to traditional U-channel systems. The UC77GM mounts directly to walls, ceilings, or floors, providing a secure hold for vertical glass panels while maintaining a seamless appearance. The clamps feature a clearance gap of 5/32" to 3/16" (4 to 5 mm) between the glass and the mounting surface, which can be sealed with clear silicone for a clean, water-resistant finish. Each clamp includes appropriate mounting screws and a set of clear gaskets, with additional gaskets available separately for 5/16" (8 mm) glass. With dimensions of 1-3/4" (44 mm) for both height and length, the UC77GM combines functionality with elegance. Its gun metal finish adds a contemporary touch, making it a versatile choice for modern bathroom designs. When you choose C.R. Laurence, you are investing in quality and style that stands the test of time.

Gun Metal Traditional Style Fixed Panel U-Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
• Use Monolithic Tempered Glass
