Images may not represent actual product and finish

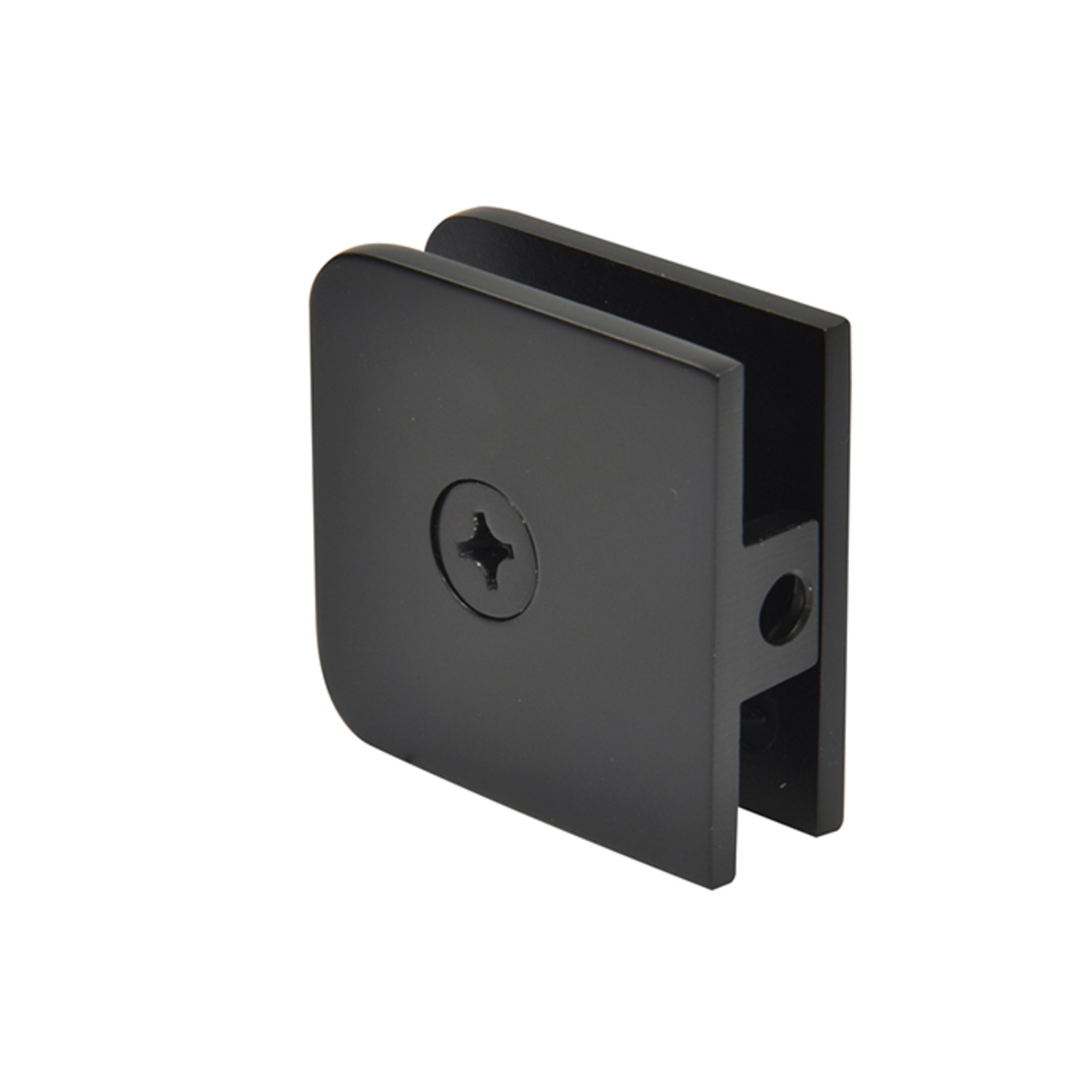

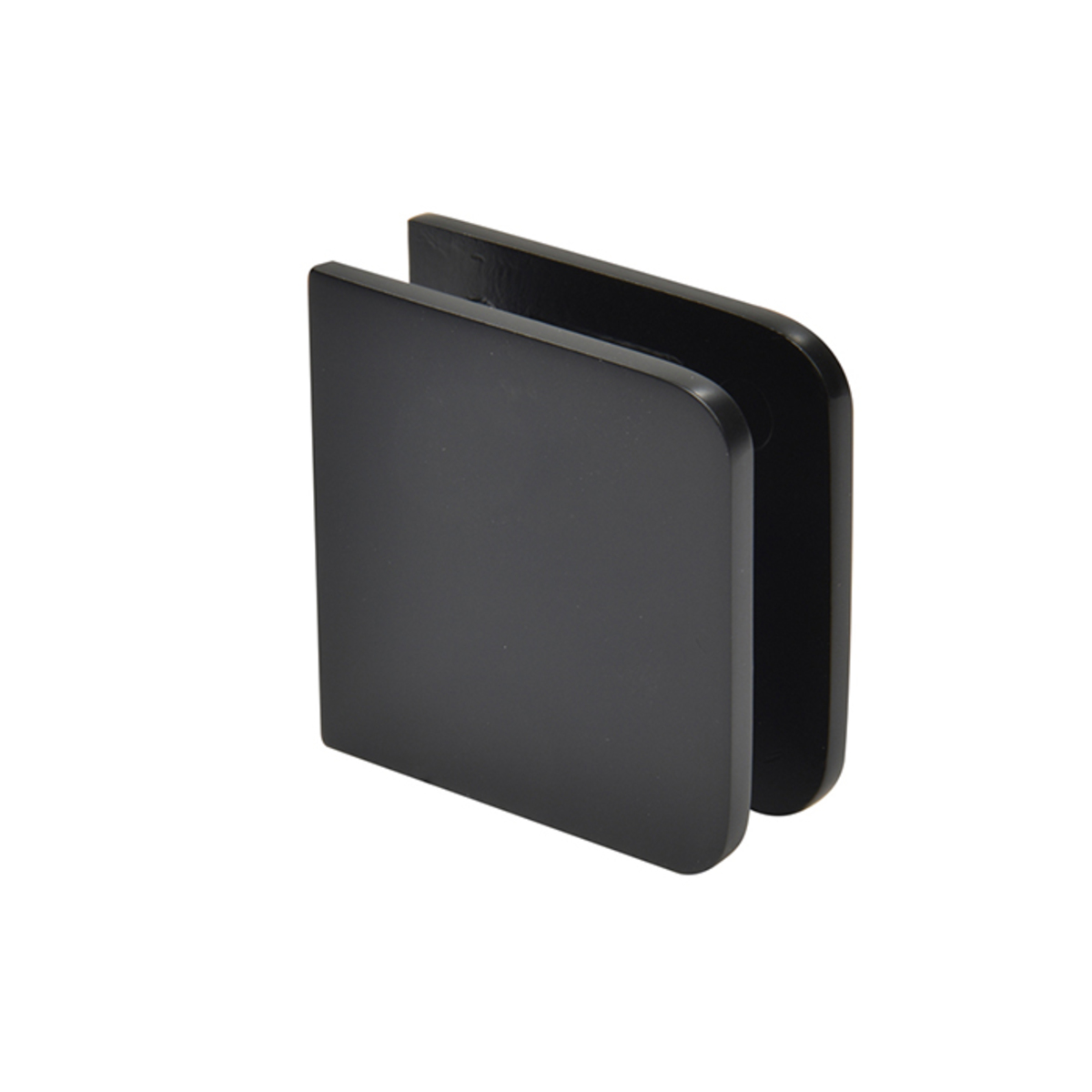

CRL UC77MBL Matte Black Traditional Fixed Panel U-Clamp

Your Price: $24.13

Retail Price:$28.88

Your Savings:$4.75(16%)

Secure your frameless shower enclosure with the CRL UC77MBL Matte Black U-Clamp, designed for 5/16" to 1/2" thick glass.

Part Number : CRL_UC77MBL

Availability: 3320 In Stock

Quantity

Description

CRL UC77MBL Matte Black Traditional Fixed Panel U-Clamp

C.R. Laurence UC77MBL Matte Black Traditional Style Fixed Panel U-Clamp is a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), this clamp offers a sleek alternative to traditional U-Channel, enhancing the overall 'all-glass' aesthetic of your space. Constructed from solid brass, the UC77MBL ensures durability and a polished finish, making it a perfect match for various shower door hinges. The clamp mounts directly to the wall, ceiling, or floor, with a clearance gap of 5/32" to 3/16" (4 to 5 mm) between the glass and wall, which can be sealed with clear silicone for a clean, water-resistant appearance. Each clamp includes necessary mounting screws and clear gaskets, with additional gaskets (Cat. No. UCG77) available for 5/16" (8 mm) glass. With dimensions of 1-3/4" x 1-3/4" (44 mm x 44 mm), this matte black fixture not only provides security but also complements modern interior designs. For building professionals and discerning homeowners alike, the C.R. Laurence UC77MBL U-Clamp combines functionality with aesthetic appeal, making it an essential component of any stylish shower enclosure.

Matte Black Traditional Style Fixed Panel U-Clamp

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

CRL Standard Fixed Panel U-Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to seal the gap and provide a clean, water resistant appearance.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting Screws (for Wall Clamps) and Clear Gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Matte Black

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

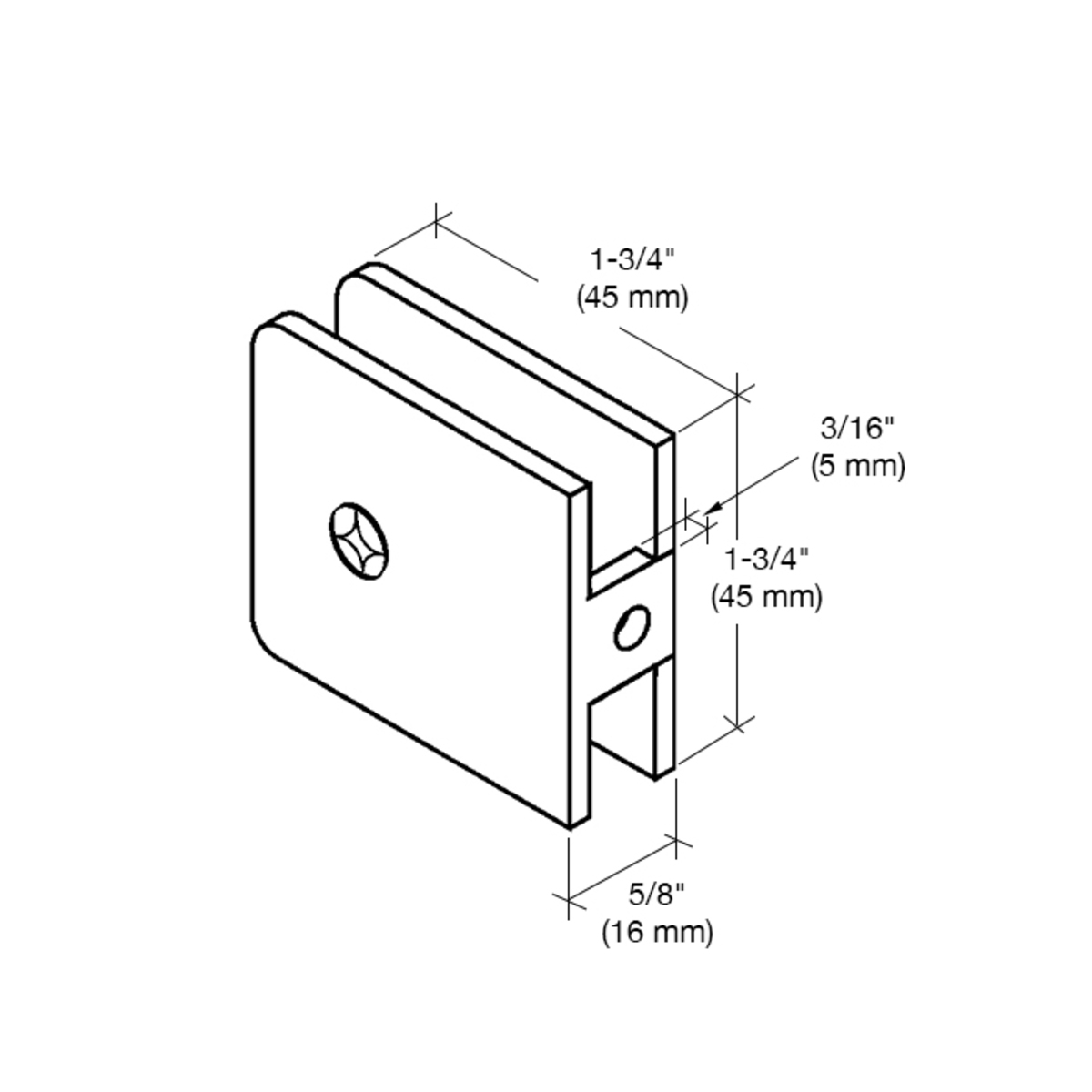

Height: 1-3/4 in. (44 mm)

Length: 1-3/4 in. (44 mm)

Material: Brass

Mounting Type: Wall Mount

Shipping Limitations: None
