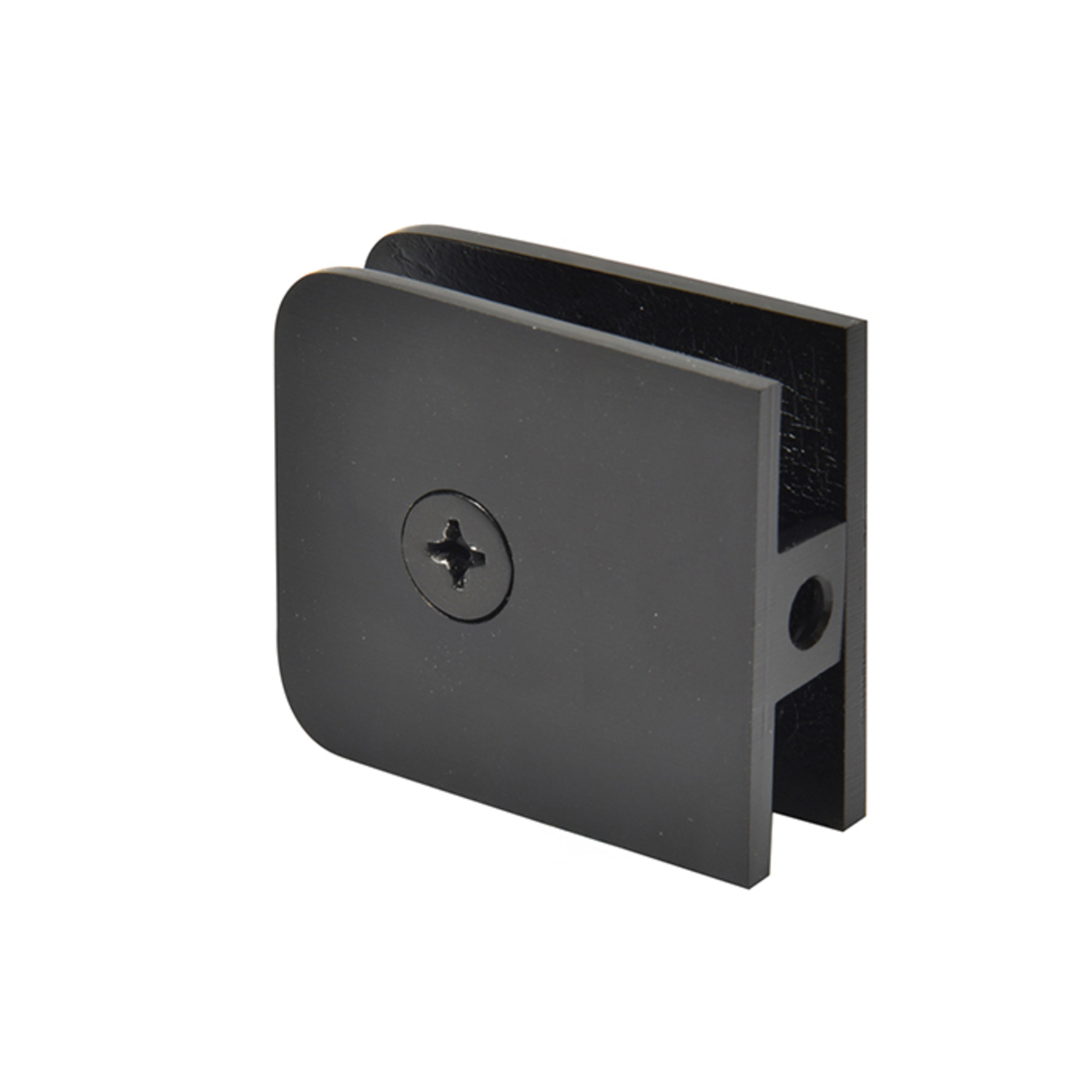

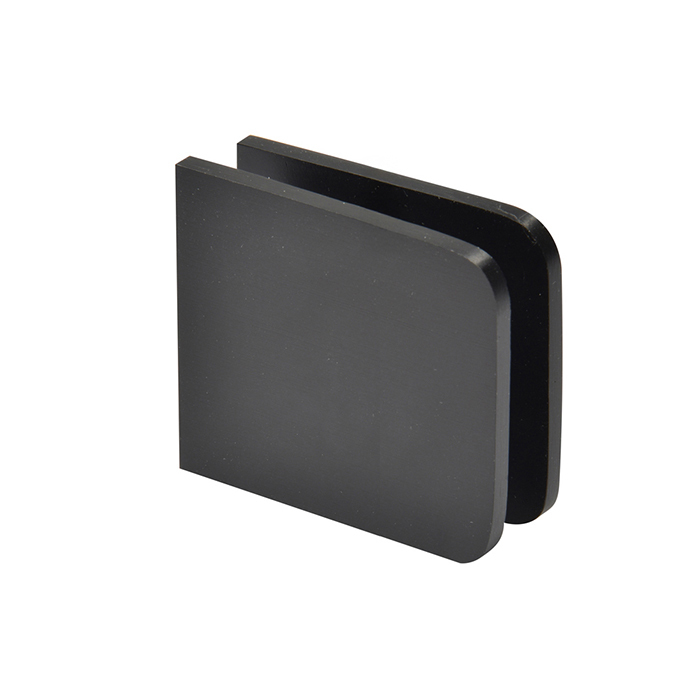

CRL UC790RB Oil Rubbed Bronze Oversized Fixed Panel U-Clamp

Your Price: $31.23

Retail Price:$37.38

Your Savings:$6.15(16%)

Secure your frameless shower enclosure with the CRL UC790RB Oil Rubbed Bronze U-Clamp, designed for 1/2" glass.

Part Number : CRL_UC790RB

Availability: 894 In Stock

Quantity

Description

CRL UC790RB Oil Rubbed Bronze Oversized Fixed Panel U-Clamp

C.R. Laurence UC790RB Oil Rubbed Bronze Oversized Fixed Panel U-Clamp is the perfect solution for securing fixed glass panels in frameless shower enclosures. Designed specifically for 1/2" (12 mm) tempered glass, this clamp provides a stylish alternative to traditional U-Channel, enhancing the sleek, all-glass look that modern spaces demand. Constructed from solid brass, the UC790RB not only ensures durability but also boasts an elegant oil-rubbed bronze finish that complements any décor. Its design requires a hole drilling measurement of one and a half times the glass thickness, facilitating a secure and reliable installation. The clamp accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm) and includes appropriate mounting screws along with a set of clear gaskets, ensuring you have everything needed for installation. For those utilizing 5/16" (8 mm) glass, an additional set of clear gaskets (Cat. No. UCG77) can be ordered separately. With a height of 1-15/16" (49 mm) and width of 1-3/4" (44 mm), the UC790RB is designed for wall mounting and can ship via UPS, making it a convenient choice for your next project. Elevate your shower enclosure with this essential and sophisticated hardware solution.

Oil Rubbed Bronze Oversized Fixed Panel U-Clamp

Recommended When Using 1/2" (12 mm) Glass
Use Monolithic Tempered Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm) Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting Screw and Clear Gaskets.

NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Edge Profile: Beveled

Finish/ Color:: Oil Rubbed Bronze

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Height: 1-15/16 in. (49 mm)

Material: Brass

Mounting Type: Wall Mount

Shipping Limitations: None

Width: 1-3/4 in. (44 mm)
