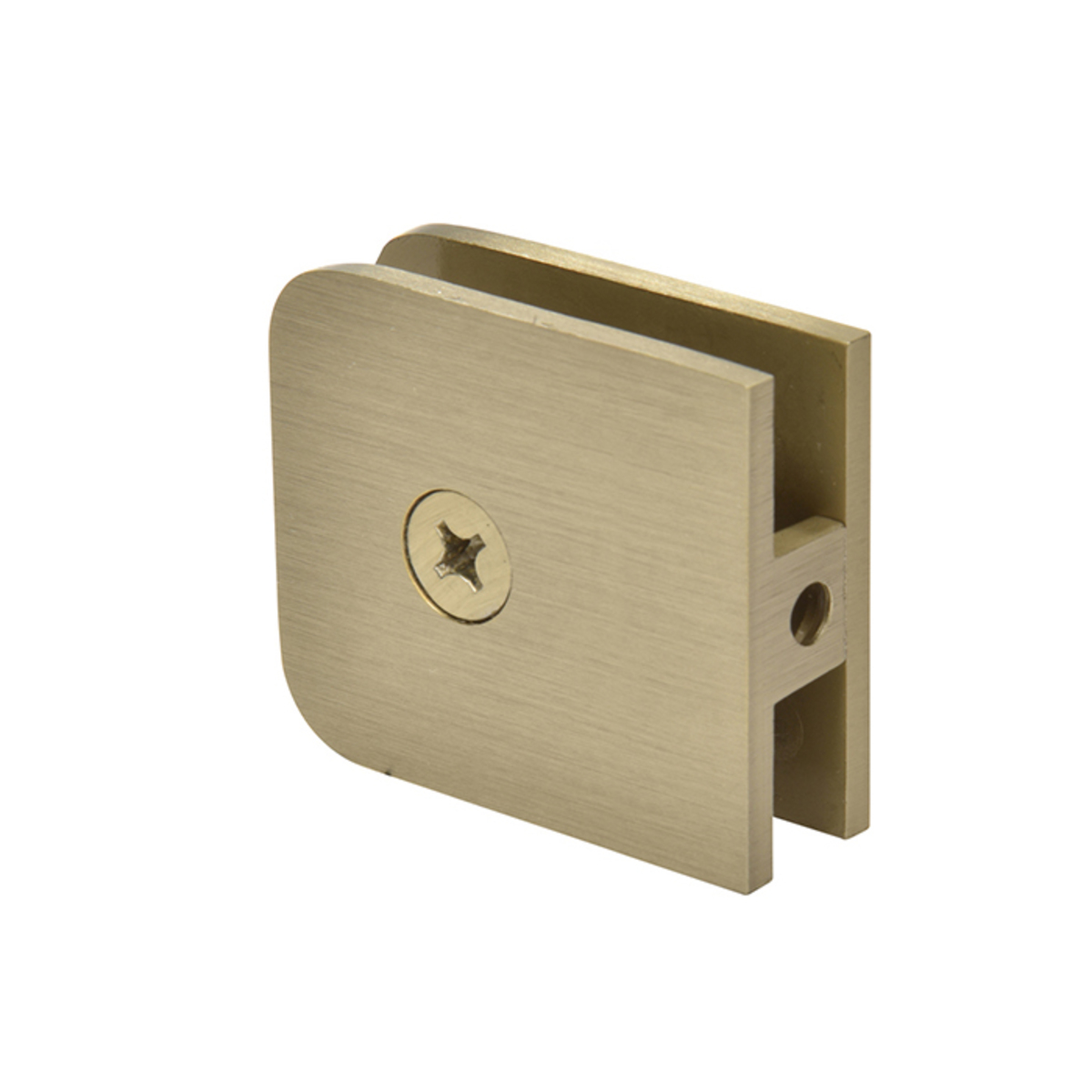

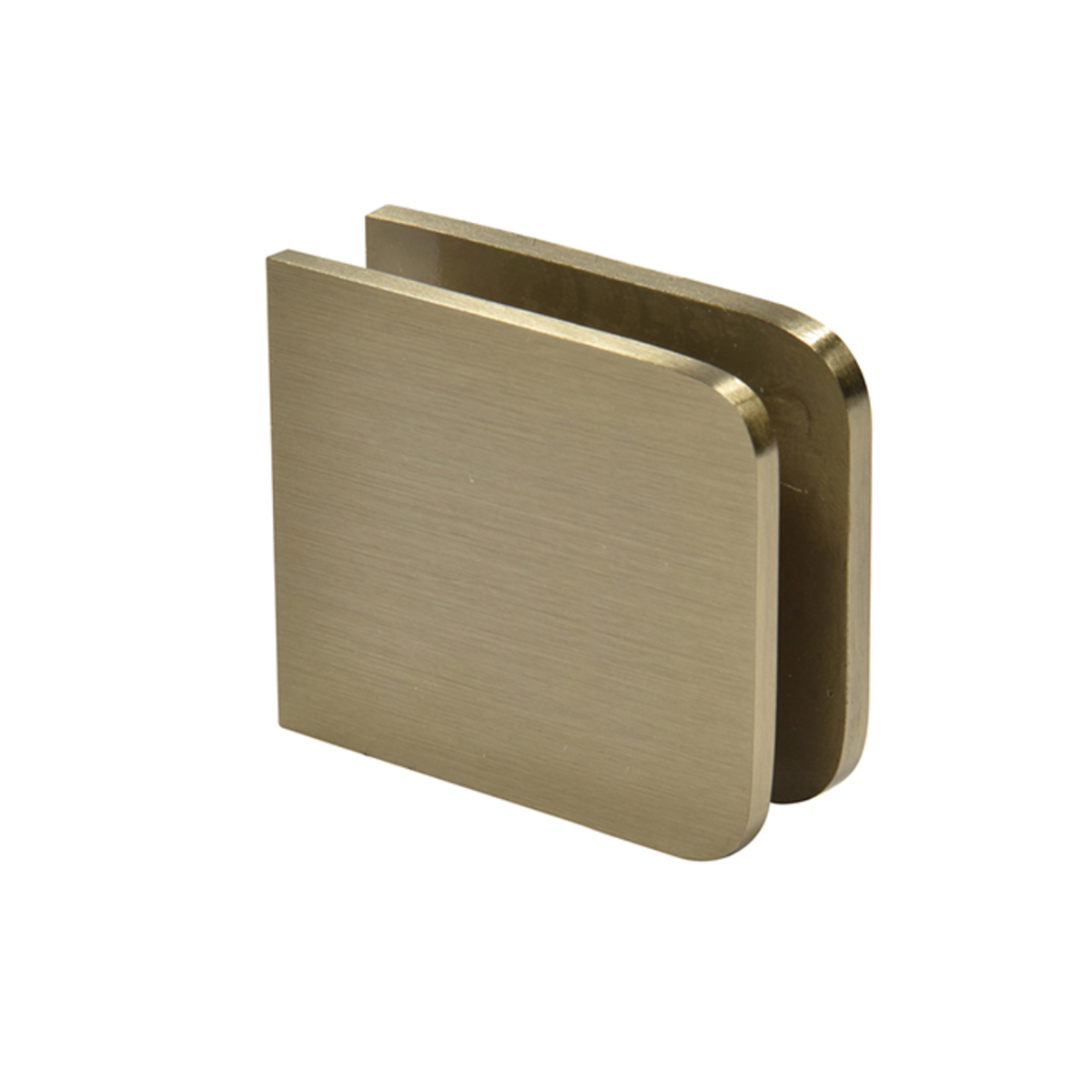

CRL UC79BBRZ Brushed Bronze Oversized Fixed Panel U-Clamp

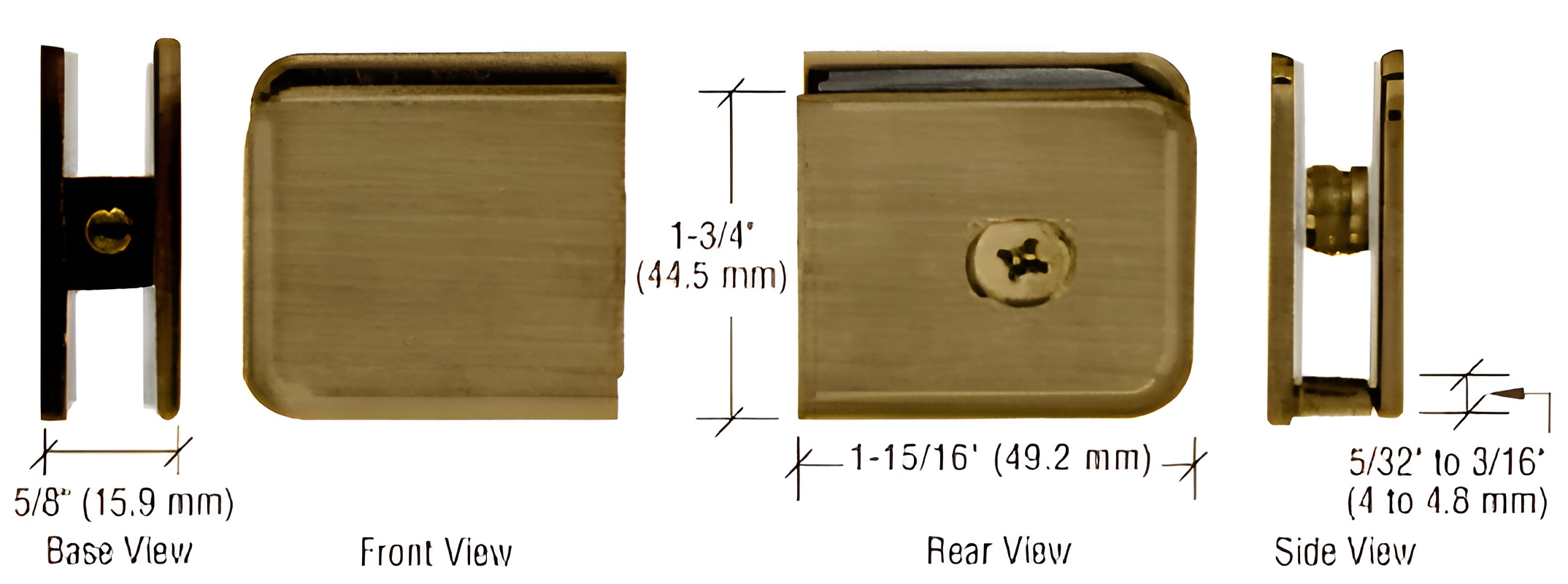

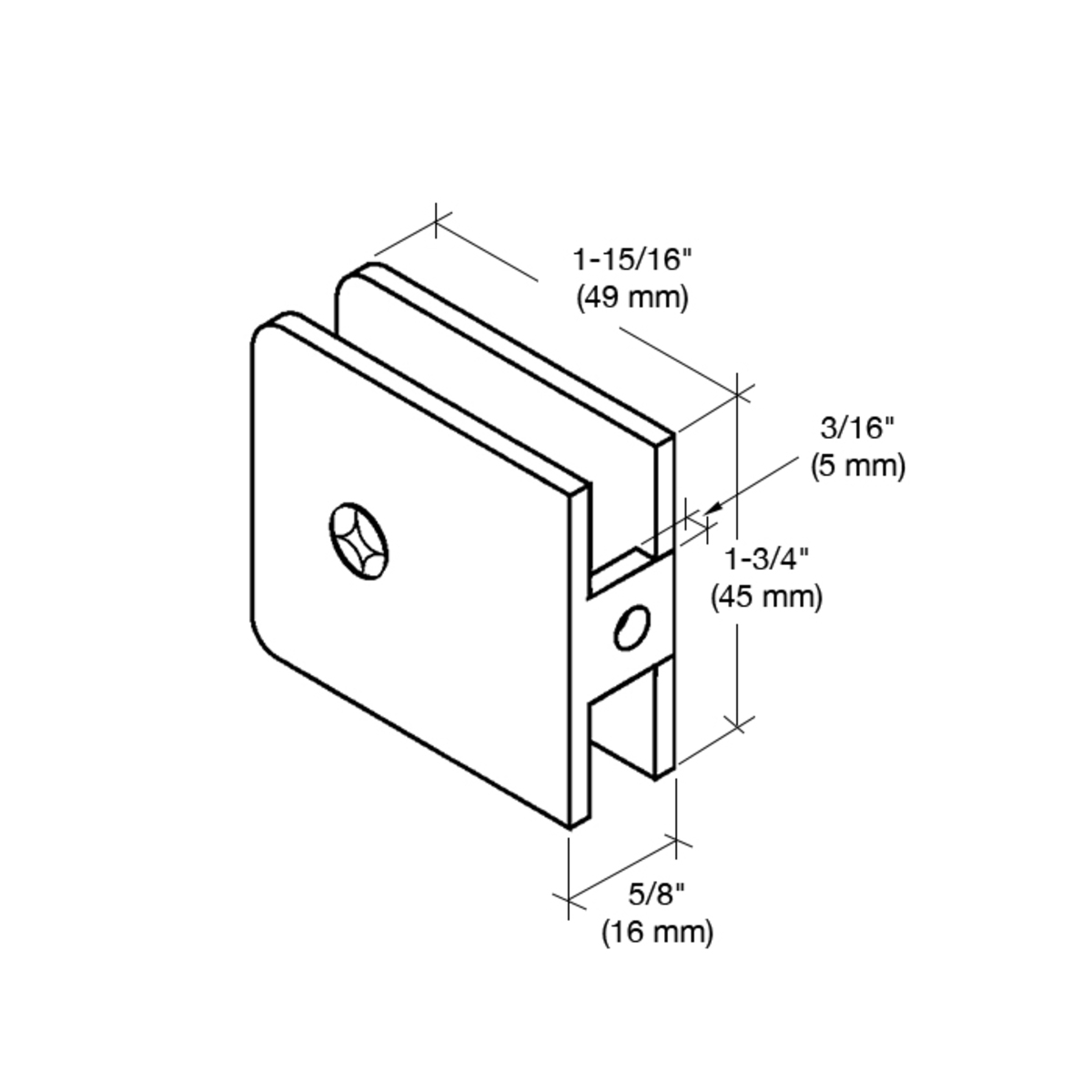

C.R. Laurence UC79BBRZ Brushed Bronze Oversized Fixed Panel U-Clamp is an essential component for achieving a sleek, frameless look in modern shower enclosures. Specifically designed for use with 1/2" (12 mm) tempered glass, this solid brass clamp secures fixed glass panels while enhancing the overall aesthetic of your installation. The U-clamp offers a stylish alternative to traditional U-channel systems, allowing for a more open and airy feel. This clamp requires glass fabrication to accommodate its installation, with a hole drilling measurement of one and a half times the glass thickness, ensuring a secure fit. With a height of 1-15/16 inches (49 mm) and a width of 1-3/4 inches (44 mm), it is compact yet robust, perfectly suited for wall-mounted applications. The UC79BBRZ includes mounting screws and a set of clear gaskets for a seamless installation; however, an additional set of gaskets (Cat. No. UCG77) is necessary for 5/16" (8 mm) glass. Available in a sophisticated brushed bronze finish, this clamp not only provides functional support but also complements a variety of design aesthetics, making it a must-have for building professionals and discerning homeowners alike.

Brushed Bronze Oversized Fixed Panel U-Clamp

• Recommended When Using 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.
