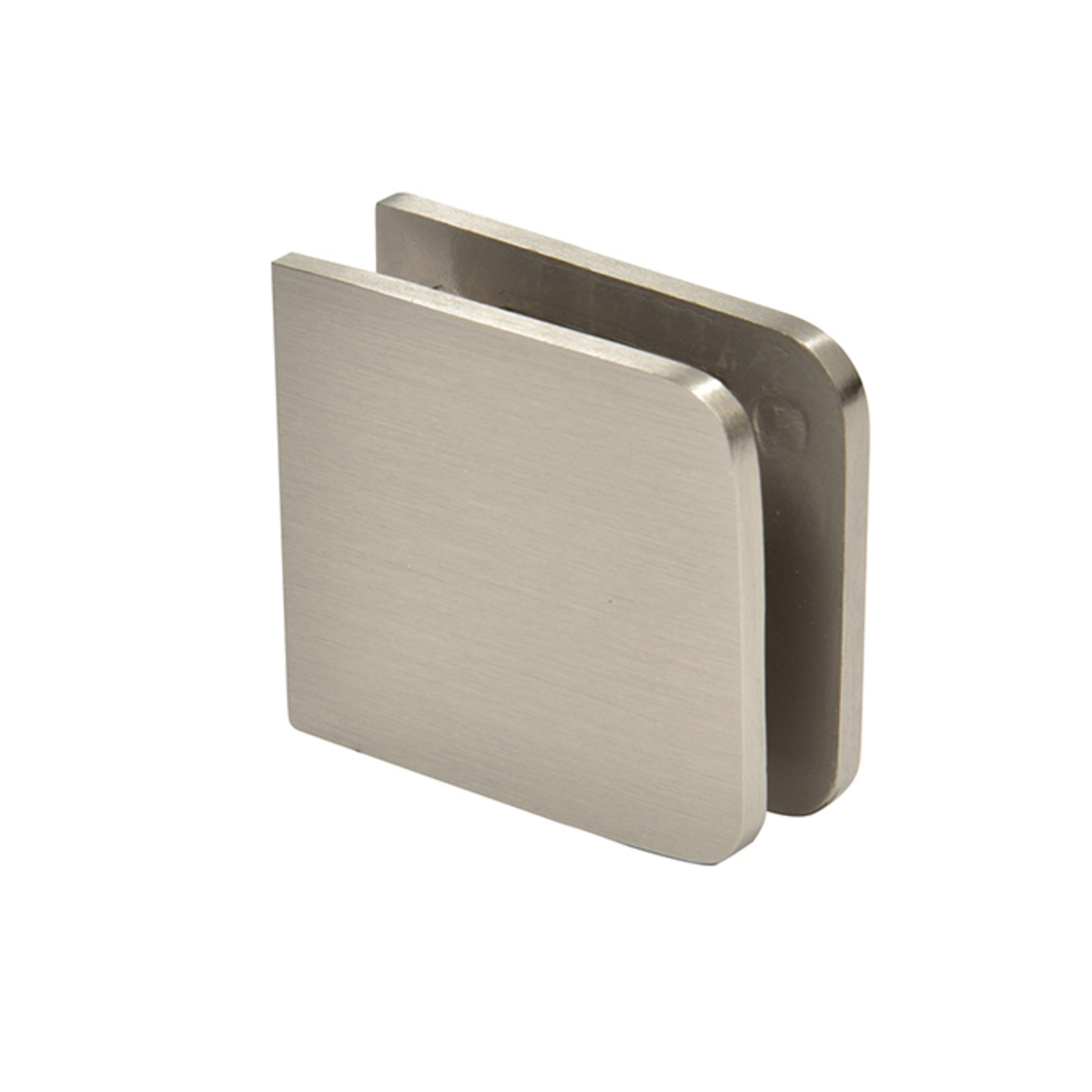

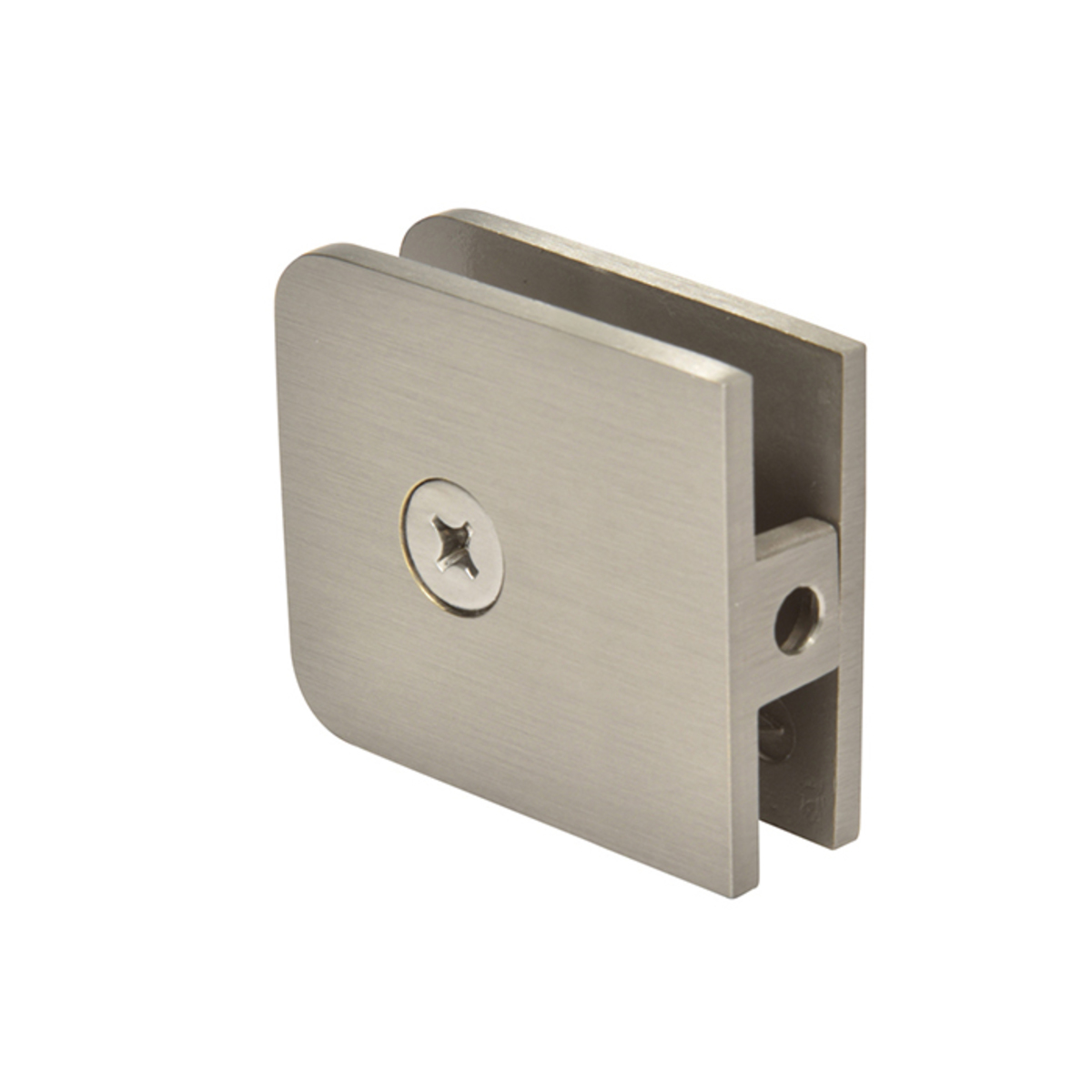

CRL UC79BN Brushed Nickel Oversized Fixed Panel U-Clamp

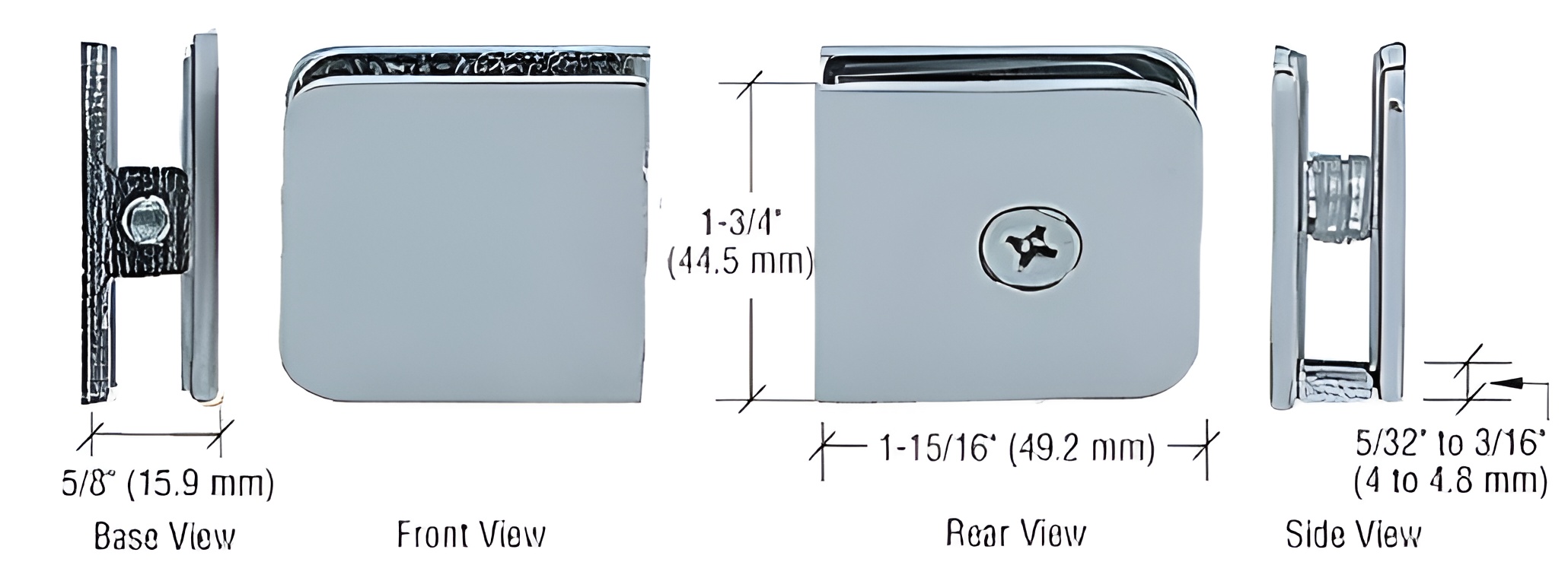

C.R. Laurence UC79BN Brushed Nickel Oversized Fixed Panel U-Clamp is the perfect solution for securing fixed panels of 1/2" (12 mm) tempered glass in frameless shower enclosures. Crafted from solid brass, this U-clamp not only provides strength and durability but also enhances the sleek, all-glass appearance that modern designs demand. Designed to accommodate glass thicknesses ranging from 5/16" to 1/2" (8 mm to 12 mm), the UC79BN requires a hole diameter of either 5/8" or 3/4" (16 mm or 19 mm) for proper installation. Its brushed nickel finish offers a stylish alternative to traditional U-channel systems, further contributing to the contemporary aesthetic of your space. Each U-clamp includes necessary mounting screws and clear gaskets, ensuring a seamless setup. For those using 5/16" (8 mm) glass, an additional set of clear gaskets (Cat. No. UCG77) is recommended. With dimensions of 1-15/16" (49 mm) in height and 1-3/4" (44 mm) in width, the UC79BN combines functionality and design effortlessly. Elevate your bathroom with this sophisticated and reliable glass clamp that meets both structural and visual needs.

Brushed Nickel Oversized Fixed Panel U-Clamp

• Recommended When Using 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.
