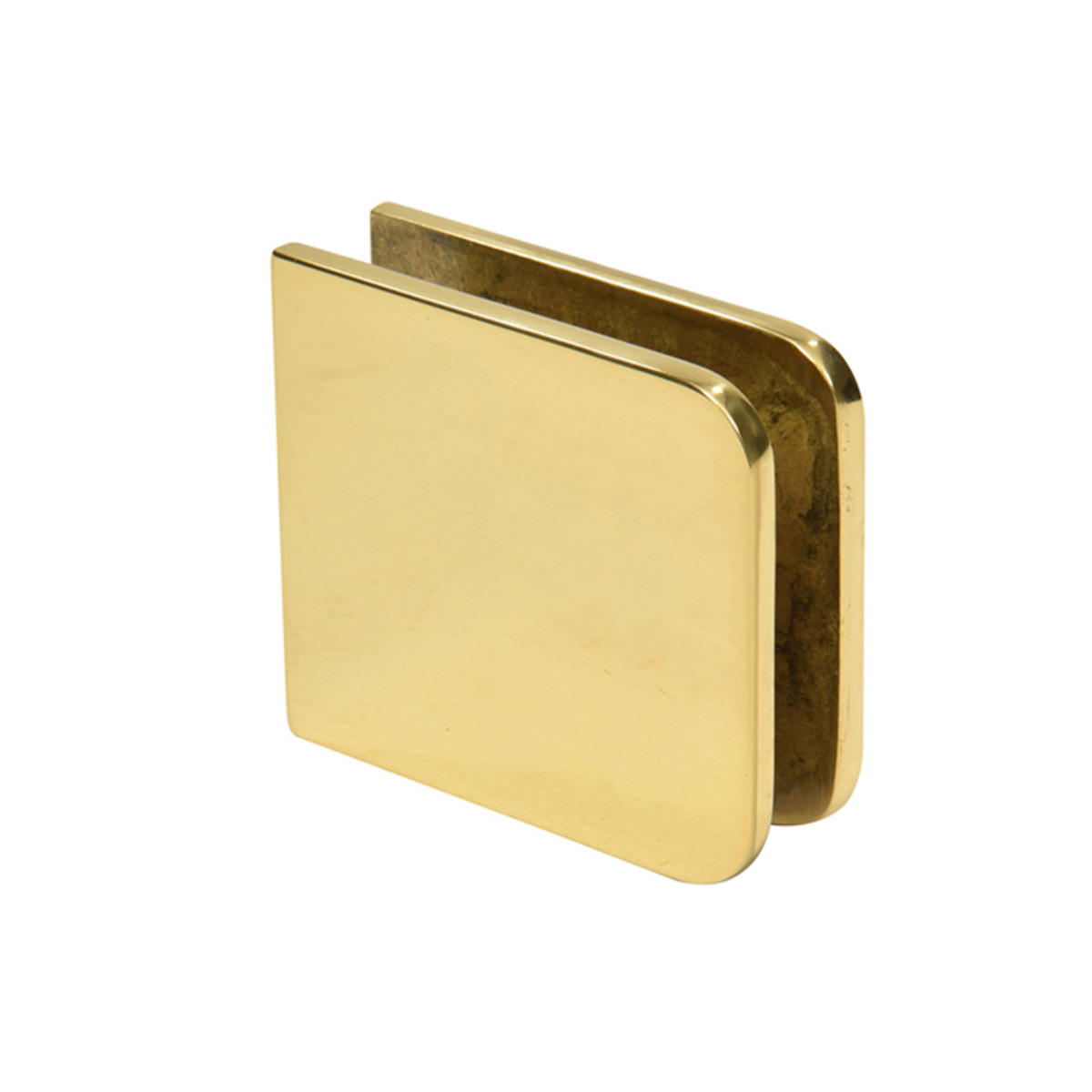

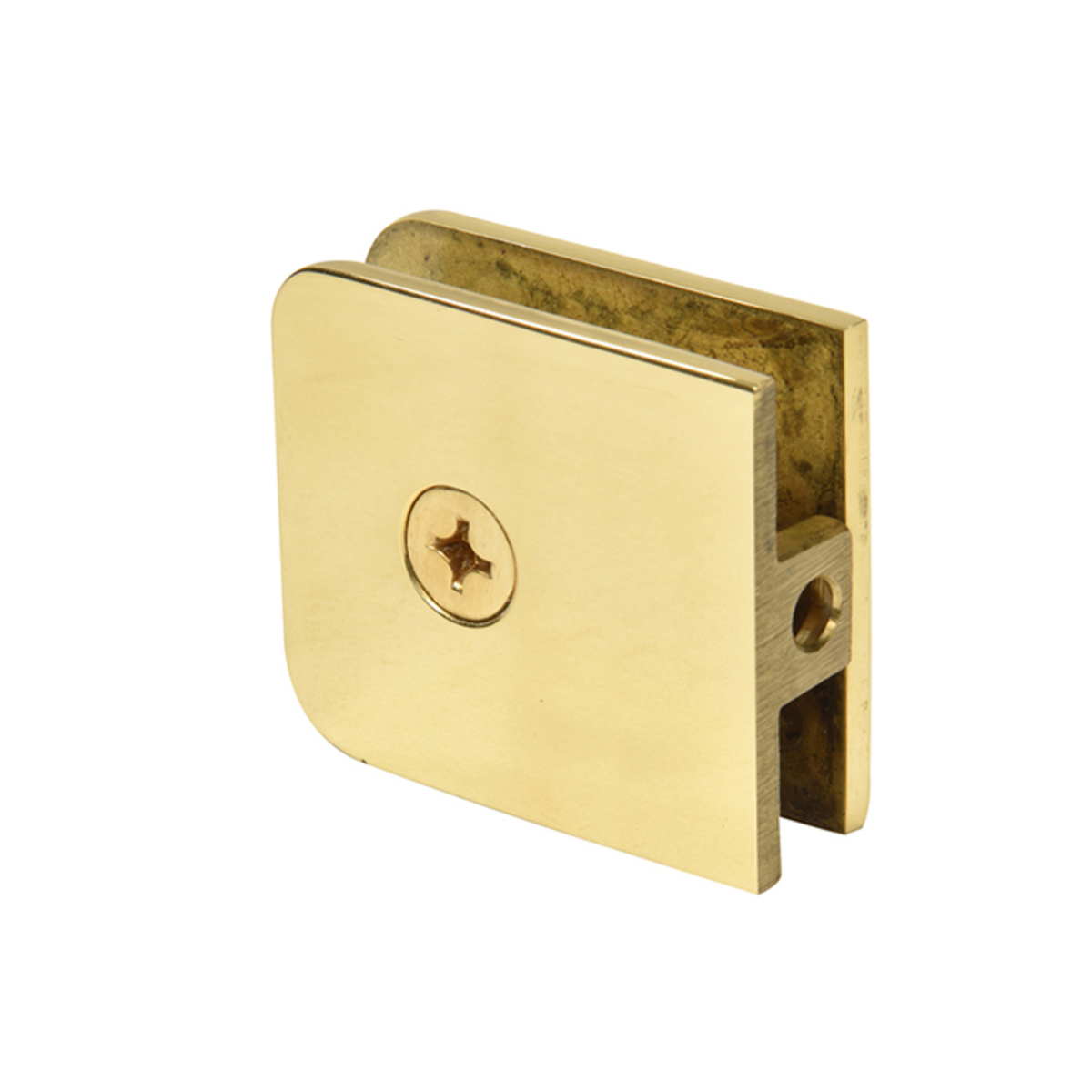

CRL UC79BR Polished Brass Oversized Fixed Panel U-Clamp

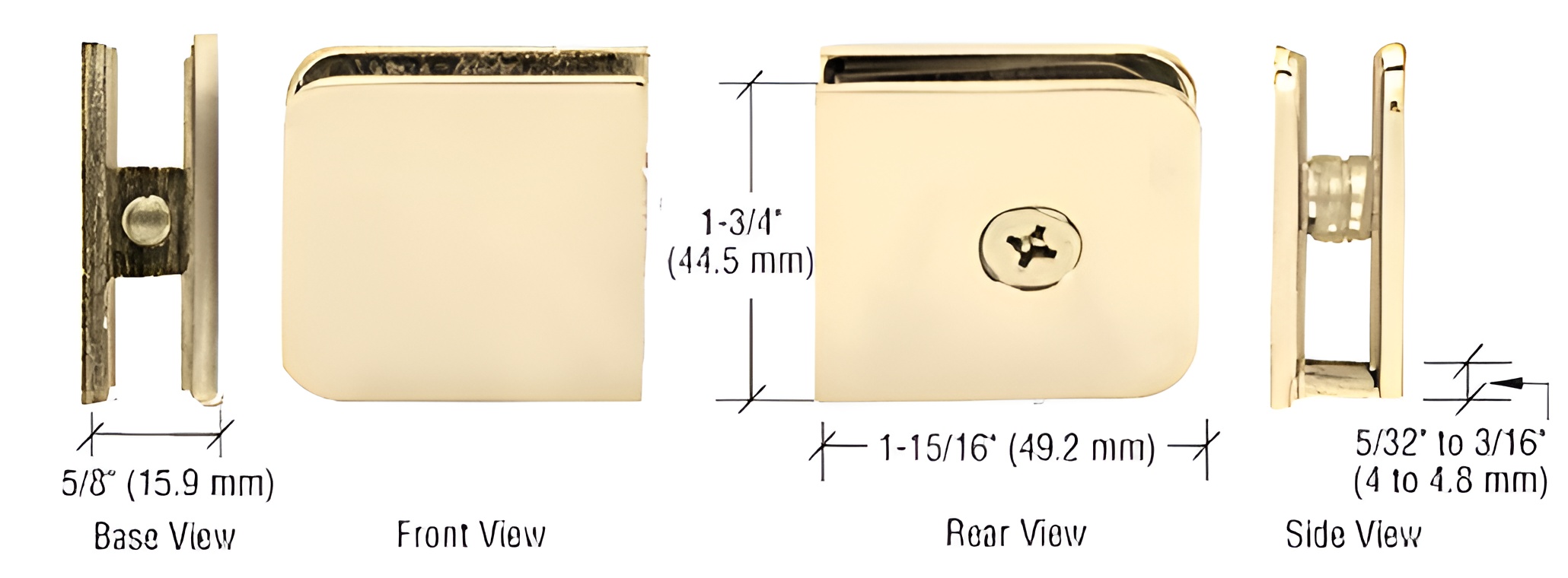

C.R. Laurence UC79BR Polished Brass Oversized Fixed Panel U-Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed specifically for use with 1/2" (12 mm) monolithic tempered glass, this clamp not only provides exceptional strength but also enhances the aesthetic appeal of your installation by promoting an 'all-glass' look, moving away from traditional U-channel systems. Crafted from solid brass, the UC79BR ensures durability and a polished finish that complements a variety of design styles. The glass fabrication required for installation involves drilling a hole with a diameter of 5/8" or 3/4" (16 or 19 mm), with a measurement from the glass edge to the hole edge being one and a half times the glass thickness. Each clamp comes complete with necessary mounting screws and a set of clear gaskets, with additional gaskets available for purchase. With dimensions of 1-15/16 inches in height and 1-3/4 inches in width, this wall-mounted clamp is ideal for both residential and commercial applications. Please note that while brass is a robust material, it is susceptible to oxidation, which may lead to a tarnished appearance over time. The UC79BR is a reliable choice for those looking to combine functionality with elegance in glass installations.

Polished Brass Oversized Fixed Panel U-Clamp

• Recommended When Using 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.

Brass Finish Advisory:
