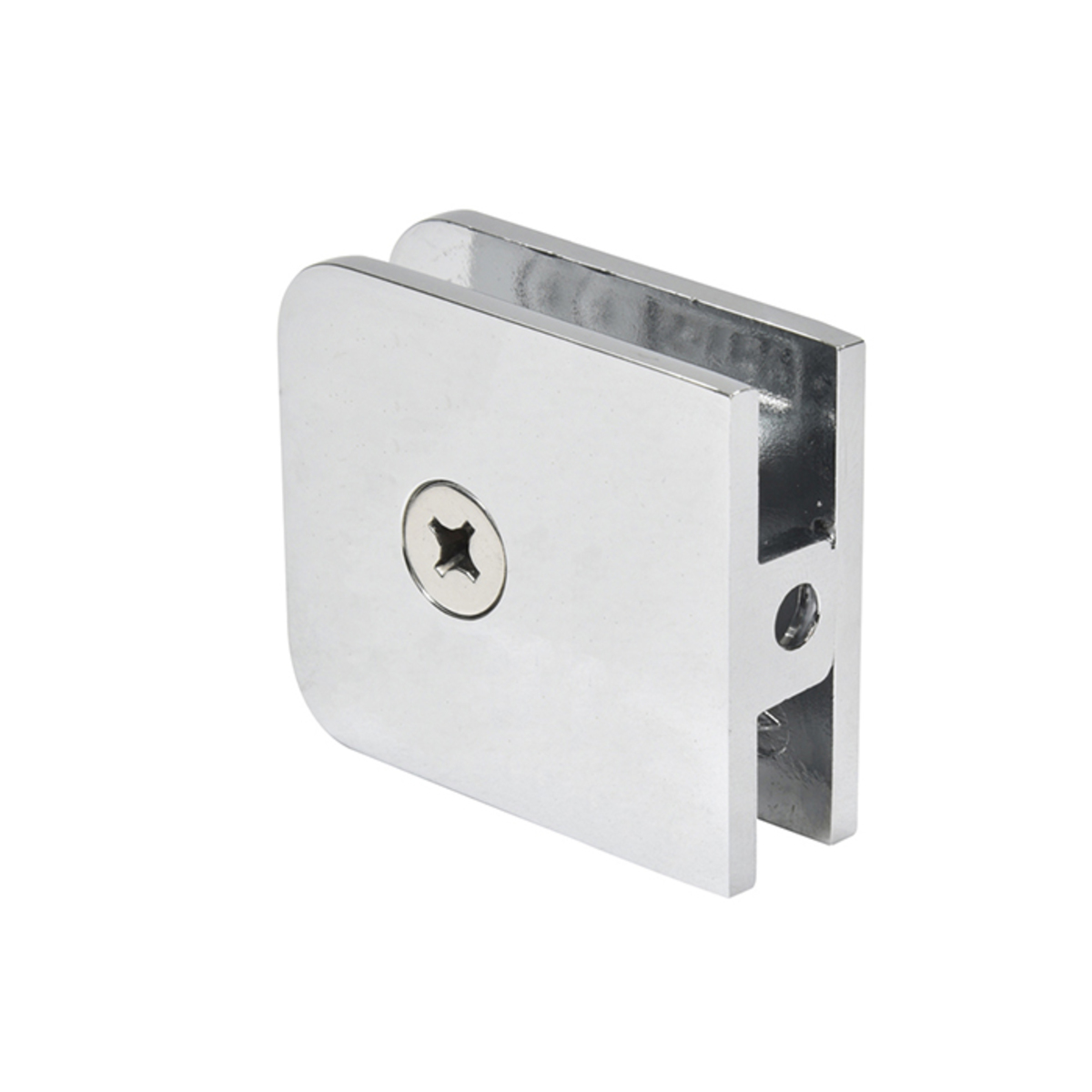

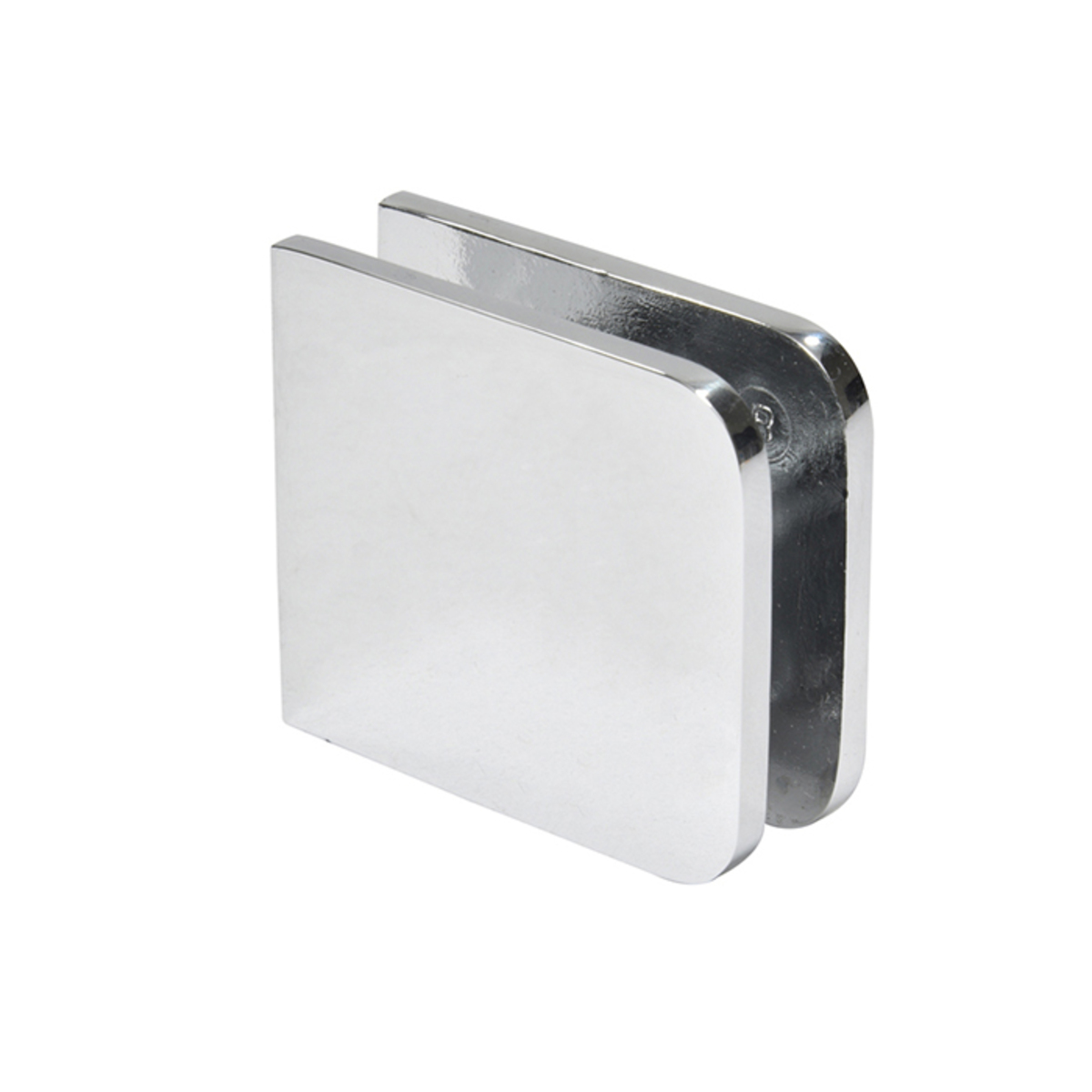

C.R. Laurence UC79CH Polished Chrome Oversized Fixed Panel U-Clamp is an essential component for modern frameless shower enclosures. Designed specifically for use with 1/2" (12 mm) monolithic tempered glass, this clamp secures fixed glass panels while enhancing the overall aesthetic with its sleek and polished chrome finish. The solid brass construction ensures durability and a premium look, making it a stylish alternative to traditional U-channel solutions. With a height of 1-15/16 inches (49 mm) and a width of 1-3/4 inches (44 mm), the UC79CH provides strength without compromising visual appeal. This clamp requires a hole drilling measurement that is one and a half times the glass thickness, ensuring secure and safe installation. Each unit includes appropriate mounting screws and a set of clear gaskets, with additional gaskets available for 5/16" (8 mm) glass. The versatility of this clamp supports glass thickness ranging from 5/16" to 1/2" (8 mm to 12 mm), making it suitable for various applications. Experience the perfect blend of functionality and elegance with the C.R. Laurence UC79CH, a reliable choice for building professionals and discerning homeowners alike.
Polished Chrome Oversized Fixed Panel U-Clamp
CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness ( from the edge of the glass to the closest edge of the hole) is required by the temperer.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

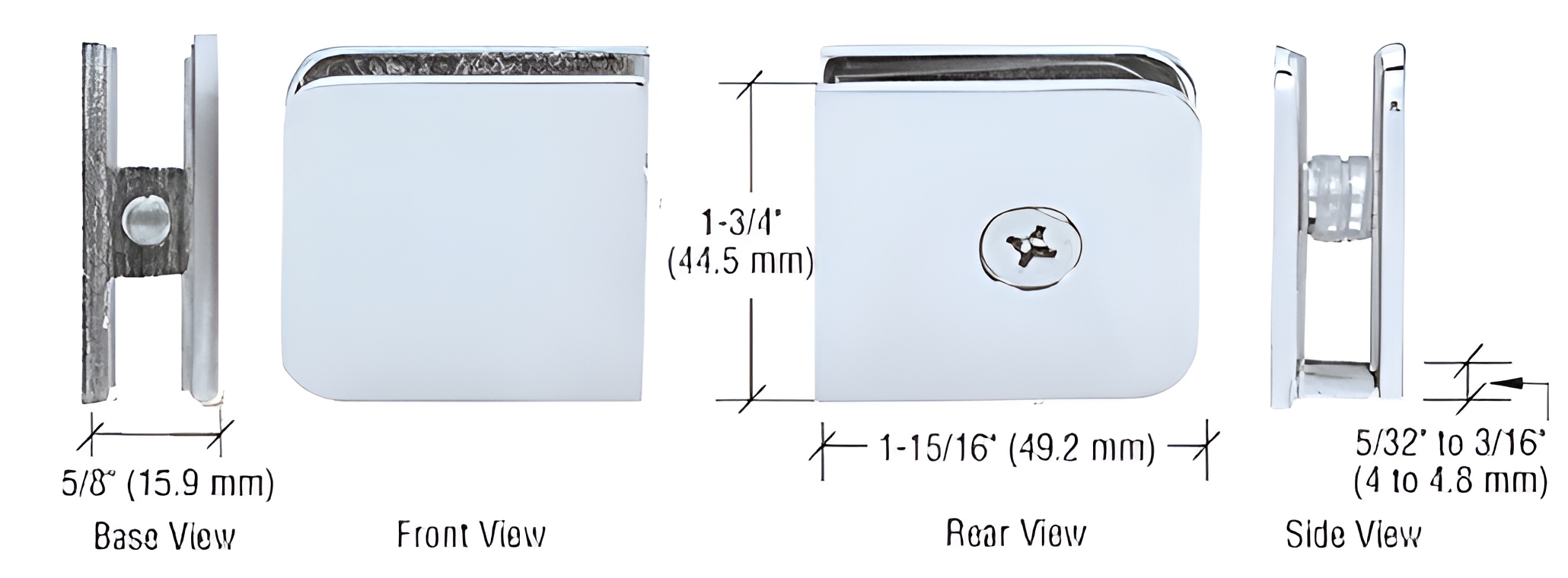

Height: 1-15/16 in. (49 mm)
Material: Brass
Mounting Type: Wall Mount
Shipping Limitations: None
Width: 1-3/4 in. (44 mm)
