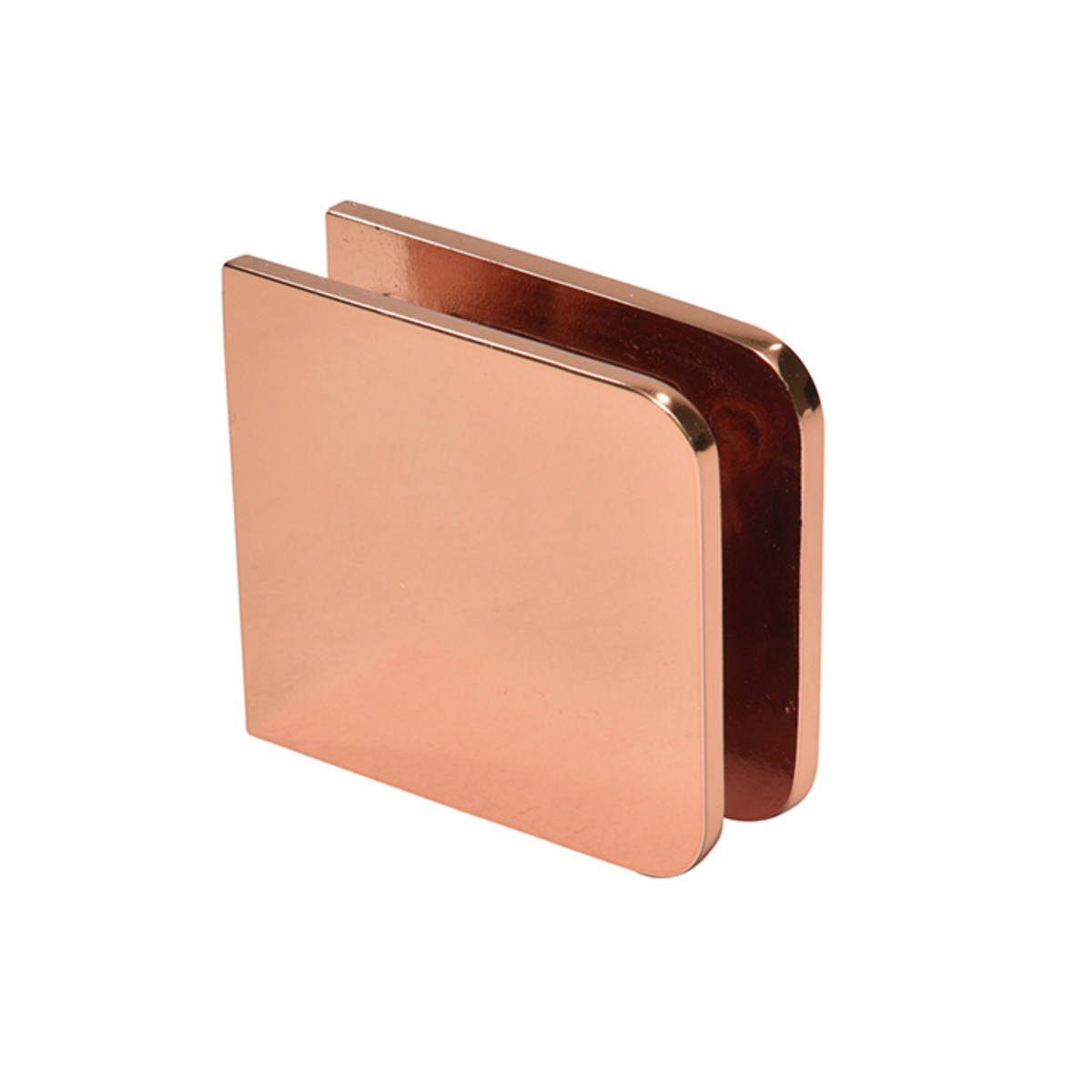

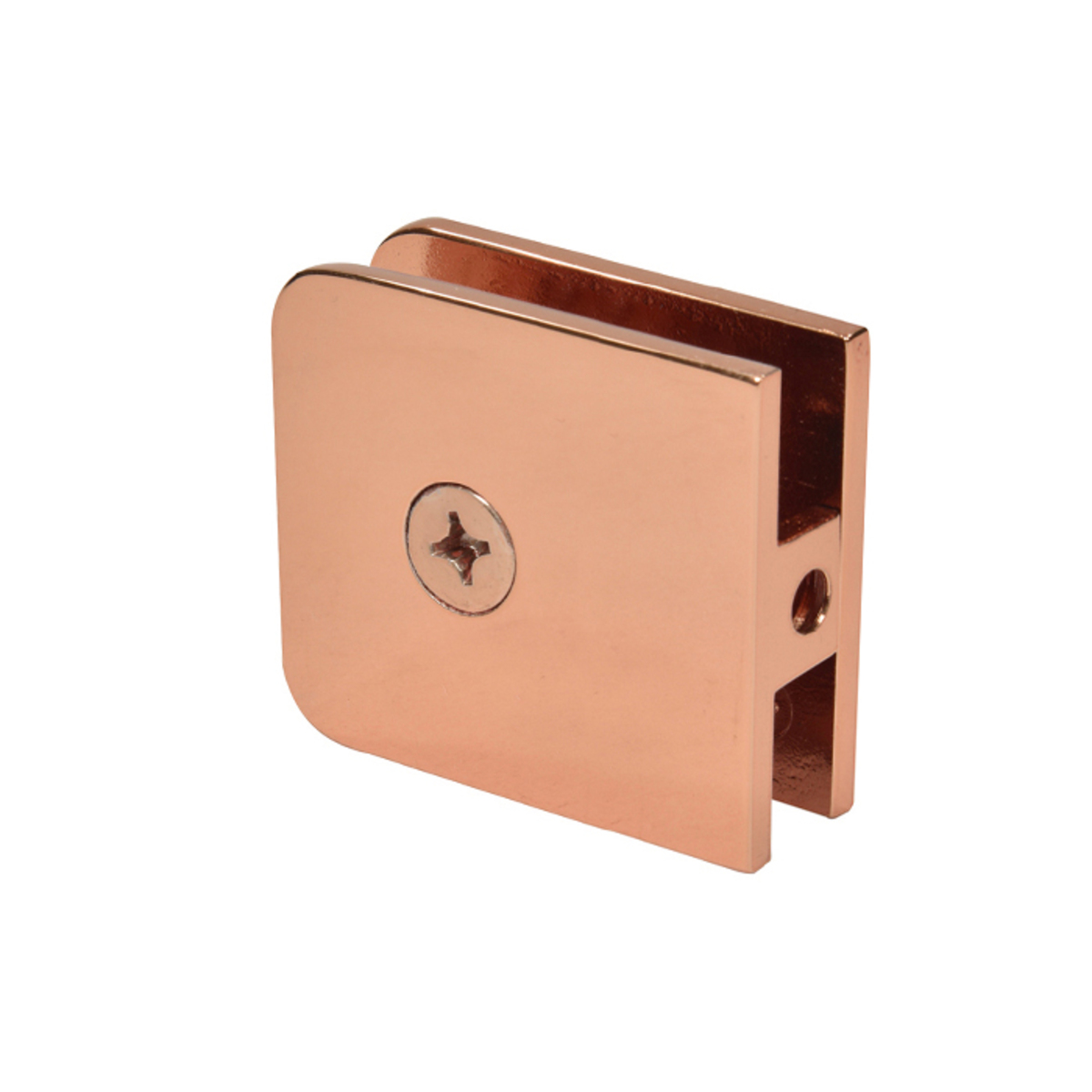

CRL UC79PC0 Polished Copper Oversized Fixed Panel U-Clamp

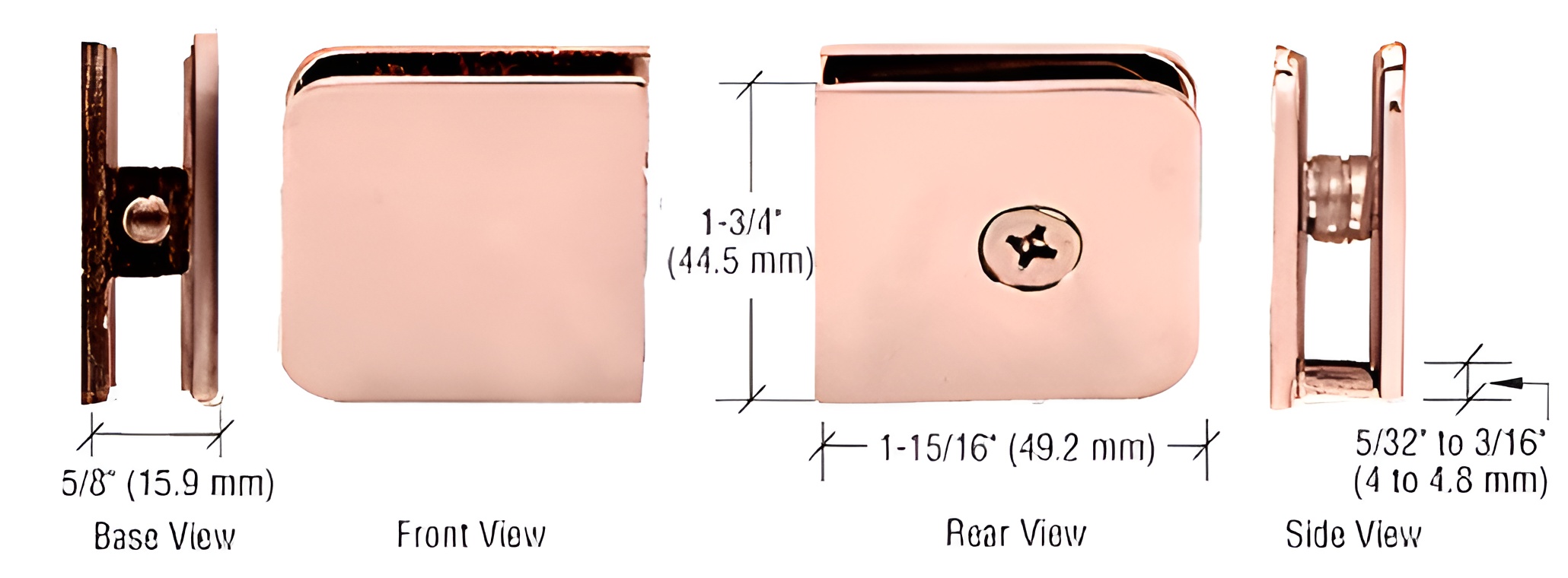

C.R. Laurence UC79PC0 Polished Copper Oversized Fixed Panel U-Clamp is an essential component for securing fixed glass panels in frameless shower enclosures. Designed specifically for 1/2" (12 mm) glass, this solid brass clamp offers a stylish alternative to traditional U-channel systems, enhancing the overall aesthetic with its 'all-glass' appearance. The U-Clamp requires a hole diameter of 5/8" or 3/4" (16 or 19 mm) to accommodate the glass fabrication, ensuring a seamless fit and optimal performance. With a height of 1-15/16" (49 mm) and a width of 1-3/4" (44 mm), it provides a robust and reliable hold while maintaining a sleek profile. Each clamp comes complete with appropriate mounting screws and a set of clear gaskets, with additional gaskets (Cat. No. UCG77) available separately for 5/16" (8 mm) glass. The Polished Copper finish adds a touch of elegance, making it ideal for modern bathroom designs. Compliance with safety standards ensures its suitability for various applications. Trust C.R. Laurence's expertise in architectural hardware for your next glazing project, where quality and design meet functionality.

Polished Copper Oversized Fixed Panel U-Clamp

• Recommended When Using 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.
