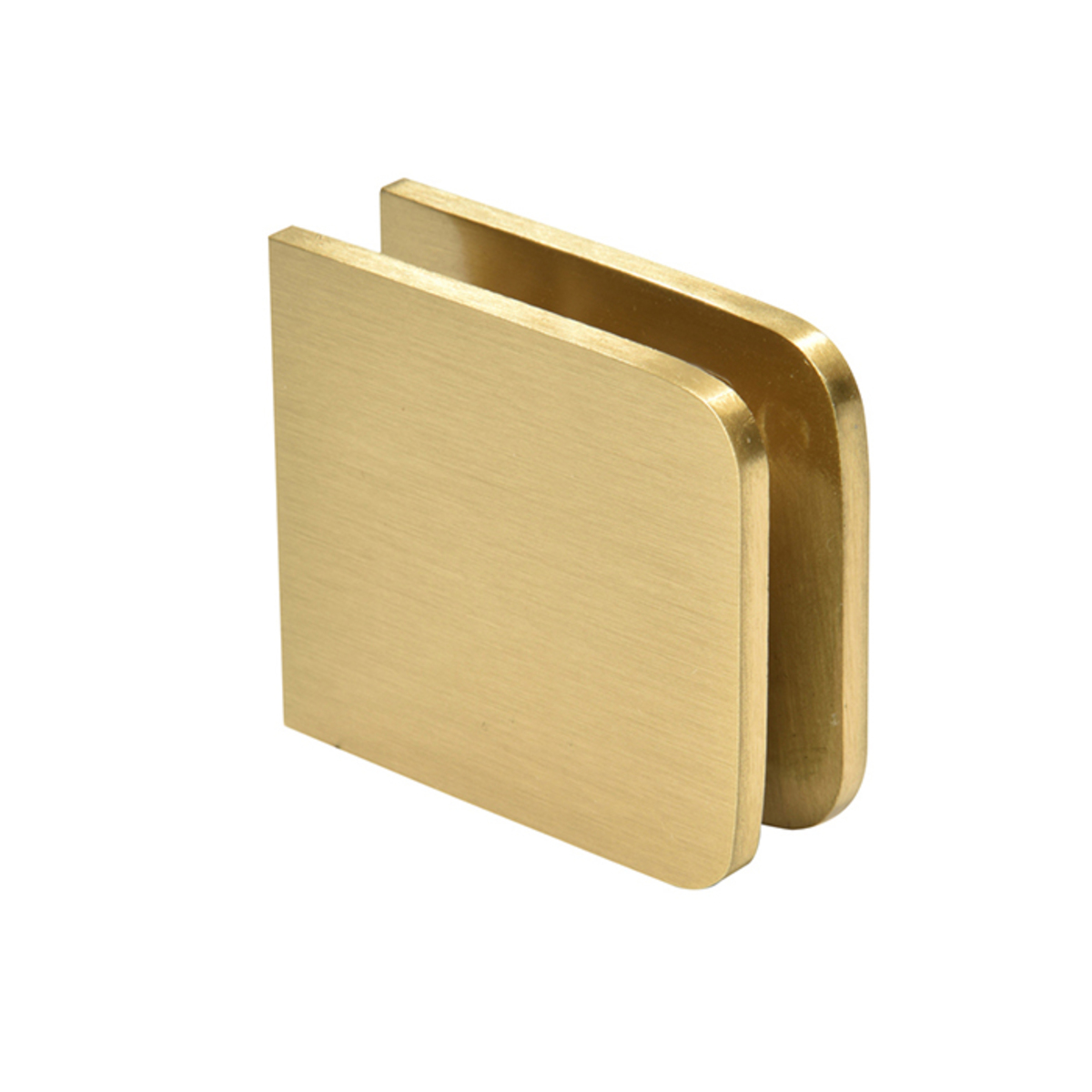

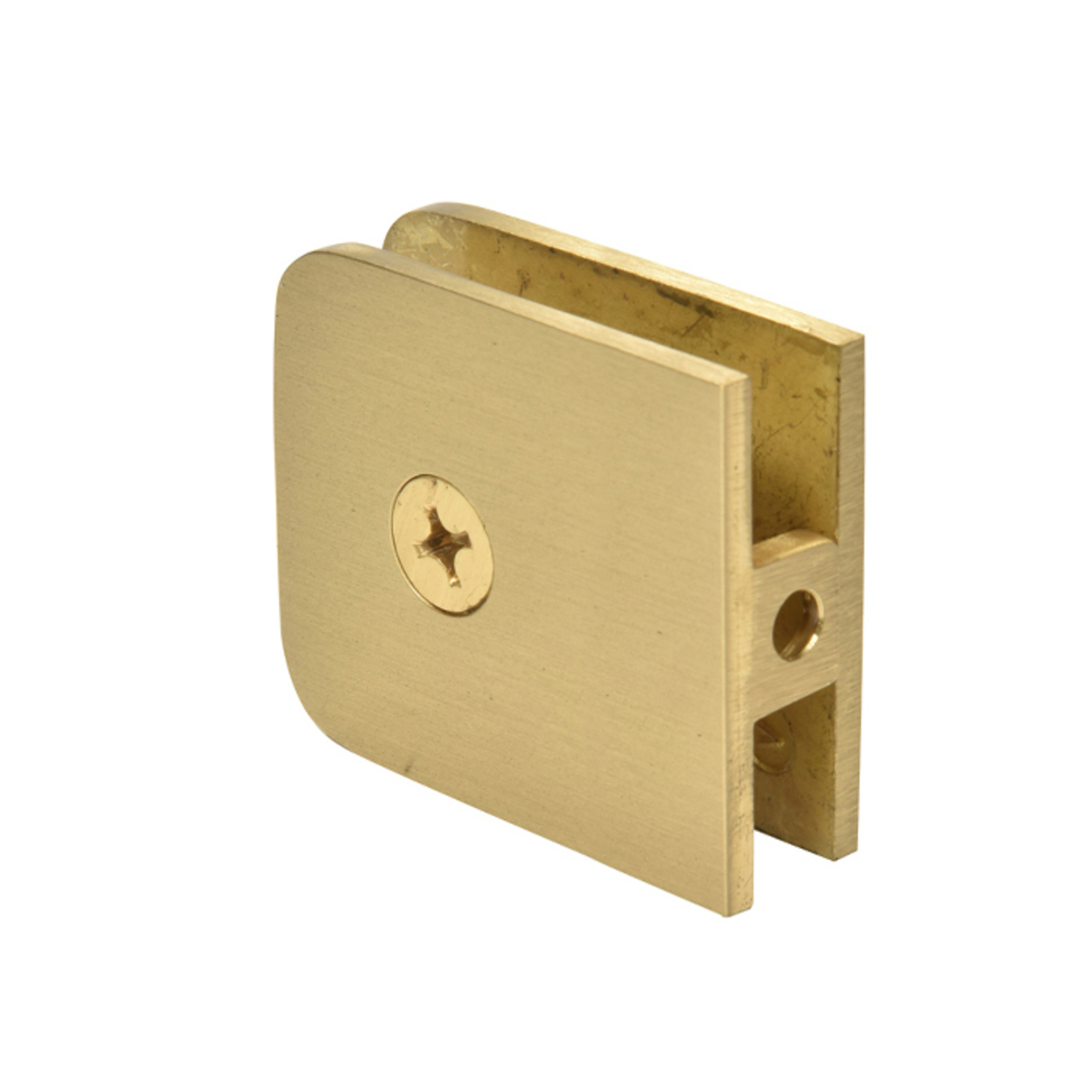

CRL UC79SB Satin Brass Oversized Fixed Panel U-Clamp

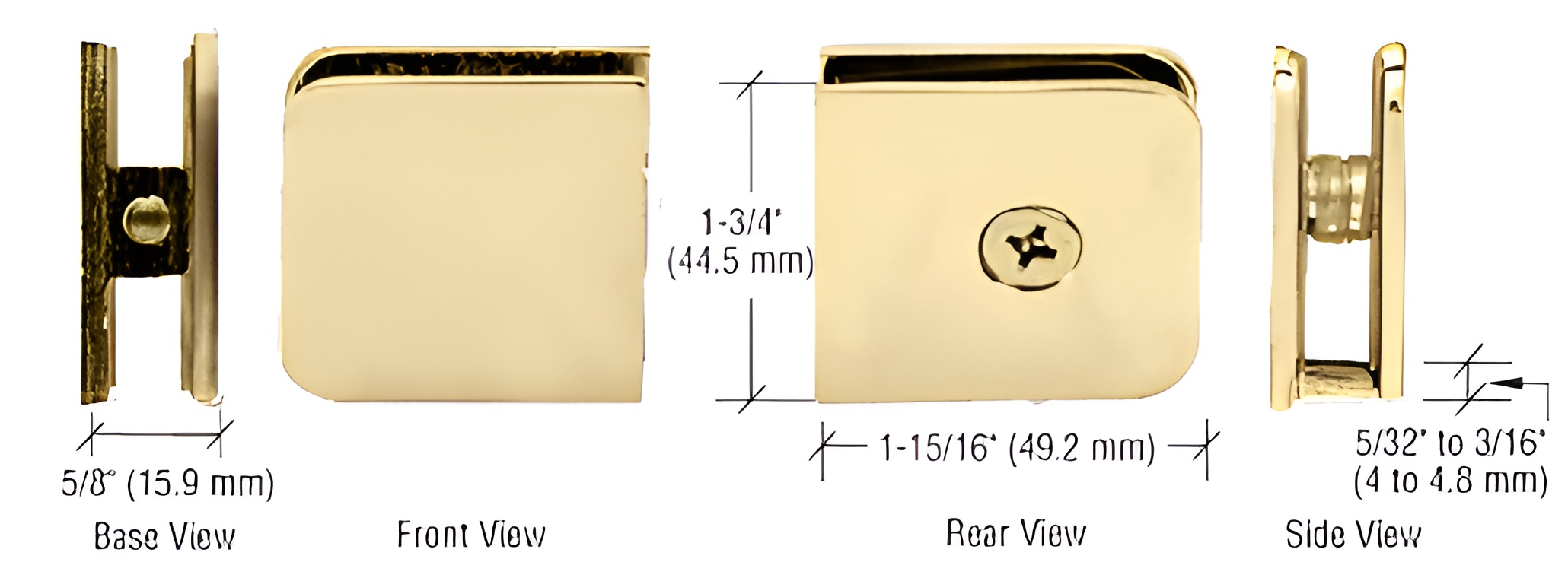

C.R. Laurence UC79SB Satin Brass Oversized Fixed Panel U-Clamp is the ideal solution for securing fixed glass panels in frameless shower enclosures. Designed for use with 1/2" (12 mm) monolithic tempered glass, this clamp offers a stylish and modern alternative to traditional U-Channel options, enhancing the frameless aesthetic of your installation. Constructed from solid brass, the UC79SB provides durability and a sophisticated satin brass finish that complements various design styles. The clamp requires glass fabrication to accommodate its design, ensuring a precise fit. With the necessary mounting screws and a set of clear gaskets included, installation is straightforward, while the gaskets help maintain a clean appearance. This oversized clamp supports glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm) and requires hole diameters of either 5/8" or 3/4" (16 or 19 mm). Standing at a height of 1-15/16" (49 mm) and a width of 1-3/4" (44 mm), it is engineered to deliver both functionality and style. For added convenience, additional clear gaskets (Cat. No. UCG77) can be ordered separately. Trust C.R. Laurence for quality products that elevate your glazing projects to the next level.

Satin Brass Oversized Fixed Panel U-Clamp

• Recommended When Using 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

CRL Oversized Fixed Panel U-Clamps perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of one and a half times glass thickness (from the edge of the glass to the closest edge of the hole) is required by the temperer.

Brass Finish Advisory:
