C.R. Laurence UV0264 Brushed Stainless Right Hand UV Designer Glass-to-Glass Hinge offers a sophisticated solution for both inset and overlay glass doors. Crafted from durable brushed stainless steel, this hinge not only enhances the aesthetic appeal of your glass installations but also ensures reliable performance. Designed for easy installation, the hinge accommodates a maximum glass thickness of 1/4" (6 mm) and can support a weight of up to 33 lbs. (15 kg) per pair. The versatility of the UV Designer Series Hinges allows them to be used on 'all-glass' cabinets or in conjunction with wood side panels, providing flexibility in design. The internal wood mounting plate ensures a secure fit, making it ideal for various applications. With a height of 2 inches (51 mm) and an overall width of 3-1/2 inches (89 mm), this hinge is compact yet robust enough to handle your architectural needs. It’s important to note that while stainless steel is corrosion-resistant, regular maintenance is recommended to preserve its factory finish. For those looking to combine form and function in their glass installations, the C.R. Laurence UV0264 is a dependable choice that balances style with structural integrity.
Brushed Stainless Right Hand UV Designer Glass-to-Glass Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/4
Handing: Left Hand

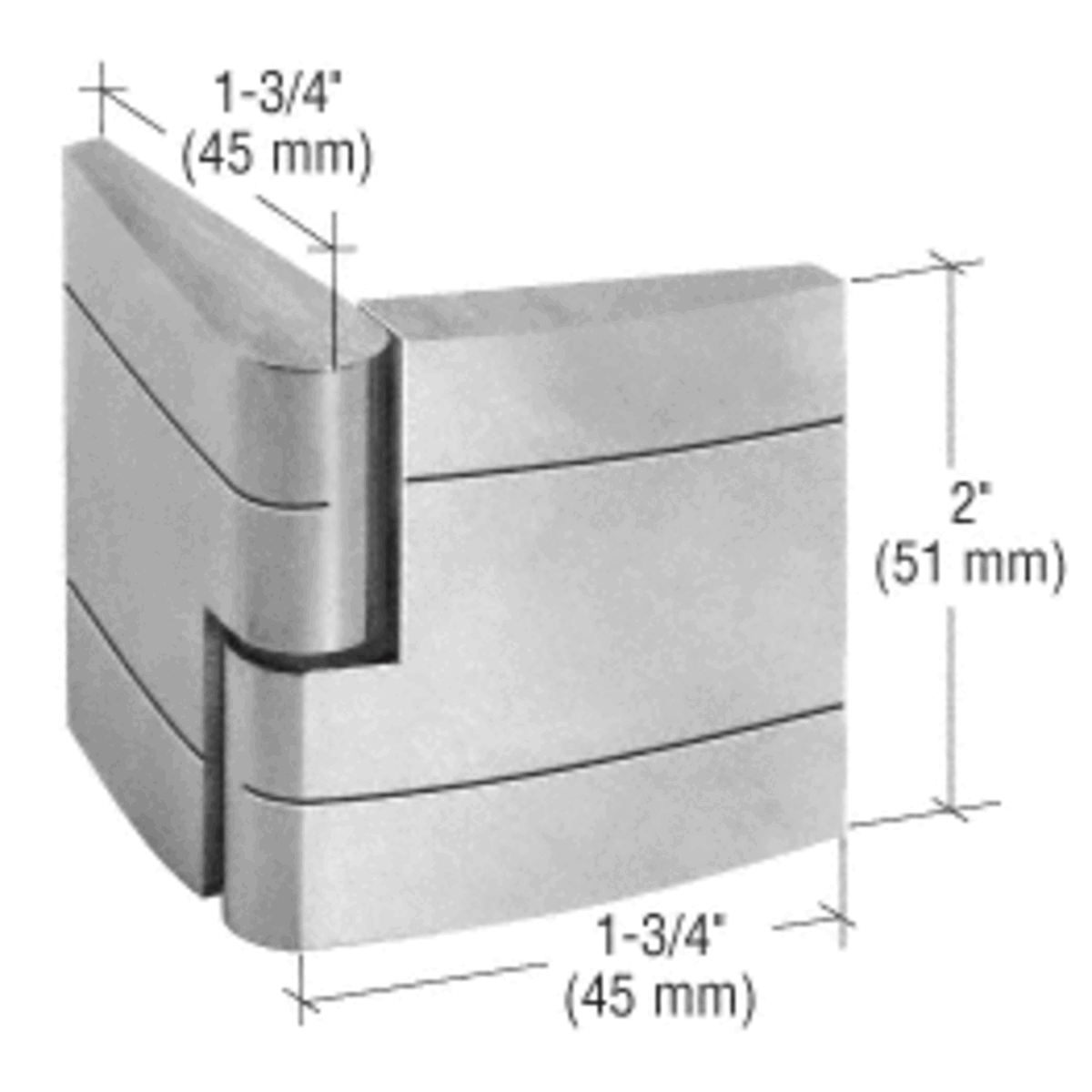

Height: 2 in. (51 mm)
Maximum Weight Capacity: 33 lbs.(15 kg)
Overall Width: 3-1/2 in. (89 mm)
Shipping Limitations: None
Wing Width: 1-3/4 in. (44 mm)
Wrist Circumference: 1/4 in. (6 mm)
