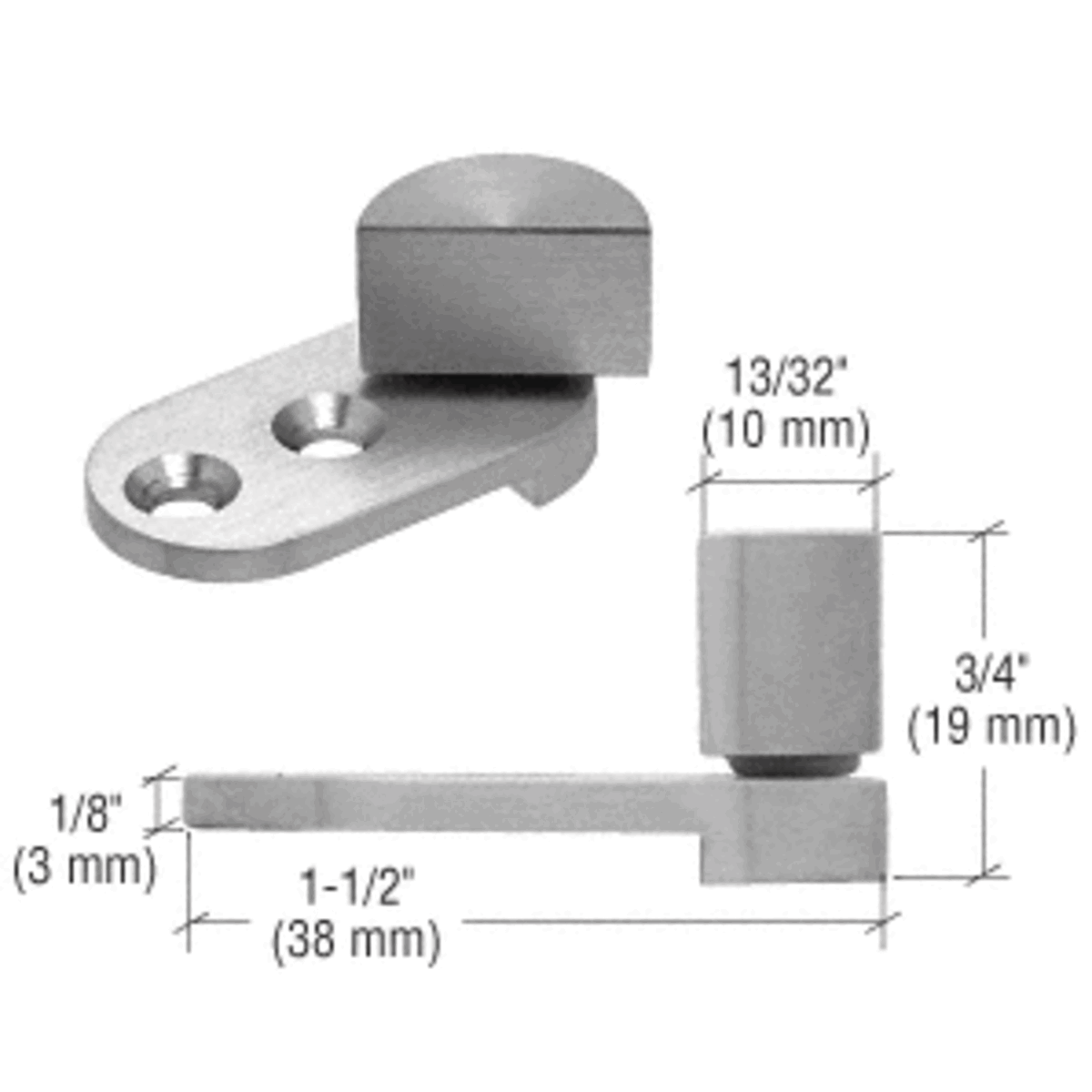

C.R. Laurence UV6262 Small Brushed Stainless UV Glass-to-Wood Swing Hinge offers an elegant solution for installing inset glass doors within wood cabinet frames. Designed to accommodate glass thicknesses up to 1/2" (12 mm), these hinges provide a robust weight capacity of 22 lbs. (10 kg), ensuring reliable performance for your cabinetry. Crafted from brushed stainless steel, the UV6262 hinges not only enhance the aesthetic appeal but also reflect durability and resistance to corrosion. The innovative design features a threaded pin in the bottom hinge, facilitating easy installation and removal after glass bonding, making it ideal for professional use. This product requires a 3/8" total height glass deduction, with a 3/16" reduction on each side, allowing for precise fitting. The overall dimensions include a height of 3/4" (19 mm) and a width of 1-1/2" (38 mm), with a profile classed as small. The hinges come as a pair (top and bottom) and are shipped via UPS, ensuring prompt delivery. For optimal maintenance, periodic care is recommended to preserve the factory finish of the stainless steel. Make a lasting impression with the reliability and style of C.R. Laurence’s UV6262 hinges, perfect for any cabinetry project.
Small Brushed Stainless UV Glass-to-Wood Swing Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Height: 3/4 in. (19 mm)
Material: Stainless Steel
Maximum Weight Capacity: 22 lbs. (10 kg)
Overall Width: 1-1/2 in. (38 mm)
Profile: Small
Shipping Limitations: None
Width: 13/32 in. (10 mm)
