CRL V1E0370RB Oil Rubbed Bronze Vienna 037 Wall Mount Full Back Plate Hinge

CRL V1E0370RB Oil Rubbed Bronze Vienna 037 Wall Mount Full Back Plate Hinge

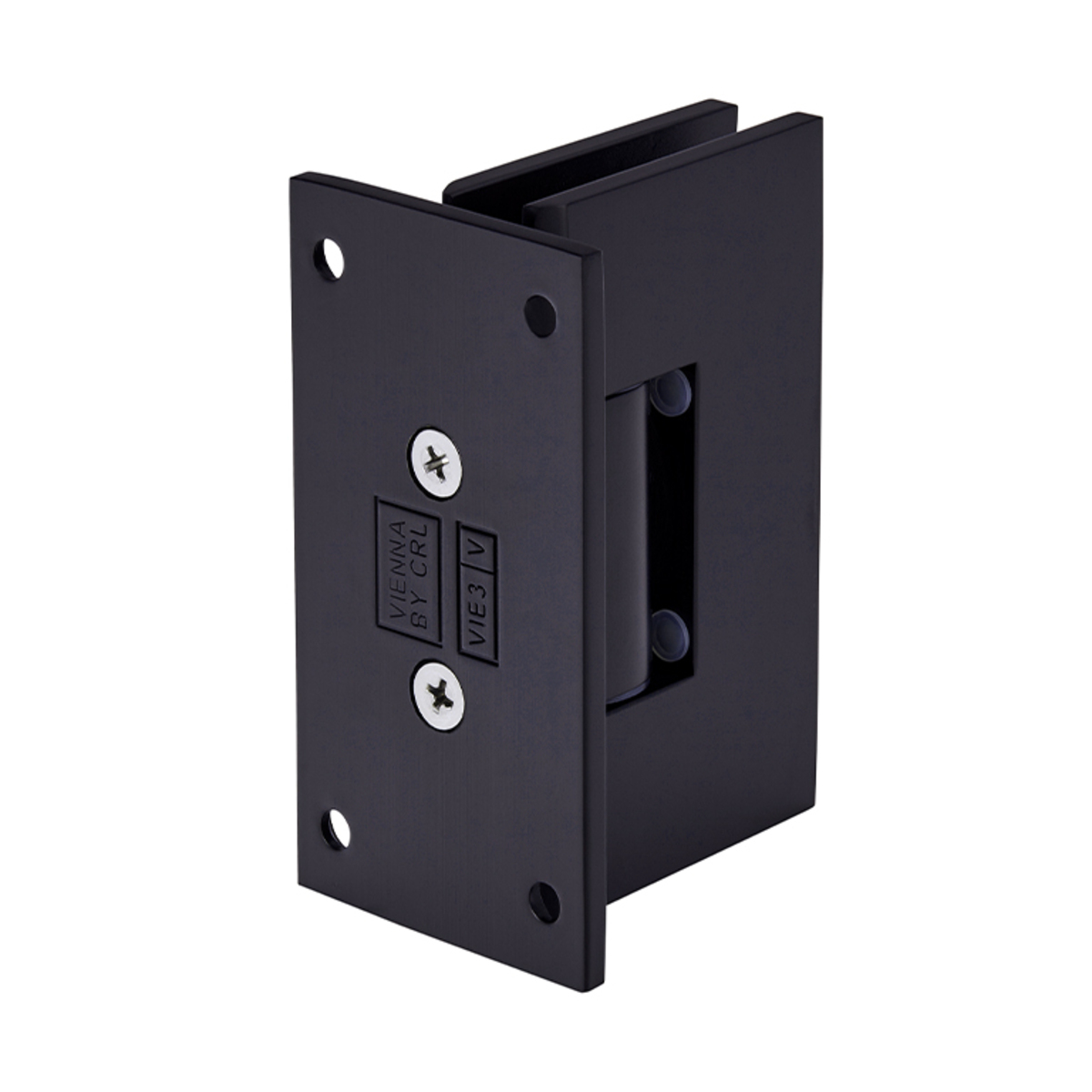

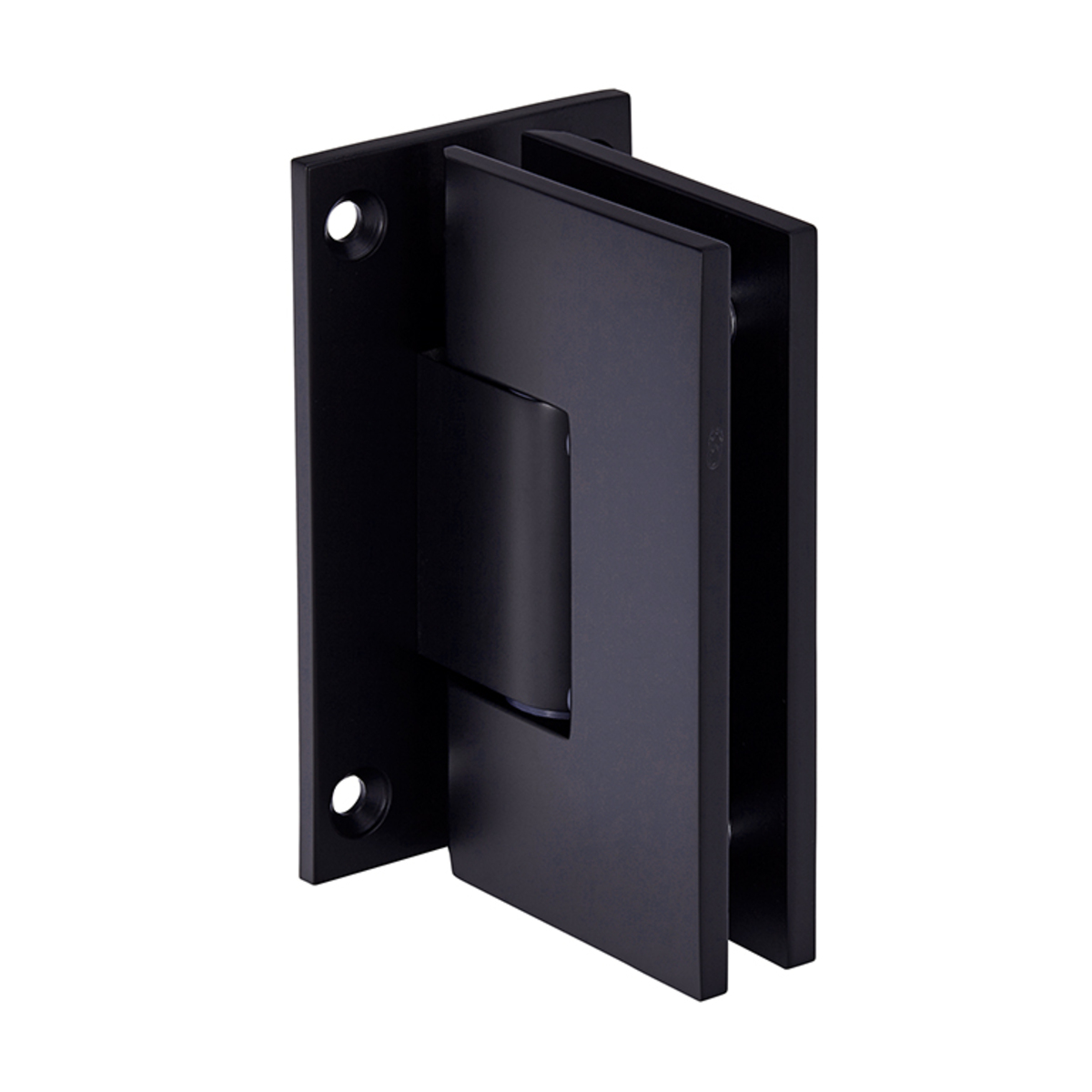

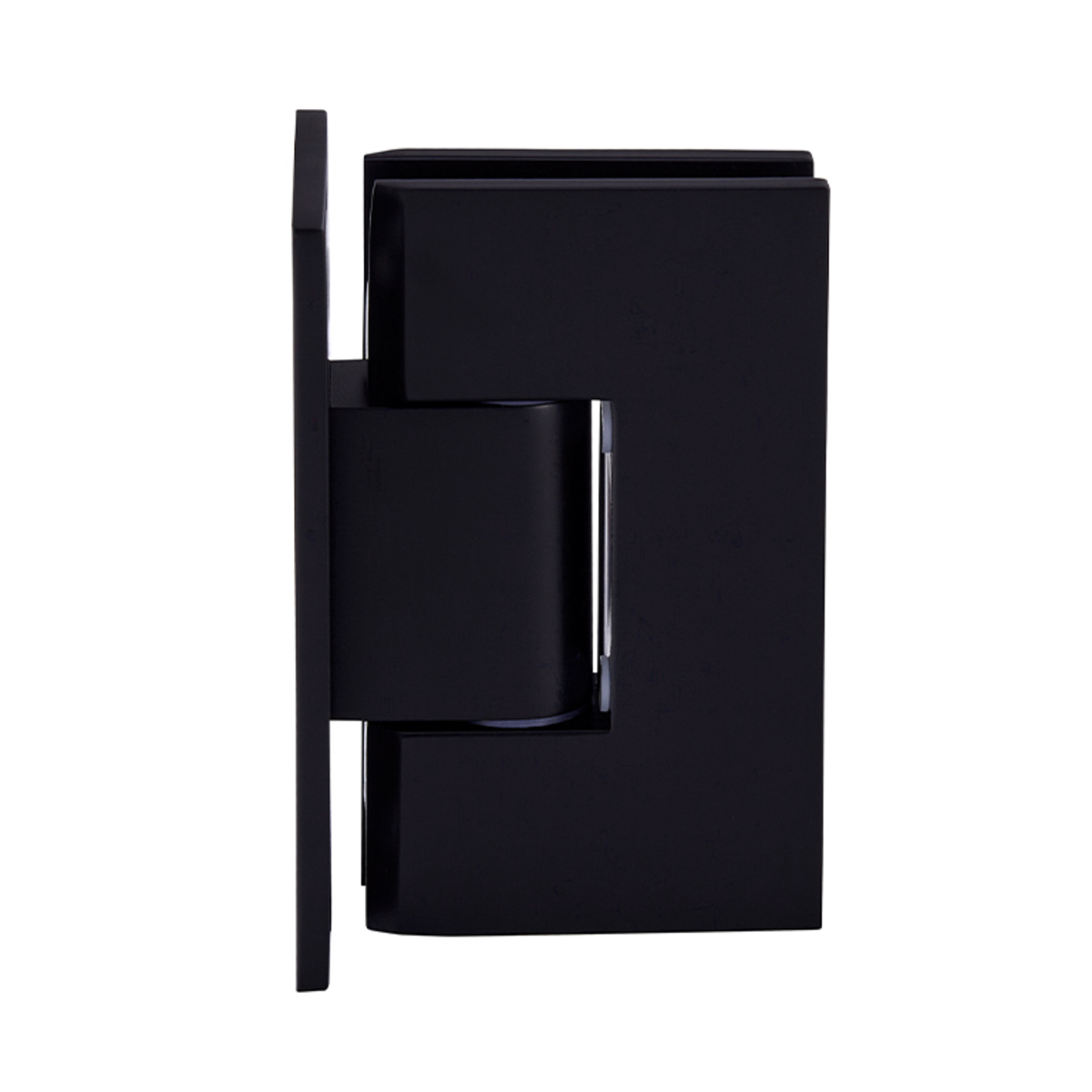

C.R. Laurence V1E0370RB Oil Rubbed Bronze Vienna 037 Series Wall Mount Full Back Plate Hinge provides robust support for heavier and wider glass doors, accommodating 3/8" to 1/2" (10 to 12 mm) tempered safety glass. This self-centering hinge features a reversible 5-degree pivot pin, allowing flexibility in door positioning for ideal closure. Designed with two steel pins for mounting options, it offers the choice of using CRL's "mouse-ears" cut-out or standard rectangular cut-outs for added versatility. Constructed from solid brass, this hinge is not only durable but also aesthetically pleasing, available in several beautiful finishes, including the elegant oil-rubbed bronze. The hinge is pre-set for a standard closing position, but can be customized for off-angle installations if needed, with options up to 45 degrees. With a maximum door weight capacity of 110 lbs (50 kg) using two hinges and 140 lbs (63 kg) with three, it is ideal for various shower enclosures, including corner, niche, and bathtub designs. Each package includes gaskets, screws, and glass fabrication dimensions, ensuring a complete installation. Backed by a 3-year warranty, the Vienna hinge is a reliable choice for both residential and hotel applications.

Oil Rubbed Bronze Vienna 037 Series Wall Mount Full Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.


STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• V1E037 Detailed CAD Drawings.dwg
• V1E037 Detailed CAD Drawings.pdf
• V1E037 Template
